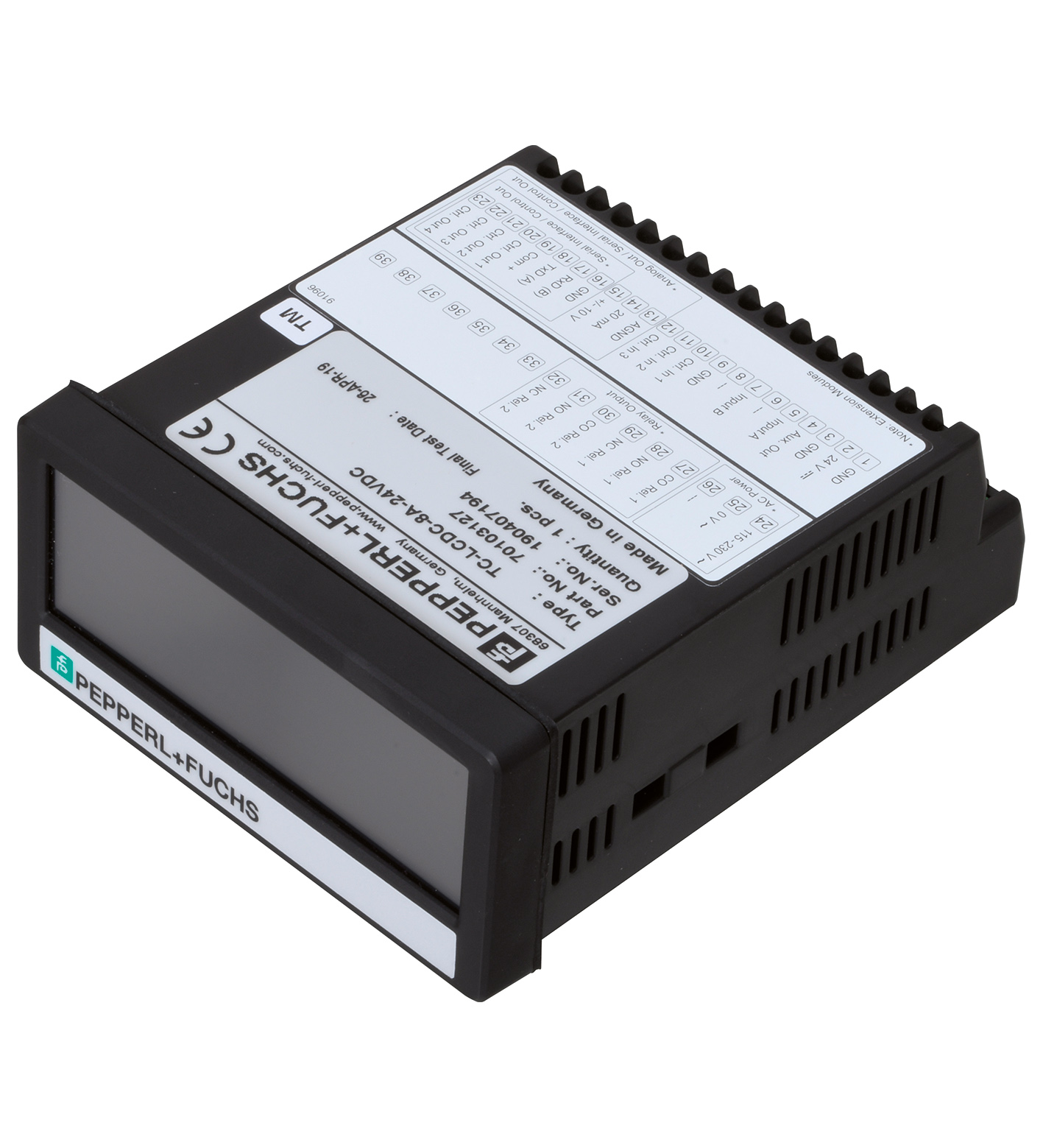

TC-LCDC-8A-24VDC

Counter/Timer/Tachometer. Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display,...

Counter/Timer/Tachometer. Multifunction device with operating modes such as rev counter, other counters, throughput time display, position display, timer for runtimes, stopwatch, and process display, HTL inputs for encoders and sensors with NPN, PNP and NAMUR characteristics, Bright, high-contrast display with event-dependent color versions, Emulation of a seven-segment display with symbols and units, Auxiliary voltage output 5/24 V DC for encoder supply, Operating voltage: 18 ... 30 V DC. Type: Graphic LCD display with background lighting. Number of digits: 8. Display value: digit height 13 mm. Display: . Touch screen technologyresistiveColorsCapability to switch between red, green, and yellow: . Touch screen technology: resistive. Colors: Capability to switch between red, green, and yellow. Display interval: -99999999 ... 99999999. Accuracy: Measurement: ± 50 ppm, ± 1 digit. Fusing: External: T 0.1 A. Operating voltage: 18 ... 30 V DC. Operating current: approx. 100 mA (Unladen). Supply: Rotary encoder: 24 V DC (approx. 1 V less than UB) Max. 250 mA. Interface type: Serial RS-232. Transfer rate: 9600, 19200, or 38400 baud. Input type: Incremental PNP, NPN, NAMUR, or Tri-State. Input format: HTL (low: 0…3 V, high: 9…30 V). Connection: Two spurs: A, B. Input frequency: max. 250 kHz. Load current: Max. 6 mA/Ri > 5 kΩ / 470 pF. Input type: 3 x Control input. Input format: HTL, PNP (low: 0 V … 3 V, high: 9 V … 30 V). Input frequency: max. 10 kHz. Load current: Max. 2 mA/Ri > 15 kΩ/470 pF. Number/Type: Analog output Configurable as Current or voltage output. Current: 0/4 mA … 20 mA (Max. load: 270 Ω). Voltage: -10 ... 10 V (Max. 2 mA). Resolution: 16 bit ± 0.1 % at 0 °C … 45 °C± 0.15 % at -20 °C … 0 °C und 45 °C … 60 °C. Response time: < 150 ms. Output type: 4 x Control output. Output format: PNP. Output voltage: 5 V … 30 V (Depending on voltage at COM+). Output current: max. 200 mA. Response time: < 1 ms. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 EN 55011:2016+A1:2017+A11:2020: . Directive 2014/30/EU: EN 61326-1:2013 EN 55011:2016+A1:2017+A11:2020. Low voltage: . Directive 2014/35/EUEN 61010-1:2010+A1:2019 EN 61010-2-201:2018: . Directive 2014/35/EU: EN 61010-1:2010+A1:2019 EN 61010-2-201:2018. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Degree of protection: IP65 (front) IP20 (Connection side). Connection: screw terminals 1.5 mm², AWG 16. Material: . HousingABS, UL 94 V-0: . Housing: ABS, UL 94 V-0. Installation: Panel mount Cutout W x H: 91 x 43 mm. Mass: approx. 200 g. Dimensions: . Height48 mmWidth96 mmDepth116 mm: . Height: 48 mm. Width: 96 mm. Depth: 116 mm

Brand	Pepperl Fuchs
Lifecycle status	active
