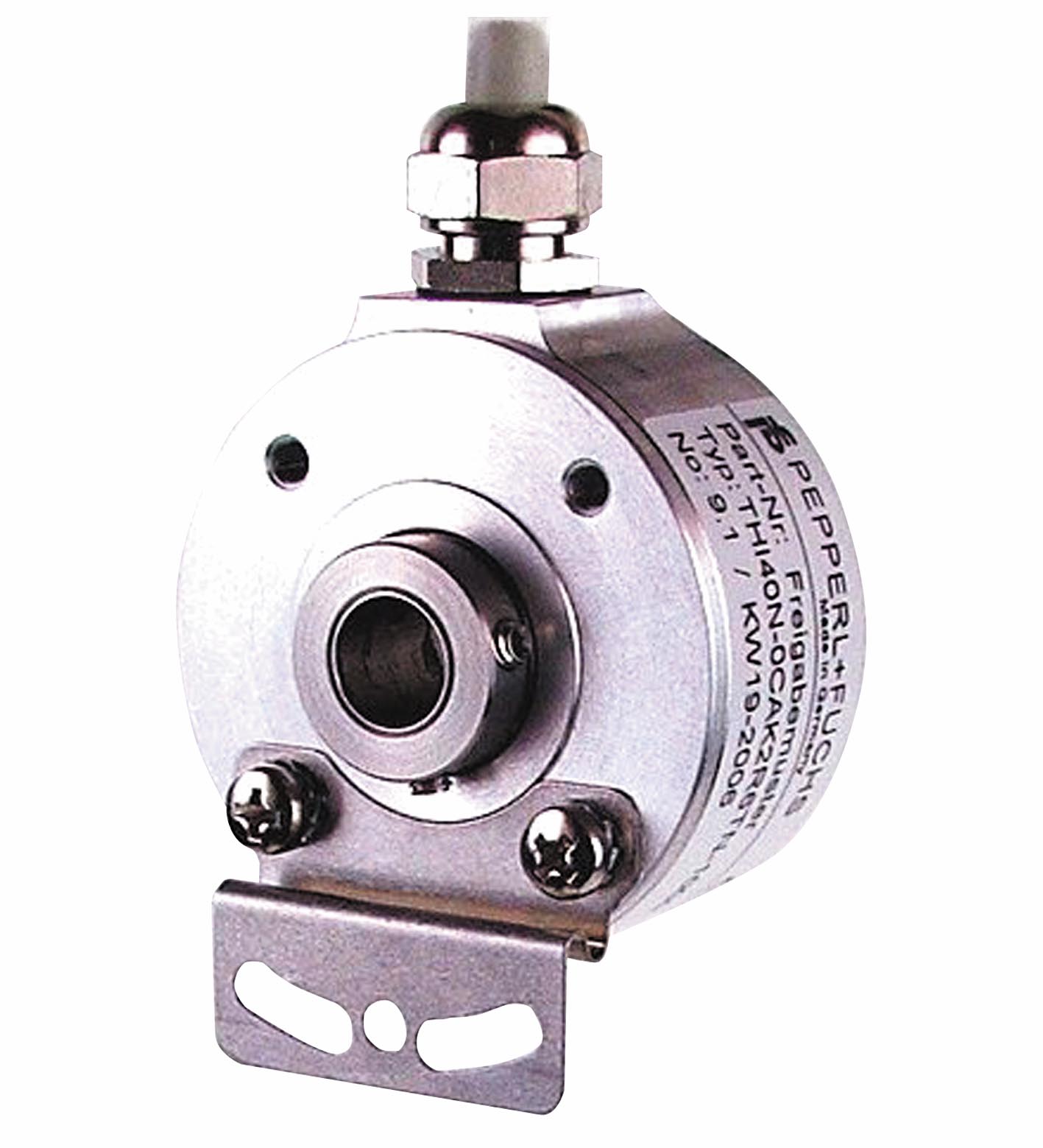

THI40P-1CAK2R6TN-01024

Incremental rotary encoder. Compact design, 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, Degree of protection IP65, Enclosure type: 40 mm, Type of shaft: Hollow shaft, Interfac...

Incremental rotary encoder. Compact design, 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, Degree of protection IP65, Enclosure type: 40 mm, Type of shaft: Hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental. Detection type: photoelectric sampling. Pulse count: 1024. Operating voltage: 4.75 ... 30 V DC. No-load supply current: max. 55 mA. Output type: push-pull, incremental. Voltage drop: ≤ 2.5 V. Load current: max. per channel 30 mA , short-circuit protected. Output frequency: max. 100 kHz. Rise time: 980 ns. De-energized delay: 980 ns. Cable: ∅5 mm, 8 x 0.08 mm2, 2 m. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007/A1:2011. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source. Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Operating temperature: -10 ... 60 °C (14 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Material: . HousingAluminumFlangeAluminumShaftStainless steel: . Housing: Aluminum. Flange: Aluminum. Shaft: Stainless steel. Mass: approx. 160 g. Rotational speed: max. 6000 min -1. Moment of inertia: ≤ 5 gcm2. Starting torque: ≤ 1 Ncm. Dimensions: . Length20.7 mmDiameter40 mm: . Length: 20.7 mm. Diameter: 40 mm

Brand	Pepperl Fuchs
Lifecycle status	active
