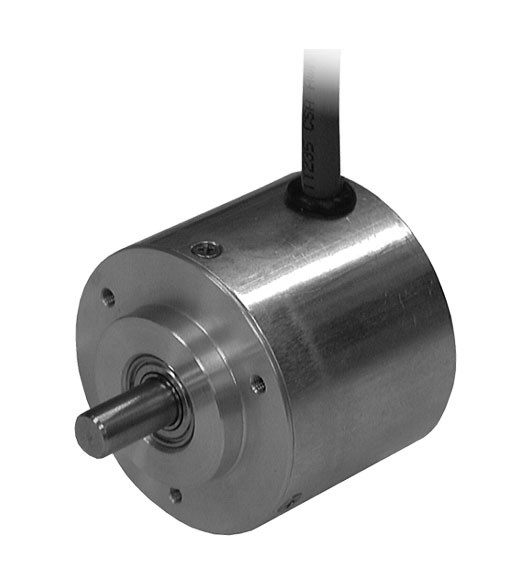

TVI50N-09BK0**T

Incremental rotary encoder. Sturdy and compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Enclosure type: 50 mm, Type of...

Incremental rotary encoder. Sturdy and compact design, Up to 1024 ppr, 4.75 V ... 30 V with short-circuit proof push-pull output, RS 422 functionality at 5 V operation, Enclosure type: 50 mm, Type of shaft: Solid shaft, Interface: push-pull, incremental or RS-422, incremental, Detection type: photoelectric sampling, Output type: push-pull, incremental or RS-422, incremental. Detection type: photoelectric sampling. Pulse count: max. 1024. Operating voltage: 4.75 ... 30 V DC 5 V DC for RS-422. No-load supply current: max. 55 mA. Output type: push-pull, incremental or RS-422, incremental. Voltage drop: ≤ 2.5 V (< 2.5 V). Load current: max. per channel 30 mA , short-circuit protected (max. per channel 20 mA, conditionally short-circuit proof). Output frequency: max. 100 kHz (max. 100 kHz). Rise time: 980 ns (225 ns). De-energized delay: 980 ns (225 ns). Cable: ∅6 mm, 8 x 0.128 mm2, 0.5 m. Degree of protection: DIN EN 60529, IP40, IP54. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. UL approval: cULus Listed, General Purpose, Class 2 Power Source. Maximum permissible ambient temperaturemax. 60 °C (max. 140 °F): . Maximum permissible ambient temperature: max. 60 °C (max. 140 °F). Operating temperature: -10 ... 70 °C (14 ... 158 °F). Storage temperature: -40 ... 80 °C (-40 ... 176 °F). Material: . Housingaluminum, blankFlange3.1645 aluminumShaftStainless steel 1.4305 / AISI 303: . Housing: aluminum, blank. Flange: 3.1645 aluminum. Shaft: Stainless steel 1.4305 / AISI 303. Mass: approx. 220 g. Rotational speed: max. 6000 min -1. Moment of inertia: ≤ 5 gcm2. Starting torque: ≤ 0.5 Ncm. Shaft load: . Axial20 NRadial40 N: . Axial: 20 N. Radial: 40 N. Dimensions: . Length44 mmDiameter50 mm: . Length: 44 mm. Diameter: 50 mm

Brand	Pepperl Fuchs
Lifecycle status	active
