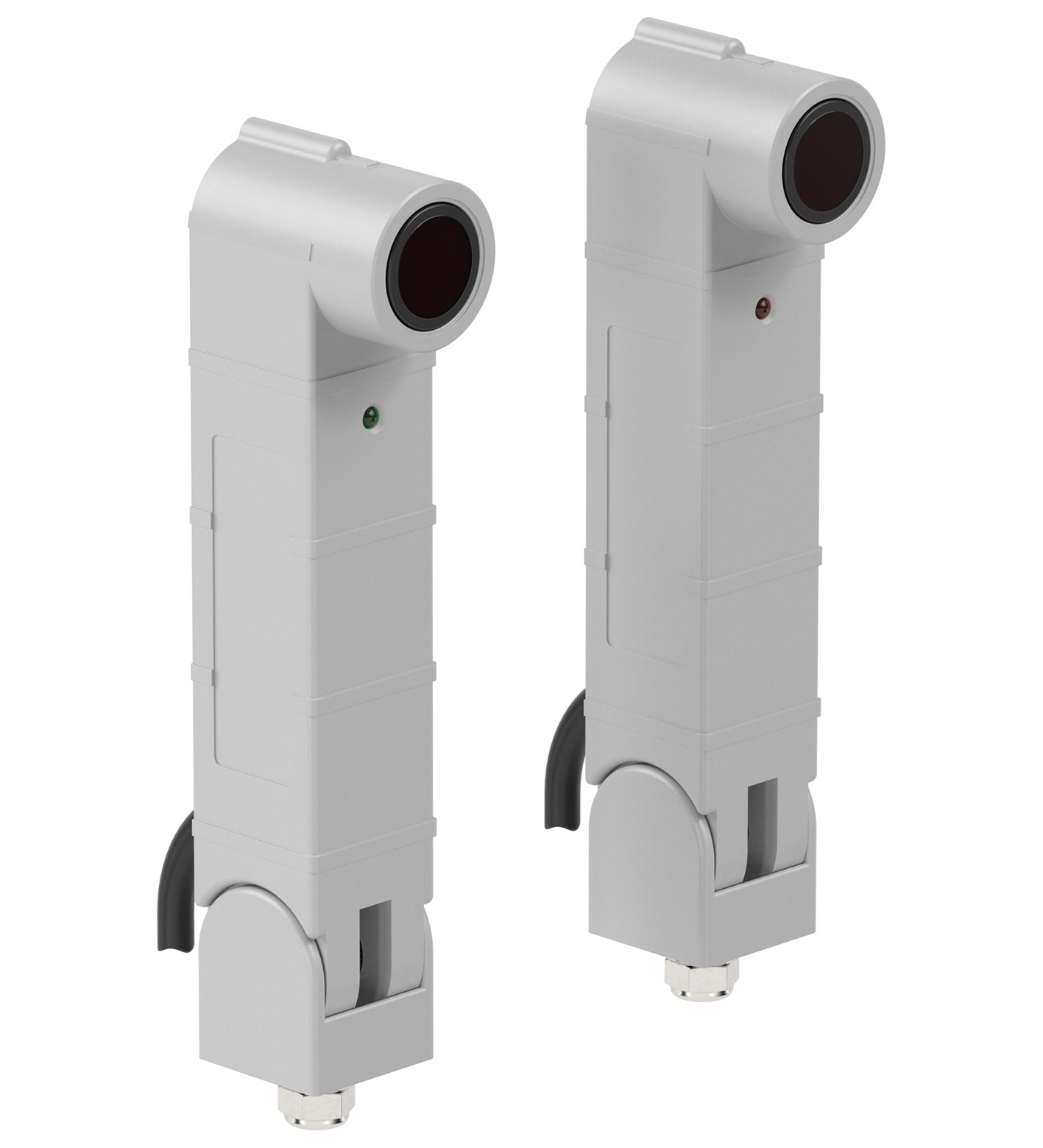

TWIN-PRO-20M-OSE-13m-SET
Safety thru-beam sensor. Sturdy housing, Sensing range 20 m, Sleek design, Simple alignment, Indicator LED on the front, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: 10 ......
Safety thru-beam sensor. Sturdy housing, Sensing range 20 m, Sleek design, Simple alignment, Indicator LED on the front, Function: Secure, Sensor principle: Thru-beam sensor, Operating voltage: 10 ... 24 V DC, Output type: OSE, Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected, Connection: fixed black cable <BR>Emitter: 0.14 mm2 , 3 conductor <BR>Receiver: 0.14 mm2 , 3 conductor. Emitter: TWIN-SAFE-T. Receiver: TWIN-SAFE-R. Effective detection range: 1 ... 20 m. Threshold detection range: 28 m. Number of protective field beams: 1. Light source: IRED. Light type: modulated infrared light 850 nm. Safety type according to IEC/EN 61496: 2. Marking: CE. Diameter of the light spot: approx. 1.1 m at a distance of 20 m. Opening angle: ± 5 °. Optical face: frontal. Ambient light limit: 100000 Lux. Operation indicator: Receiver: LED green. Function indicator: emitter LED red: lit when the light beam is interrupted LED green: lights up when light beam is free. Stability alarm indicator: Emitter: flashing red/green. Operating voltage: 10 ... 24 V DC. Operating current: Emitter: 20 mA Receiver: 20 mA. Output type: OSE. Switching type: light-on. Signal output: 900 Hz , transistor output loadable with max. 20 mA, short-circuit protected. Switching voltage: max. 50 V AC/DC. Switching current: max. 0.6 A. Energized/De-energized delay: typ. 100 ms. Response time: ≤ 20 ms. Functional safety: ISO 13849-1 , Cat. 2 PL c. Product standard: EN 61000-6-2, EN 61000-6-3 , EN 12978. Ambient temperature: -25 ... 55 °C (-13 ... 131 °F). Storage temperature: -25 ... 55 °C (-13 ... 131 °F). Relative humidity: max. 95 %, not condensing. Degree of protection: IP67 according to EN 60529. Connection: fixed black cable Emitter: 0.14 mm2 , 3 conductor Receiver: 0.14 mm2 , 3 conductor. Material: . HousingPA6 with 30 % glass fiber content: . Housing: PA6 with 30 % glass fiber content. Mass: approx. 300 g. Dimensions: . Height108 mmWidth20 mmDepth30 mm: . Height: 108 mm. Width: 20 mm. Depth: 30 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
