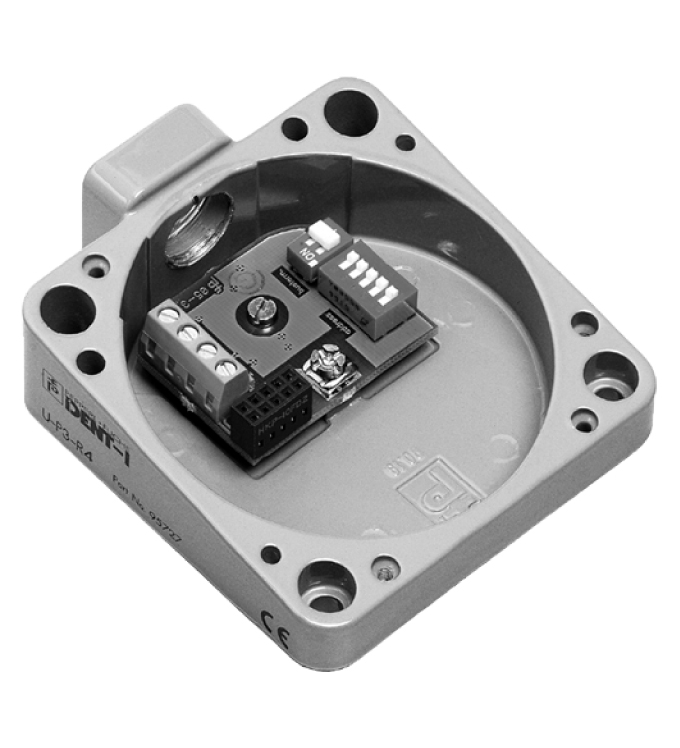

U-P3-R4

Base for read/write station. Base with addressable serial Interface RS 485. DIP switch: Setting the station addressbus connectionON = active OFF = non-active. Rated operating voltage: 20 ... 30 V DC ,...

Base for read/write station. Base with addressable serial Interface RS 485. DIP switch: Setting the station addressbus connectionON = active OFF = non-active. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 4 W with read/write head IPT*-FP. Galvanic isolation: . Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff: . Operating voltage/interface: functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff. Physical: RS-485, addressable , up to 30 bases , address 1 ... 30. Protocol: ASCII. Transfer rate: 1200; 2400; 4800; 9600; 19200; 38400 Bit/s. Cable length: ≤ 1200 m. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529 with IPT*-FP. Connection: screw terminals. Interface cable: 2 conductor, acc. to RS-485. Supply: up to 3 x 1.5 mm2. Material: . Housingdiecast aluminum: . Housing: diecast aluminum. Dimensions: . Height30 mmWidth80 mmLength91 mm: . Height: 30 mm. Width: 80 mm. Length: 91 mm

Brand	Pepperl Fuchs
Lifecycle status	active
