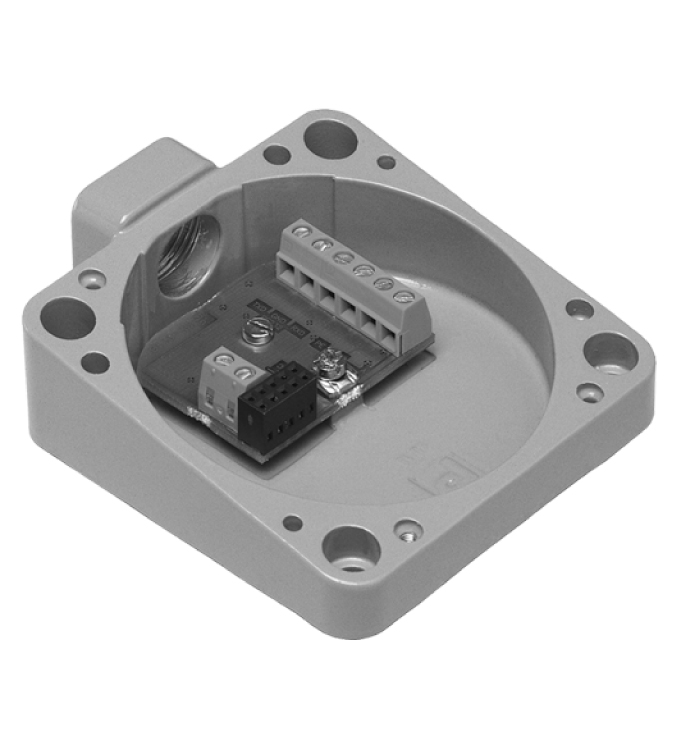

U-P4-RX

Base for read/write station. Base with serial interfaces RS 232 and RS 485. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 4 W with read/write head IPT*-FP. Ga...

Base for read/write station. Base with serial interfaces RS 232 and RS 485. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 4 W with read/write head IPT*-FP. Galvanic isolation: . Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff: . Operating voltage/interface: functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff. Physical: RS-232/RS-485. Protocol: ASCII. Transfer rate: 1200; 2400; 4800; 9600; 19200; 38400. Cable length: ≤ 15 m at RS 232 ≤ 1200 m at RS-485. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529 with IPT*-FP. Connection: screw terminals. Interface cable: 3 conductor, acc. to RS-232 or 2 acc. to RS-485. Supply: up to 3 x 1.5 mm2. Material: . Housingdiecast aluminum: . Housing: diecast aluminum

Brand	Pepperl Fuchs
Lifecycle status	active
