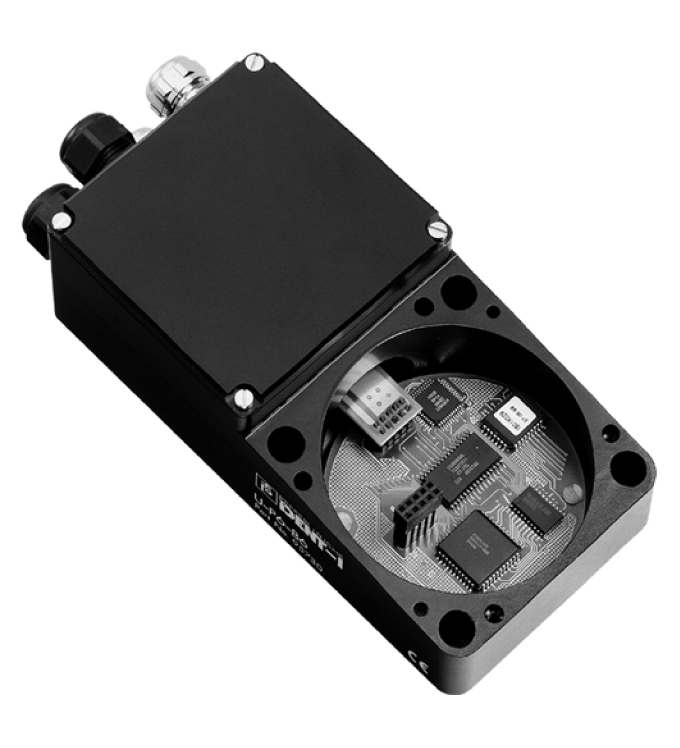

U-P6-B5

Base for read/write station. Base for INTERBUS. DIP switch: ring termination0 = closed1 = bus continued. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 5 W wit...

Base for read/write station. Base for INTERBUS. DIP switch: ring termination0 = closed1 = bus continued. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 5 W with read/write head IPT*-FP. Galvanic isolation: . Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff: . Operating voltage/interface: functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff. Physical: RS-485. Protocol: INTERBUS remote bus. ID code: 03. Transfer rate: 500 kBit/s or 2 MBit/s internally switchable. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP67 according to EN 60529 with IPT*-FP. Connection: screw terminals. Interface cable: up to 1.5 mm2. Supply: up to 3 x 1.5 mm2. Material: . Housingaluminum, black anodized: . Housing: aluminum, black anodized. Dimensions: . Height50 mmWidth80 mmLength161 mm: . Height: 50 mm. Width: 80 mm. Length: 161 mm

Brand	Pepperl Fuchs
Lifecycle status	active
