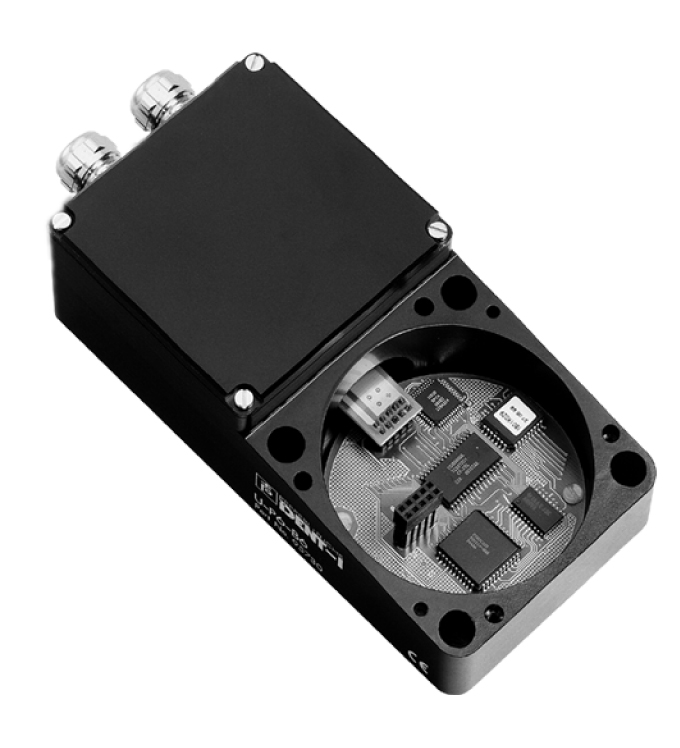

U-P6-B6-V15B

Base for read/write station. Base for PROFIBUS DP, plug-in connection. DIP switch: Setting the station addressbus connectionON = active OFF = non-active. Rated operating voltage: 20 ... 30 V DC , ripp...

Base for read/write station. Base for PROFIBUS DP, plug-in connection. DIP switch: Setting the station addressbus connectionON = active OFF = non-active. Rated operating voltage: 20 ... 30 V DC , ripple 10 %SS , PELV. Power consumption: max. 5 W with read/write head IPT*-FP. Galvanic isolation: . Operating voltage/interfacefunctional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff: . Operating voltage/interface: functional insulation acc. to DIN EN 50178, rated insulation voltage 50 Veff. Physical: RS-485. Protocol: PROFIBUS DP acc. to EN 50170. Transfer rate: 9.6; 19.2; 93.75; 187.5; 500; 1500 kBit/s 3; 6; 12 Mbit/s self-synchronizing. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Climatic conditions: air humidity max. 95 %. Degree of protection: IP67 according to EN 60529 with IPT*-FP. Connection: 4-pin, M12 x 1 connector for supply;M12 x 1 device socket, 5-pin, B-coded for PROFIBUS. Material: . Housingaluminum, black anodized: . Housing: aluminum, black anodized. Dimensions: . Height50 mmWidth80 mmLength161 mm: . Height: 50 mm. Width: 80 mm. Length: 161 mm

Brand	Pepperl Fuchs
Lifecycle status	active
