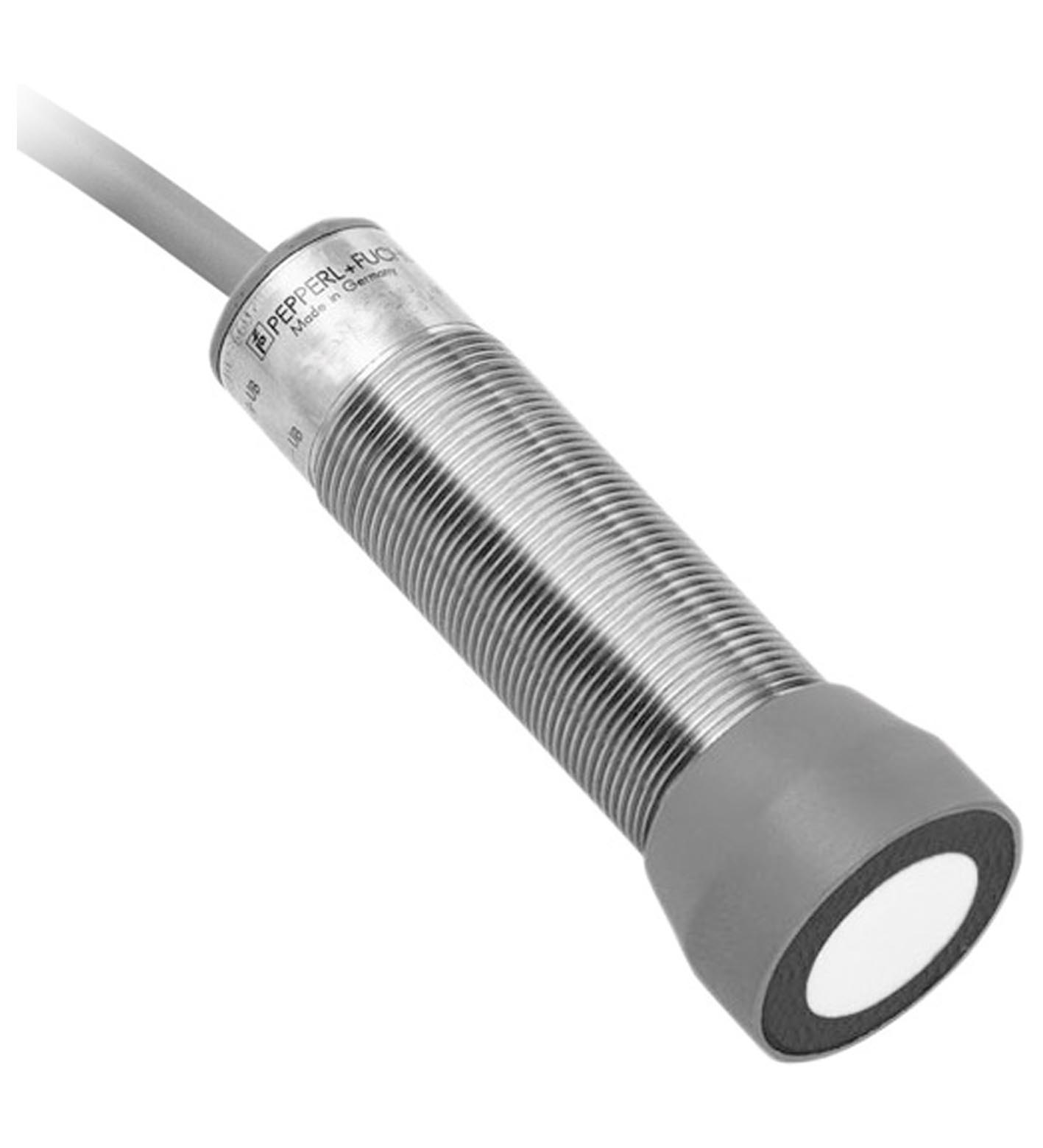

UB2000-30GM-H3-Y48481
Ultrasonic sensor. Single head system, Separate evaluation, Direct detection mode, Series: UB-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 pulse output for echo p...
Ultrasonic sensor. Single head system, Separate evaluation, Direct detection mode, Series: UB-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 pulse output for echo propagation time, high-active, short-circuit proof, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection: 2 m PVC cable 0.75 mm<sup>2</sup>, Housing: nickel plated brass; plastic components: PBT. Sensing range: 200 ... 2000 mm. Dead band: 0 ... 200 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 30 mA. Input type: 1 pulse input for transmitter pulse, activation through open collector npn< 1 V: emitter active, > 4 V: emitter inactive. Pulse length: 20 ... 200 µs. Pause length: ≥ 50 x pulse length. Output type: 1 pulse output for echo propagation time, high-active, short-circuit proof. Signal level: 1-level: ≥ UB - 3 V ; ≤ 10 mA level 0: ≤ 1 V; ≤ 0,1 mA. Temperature influence: the echo propagation time: 0.17 % / K. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP65. Connection: 2 m PVC cable 0.75 mm2. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 300 g. Dimensions: . Length93 mmDiameter30 mm: . Length: 93 mm. Diameter: 30 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
