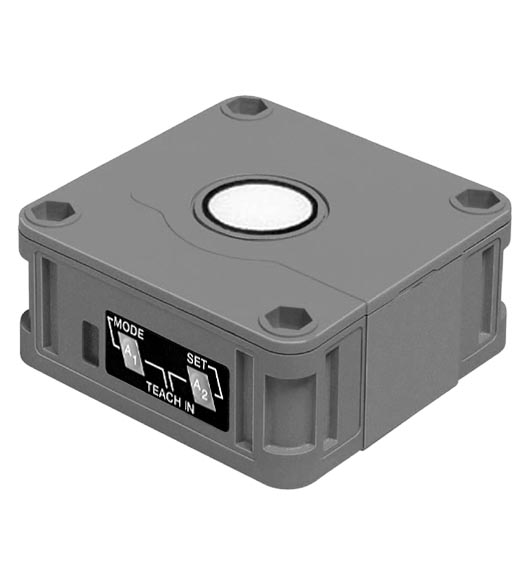

UB2000-F42-E4-V15

Ultrasonic sensor. Single head system, Switching output, Extremely small unusable area, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Output type: 1 switching...

Ultrasonic sensor. Single head system, Switching output, Extremely small unusable area, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Output type: 1 switching output E4, NPN, NO/NC, programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: ABS. Sensing range: 60 ... 2000 mm. Adjustment range: 90 ... 2000 mm. Dead band: 0 ... 60 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Response delay: approx. 150 ms. LED green: solid green: Power on. LED yellow: solid: switching state switch outputflashing: program function. LED red: normal operation: "fault"program function: no object detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Synchronization: bi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 30 HzMultiplex operation≤ 30/n Hz, n = number of sensors: . Common mode operation: max. 30 Hz. Multiplex operation: ≤ 30/n Hz, n = number of sensors. Output type: 1 switching output E4, NPN, NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Default setting: Switch point A1: 90 mm , Switch point A2: 2000 mm , wide sound lobe. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ 0.5 % of switching point. Switching frequency: ≤ 2.7 Hz. Range hysteresis: 1 % of the set operating distance. Temperature influence: ± 1 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP54. Material: . HousingABSTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT: . Housing: ABS. Transducer: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT. Mass: 140 g. Dimensions: . Height80 mmWidth80 mmLength34 mm: . Height: 80 mm. Width: 80 mm. Length: 34 mm

Brand	Pepperl Fuchs
Lifecycle status	active
