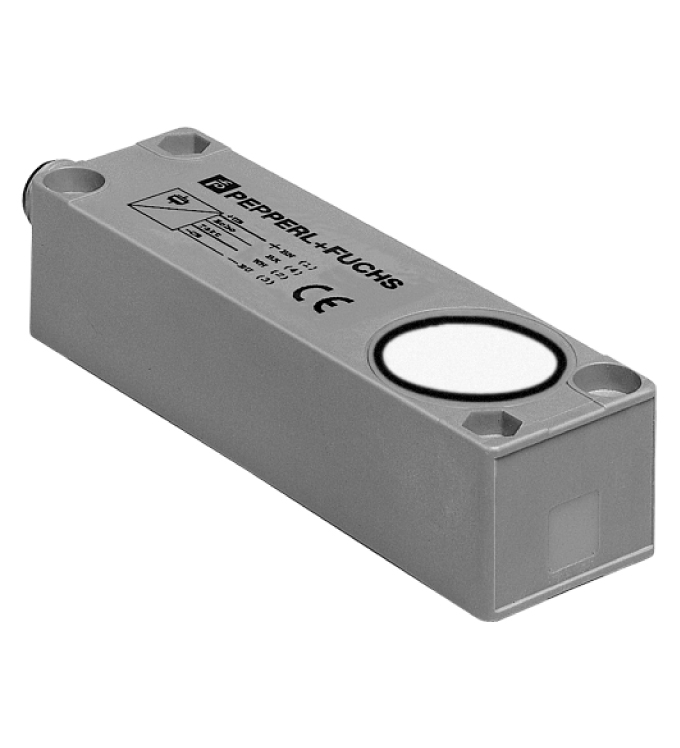

UB2000-F54-H3-V1
Ultrasonic sensor. Single head system, Separate evaluation, Direct detection mode, Series: UB-F54, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 pulse output for echo ru...
Ultrasonic sensor. Single head system, Separate evaluation, Direct detection mode, Series: UB-F54, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 pulse output for echo run time, short-circuit proof<br>open collector PNP with pulldown resistor = 22 kOhm<br>level 0 (no echo): -U<sub>B</sub><br>level 1 (echo detected): ≥ (+U<sub>B</sub>-2 V), UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V. Sensing range: 80 ... 2000 mm. Adjustment range: 100 ... 2000 mm. Dead band: 0 ... 80 mm 1). Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 30 mA. Input type: 1 pulse input for transmitter pulse (clock)0-level (active): < 5 V (UB > 15 V)1-level (inactive): > 10 V ... +UB (UB > 15 V)0-level (active): < 1/3 UB (10 V < UB < 15 V)1-level (inactive): > 2/3 UB ... +UB (10 V < UB < 15 V). Pulse length: 20 ... 300 µs (typ. 200 µs) 2). Pause length: ≥ 50 x pulse length. Impedance: 10 kOhm internal connected to +UB. Output type: 1 pulse output for echo run time, short-circuit proofopen collector PNP with pulldown resistor = 22 kOhmlevel 0 (no echo): -UBlevel 1 (echo detected): ≥ (+UB-2 V). Rated operating current: 15 mA , short-circuit/overload protected. Temperature influence: the echo propagation time: 0.17 % / K. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP67. Material: . HousingABSTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: ABS. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Connector: . ThreadingM12Number of pins4: . Threading: M12. Number of pins: 4. Mass: 110 g. Dimensions: . Height25 mmWidth32 mmLength105 mm: . Height: 25 mm. Width: 32 mm. Length: 105 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
