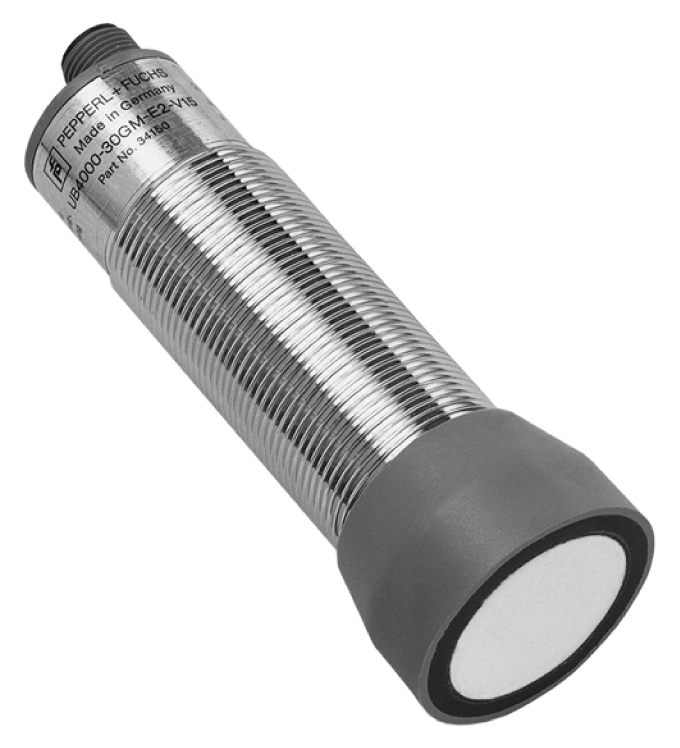

UB4000-30GM-E5-V15

Ultrasonic sensor. Single head system, Switching output, 5 different output functions can be set, Program input, Series: UB-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Output t...

Ultrasonic sensor. Single head system, Switching output, 5 different output functions can be set, Program input, Series: UB-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Output type: 1 switch output PNP , Normally open/closed , programmable, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin, Housing: nickel plated brass; plastic components: PBT. Sensing range: 200 ... 4000 mm. Adjustment range: 240 ... 4000 mm. Dead band: 0 ... 200 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 85 kHz. Response delay: approx. 325 ms. LED green: solid: Power-onflashing: program function object detected. LED yellow: solid: switching state switch outputflashing: program function. LED red: normal operation: "fault"program function: no object detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Synchronization: bi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 13 HzMultiplex operation≤ 13 Hz / n , n = number of sensors , n ≤ 5: . Common mode operation: max. 13 Hz. Multiplex operation: ≤ 13 Hz / n , n = number of sensors , n ≤ 5. Input type: 1 program input,operating range 1: -UB ... +1 V, operating range 2: +4 V ... +UB input impedance: > 4.7 kΩ; program pulse: ≥ 1 s. Output type: 1 switch output PNP , Normally open/closed , programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ 0.5 % of switching point. Switching frequency: ≤ 1.5 Hz. Range hysteresis: 1 % of the set operating distance. Temperature influence: < 2 % of far switch point. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 180 g. Dimensions: . Length108 mmDiameter40 mm: . Length: 108 mm. Diameter: 40 mm. Output: Switch point A1: 550 mm Switch point A2: 4200 mm output function: Window mode output behavior: NO contact

Brand	Pepperl Fuchs
Lifecycle status	active
