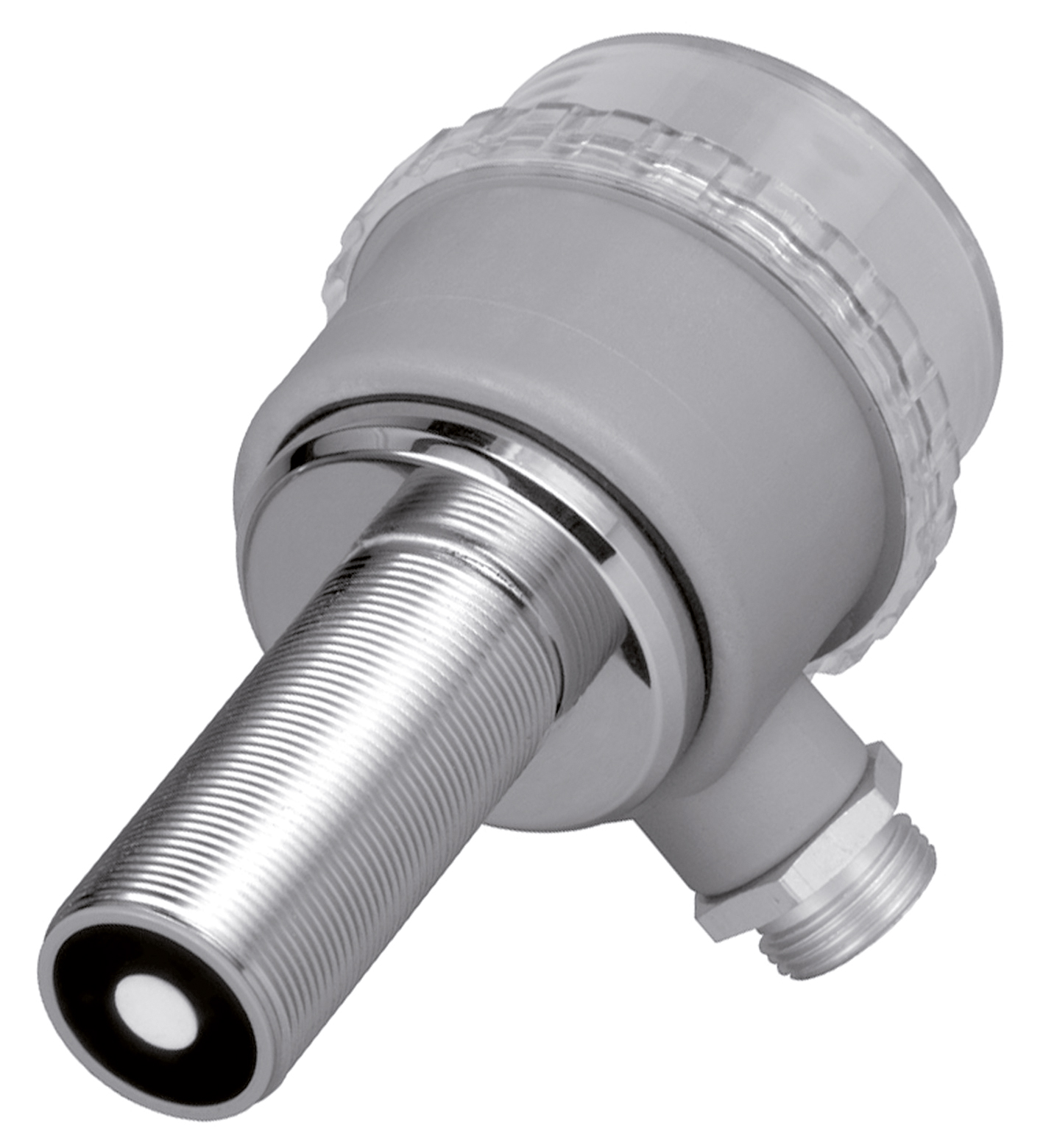

UB500-30GM65-WS3-BHMS5

Ultrasonic sensor. Single head system, AC switchpoint output, 330° high visibility LEDs, Fingertip range adjustability, Series: UB-30GM, Operating voltage: 90 ... 140 V AC, Output type: Thyristor , 1...

Ultrasonic sensor. Single head system, AC switchpoint output, 330° high visibility LEDs, Fingertip range adjustability, Series: UB-30GM, Operating voltage: 90 ... 140 V AC, Output type: Thyristor , 1 NO, UL approval: cULus Listed, General Purpose, Connection type: 5-pin , V95 connector, Housing: nickel plated brass; plastic components: PBT. Sensing range: 70 ... 500 mm. Dead band: 0 ... 70 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: 400 kHz. Response delay: ≤ 45 ms. LED green: power. LED red: Output. Operating voltage: 90 ... 140 V AC. Power consumption: ≤ 75 mA. Output type: Thyristor , 1 NO. Rated operating current: 700 mA. Voltage drop: ≤ 1.5 V AC. Repeat accuracy: ≤ 5 mm. Switching frequency: 15 Hz. Range hysteresis: approx. 15 mm. Temperature influence: < 2 % of far switch point. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: 5-pin , V95 connector. Degree of protection: IP65. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Dimensions: . Diameter30 mm: . Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
