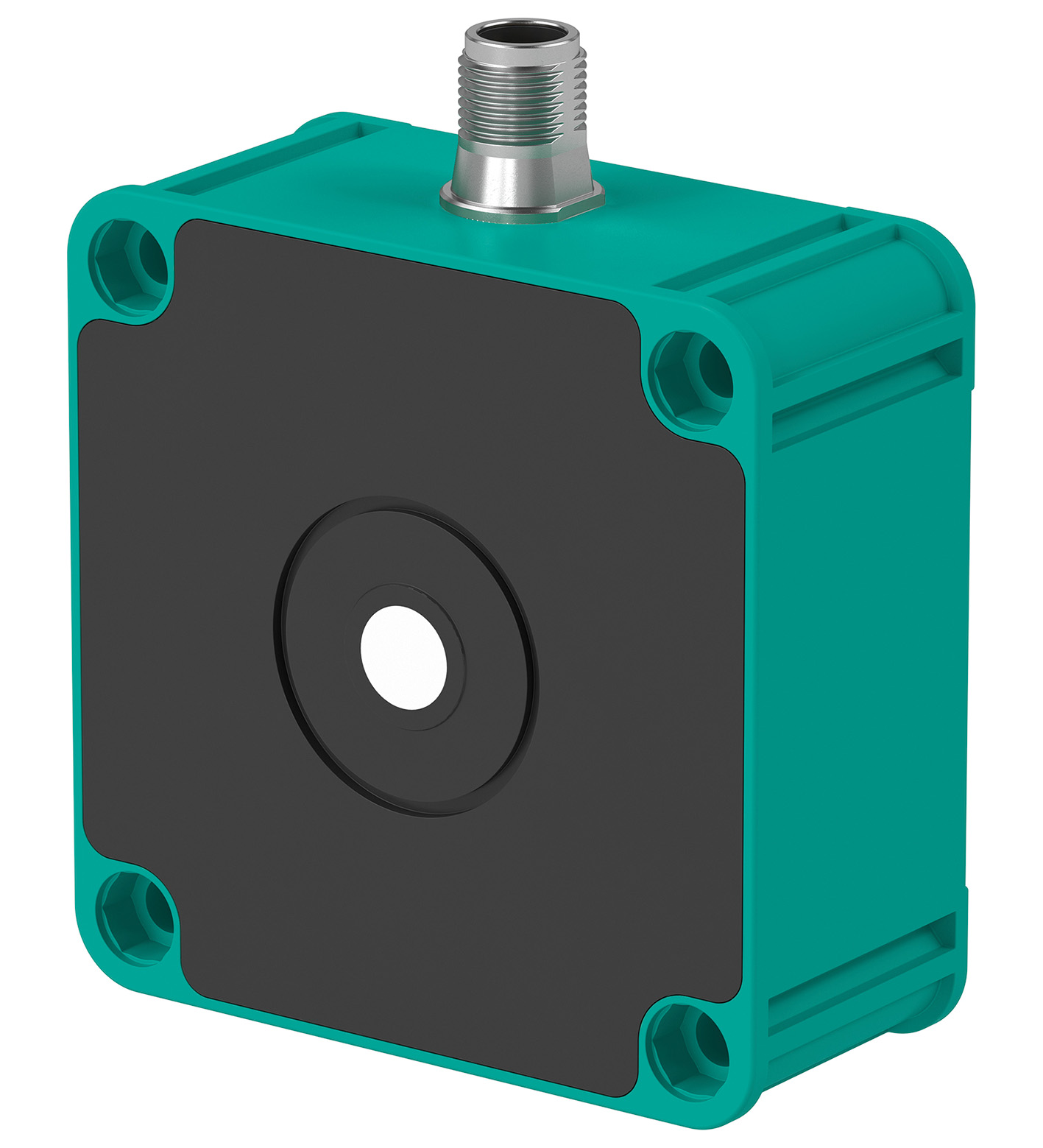

UB500-F42-U-V15

Ultrasonic sensor. Ultrasonic sensor with 1 analog output in cubic design, Analog output 0 ... 10 V, Selectable sound lobe width, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 1...

Ultrasonic sensor. Ultrasonic sensor with 1 analog output in cubic design, Analog output 0 ... 10 V, Selectable sound lobe width, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Output type: 1 analog output 0 ... 10 V, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug, Housing: PC-GF10, Threading: M12 x 1. Sensing range: 30 ... 500 mm. Adjustment range: 50 ... 500 mm. Dead band: 0 ... 30 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 400 kHz. Response delay: 40 ms. Sensor cycle time: ≥ 10 ms. Temperature influence: ≤ ± 0,75 % of the full-scale value 20 min after switching on. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: solid: power on flashing: standby mode. LED yellow: solid: object in evaluation rangeflashing: programming of the limits. LED red: solid: faultflashing: programming of the limits, object not detected fast flashes: short-circuit or overtemperature. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 85 mA. Power consumption: ≤ 1200 mW. Time delay before availability: ≤ 300 ms. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level2.5 V ... UBInput impedance> 22 kΩOutput currentcurrent source < 2.5 mAPulse length≥ 1 ms with external control, low active: . 0 Level: 0 ... 1 V. 1 Level: 2.5 V ... UB. Input impedance: > 22 kΩ. Output current: current source < 2.5 mA. Pulse length: ≥ 1 ms with external control, low active. Synchronization frequency: . Common mode operation≤ 100 HzMultiplex operation≤ 100 Hz / n , n = number of sensors , n ≤ 10: . Common mode operation: ≤ 100 Hz. Multiplex operation: ≤ 100 Hz / n , n = number of sensors , n ≤ 10. Input type: 1 program input. Level (evaluation limit 1): 0 ... 0.6 V. Level (evaluation limit 2): 3.7 V ... UB. Input impedance: > 4.7 kΩ. Pulse length: ≥ 1 s. Output type: 1 analog output 0 ... 10 V. Resolution: evaluation range [mm]/4000, but ≥ 0.35 mm. Deviation of the characteristic curve: ≤ ± 0.2 % of full-scale value. Repeat accuracy: ≤ ± 0.1 % of full-scale value. Load resistor: ≥ 1000 Ω. Standard conformity: . StandardsEN 60947-5-2 EN 60947-5-7: . Standards: EN 60947-5-2 EN 60947-5-7. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP67. Material: . HousingPC-GF10Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: PC-GF10. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Connector: . ThreadingM12 x 1Number of pins5MaterialDiecast zinc: . Threading: M12 x 1. Number of pins: 5. Material: Diecast zinc. Mass: 135 g. Tightening torque, fastening screws: max. 3 Nm. Dimensions: . Height36 mmWidth80 mmLength80 mm: . Height: 36 mm. Width: 80 mm. Length: 80 mm. Output: evaluation limit A1: 50 mm evaluation limit A2: 500 mm output function: rising ramp. Beam width: wide

Brand	Pepperl Fuchs
Lifecycle status	active
