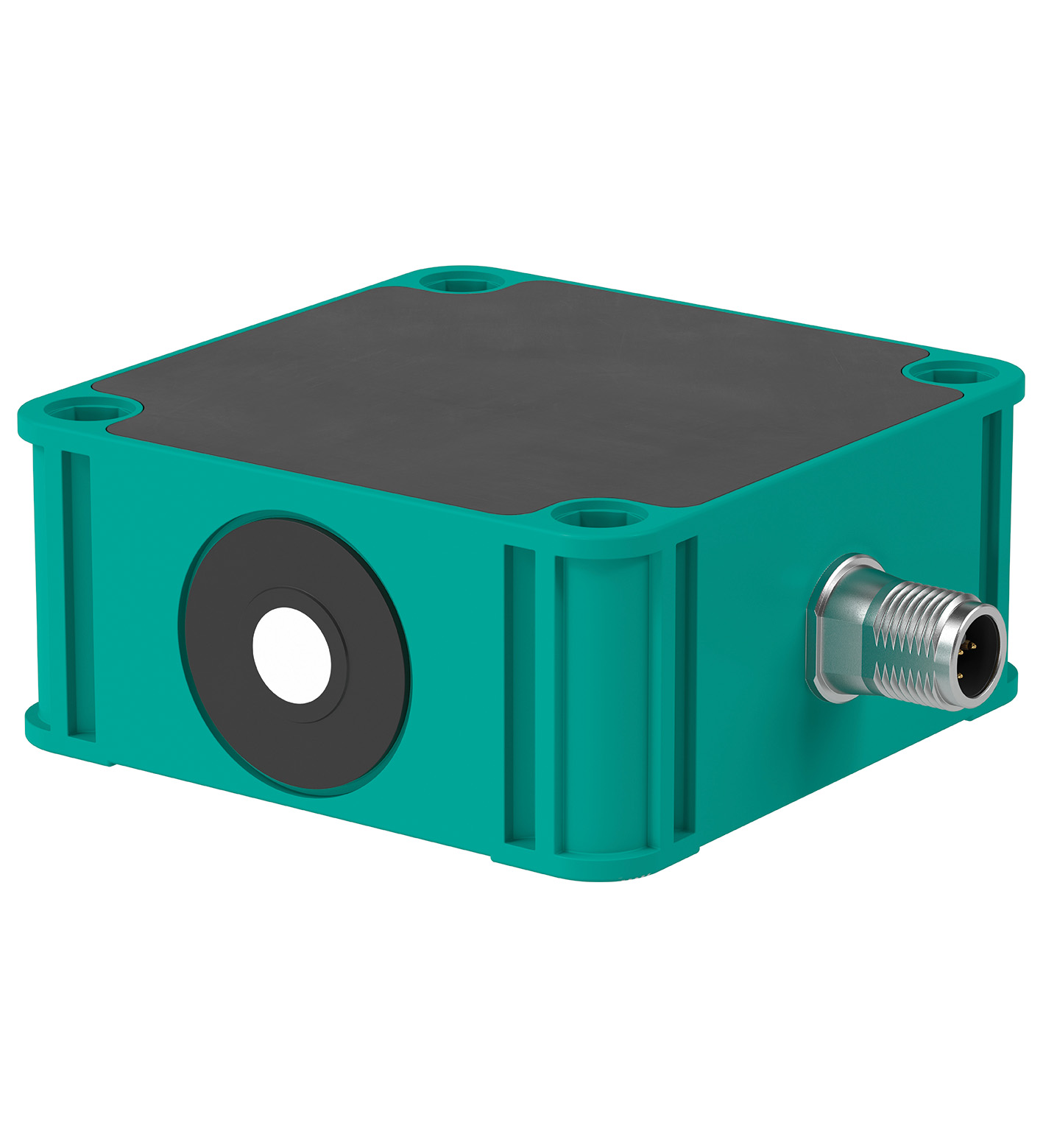

UB500-F42S-2EP-IO-V15

Ultrasonic sensor. Ultrasonic sensor with IO-Link interface in cubic design and 2 push-pull output, IO-Link Interface for process data, parameterization and diagnosis, Selectable sound lobe width, TEA...

Ultrasonic sensor. Ultrasonic sensor with IO-Link interface in cubic design and 2 push-pull output, IO-Link Interface for process data, parameterization and diagnosis, Selectable sound lobe width, TEACH-IN, Series: UB-F42, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Interface type: IO-Link, Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 30 ... 500 mm. Adjustment range: 50 ... 500 mm. Dead band: 0 ... 30 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 400 kHz. Response delay: 40 ms. Sensor cycle time: ≥ 10 ms. Temperature influence: ≤ ± 0,75 % of the full-scale value 20 min after switching on. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: solid: power on flashing with short break: IO-Link mode. LED yellow: solid: object in evaluation rangeflashing: switch point programming. LED red: solid: errorflashing: switch point programming, object not detected fast flashes: short-circuit or overtemperature. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 85 mA. Power consumption: ≤ 1200 mW. Time delay before availability: ≤ 300 ms. Interface type: IO-Link. IO-Link revision: 1.1.4. Device profile: Smart Sensor - SSP 4.1.1. Process data: Input: 32 Bit - measurement value 16 Bit - scale 8 Bit - switching signals 2 Bit. Vendor ID: 1 (0x0001). Device ID: 3147522 (0x300702). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 3.3 ms. SIO mode support: yes. Compatible master port type: Class A (use adapter cable listed in accesories) Class B (use 3-pole adapter or 3-wire cable). Input type: 1 program input. Level (evaluation limit 1): 0 ... 0.6 V. Level (evaluation limit 2): 3.7 V ... UB. Input impedance: > 4.7 kΩ. Pulse length: ≥ 1 s. Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Rated operating current: 100 mA , short-circuit/overload protected. Switching frequency: 14 Hz. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ ± 0.1 % of full-scale value. Range hysteresis: 1 % of the adjusted operating range (default settings), programmable , min. 1 mm. Off-state current: ≤ 100 µA. Standard conformity: . StandardsEN 60947-5-2 IEC 61131-9 / IO-Link V1.1.4: . Standards: EN 60947-5-2 IEC 61131-9 / IO-Link V1.1.4. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP67. Material: . HousingPC-GF10Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: PC-GF10. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Connector: . ThreadingM12 x 1Number of pins5MaterialDiecast zinc: . Threading: M12 x 1. Number of pins: 5. Material: Diecast zinc. Mass: 130 g. Tightening torque, fastening screws: max. 3 Nm. Dimensions: . Height36 mmWidth80 mmLength80 mm: . Height: 36 mm. Width: 80 mm. Length: 80 mm. Output 1: near switch point: 50 mm far switch point: 500 mm output function: Switch point operation mode output behavior: NO contact. Output 2: near switch point: 500 mm far switch point: 500 mm output function: Switch point operation mode output behavior: NO contact. Beam width: wide

Brand	Pepperl Fuchs
Lifecycle status	active
