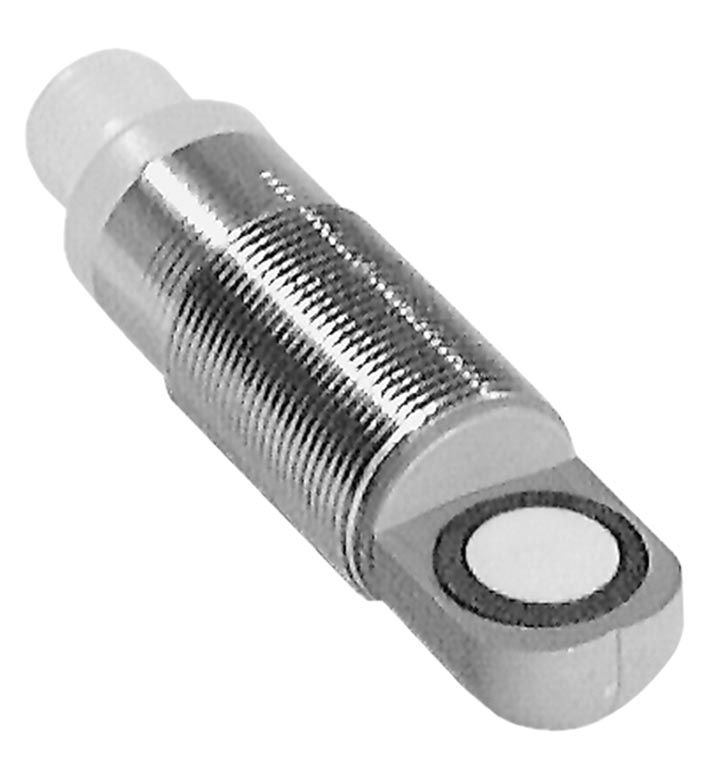

UB800-18GM40A-E5-V1
Ultrasonic sensor. Single head system, Short design, 40 mm, Function indicators visible from all directions, Switching output, Series: UB-18GM40, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS...
Ultrasonic sensor. Single head system, Short design, 40 mm, Function indicators visible from all directions, Switching output, Series: UB-18GM40, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 switching output E5, PNP NO/NC, programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin, Housing: brass, nickel-plated. Sensing range: 50 ... 800 mm. Adjustment range: 70 ... 800 mm. Dead band: 0 ... 50 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: approx. 100 ms. LED green: Power on. LED yellow: indication of the switching stateflashing: program function object detected. LED red: solid red: Errorred, flashing: program function, object not detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA. Input type: 1 program inputoperating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s. Output type: 1 switching output E5, PNP NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Default setting: Switch point A1: 70 mm Switch point A2: 800 mm. Voltage drop: ≤ 3 V. Repeat accuracy: ≤ 1 %. Switching frequency: ≤ 4 Hz. Range hysteresis: 1 % of the set operating distance. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 4-pin. Degree of protection: IP67. Material: . Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT: . Housing: brass, nickel-plated. Transducer: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT. Mass: 25 g. Dimensions: . Length57 mmDiameter18 mm: . Length: 57 mm. Diameter: 18 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
