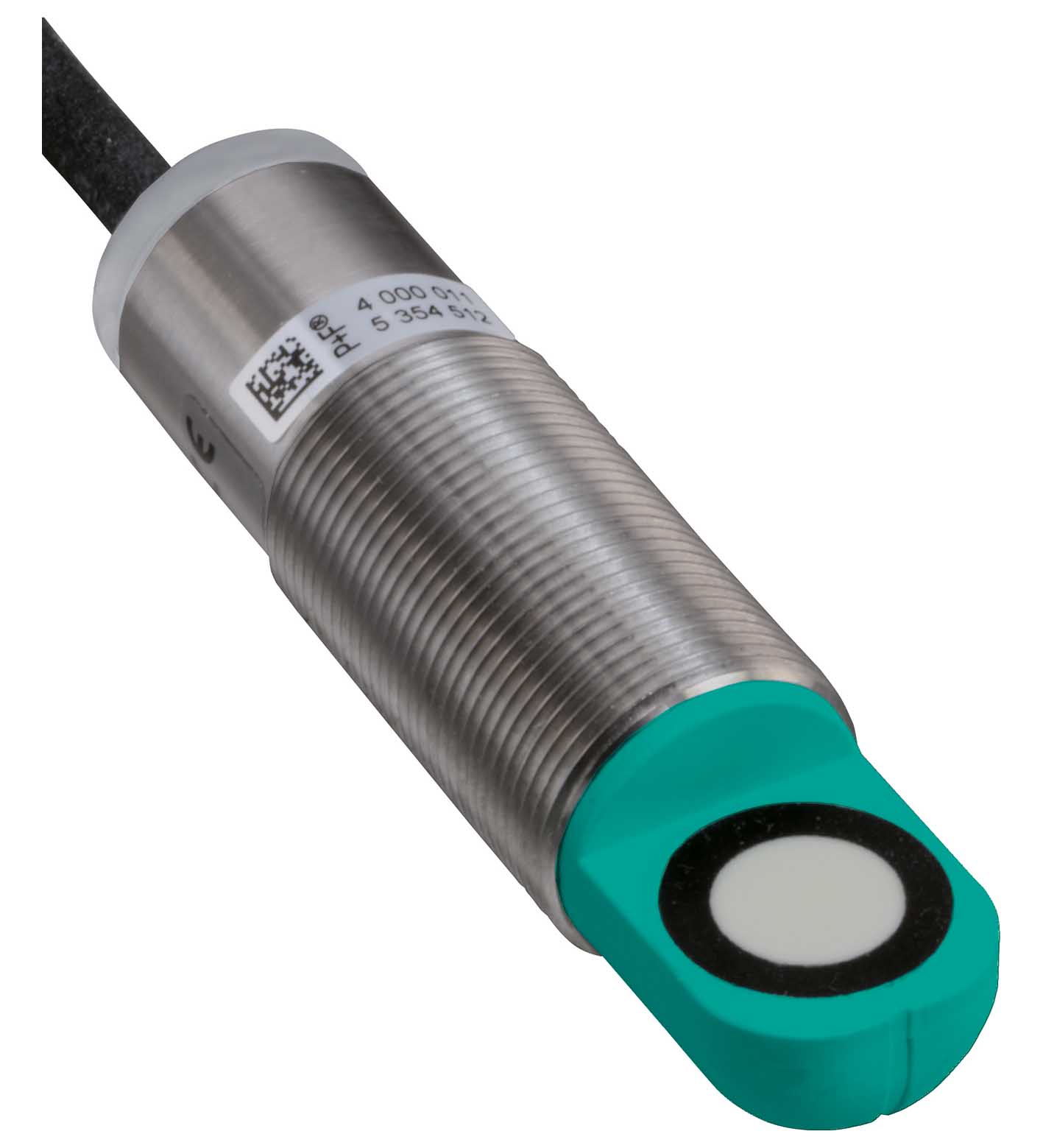

UB800-18GM40A-I-0,3M-Y70110930
Ultrasonic sensor. Single head system, Cylindrical housing, Analog output 4 mA ... 20 mA, Temperature compensation, Series: UB-18GM40, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Out...
Ultrasonic sensor. Single head system, Cylindrical housing, Analog output 4 mA ... 20 mA, Temperature compensation, Series: UB-18GM40, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 analog output 4 ... 20 mA, short-circuit/overload protected, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: fixed cable with plug, Housing: brass, nickel-plated. Sensing range: 50 ... 800 mm. Adjustment range: 70 ... 800 mm. Dead band: 0 ... 50 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: approx. 100 ms. LED green: Power on. LED yellow: object in evaluation range. LED red: error. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA. Output type: 1 analog output 4 ... 20 mA, short-circuit/overload protected. Default setting: evaluation limit A1: 70 mm evaluation limit A2: 800 mm. Resolution: 0.4 mm at max. sensing range. Deviation of the characteristic curve: ± 1 % of full-scale value. Repeat accuracy: ± 0.5 % of full-scale value. Load impedance: 0 ... 300 Ω at UB > 10 V;0 ... 500 Ω at UB > 15 V. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP67. Material: . Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT: . Housing: brass, nickel-plated. Transducer: epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT. Connector: Deutsch connector DT04-3P-C015. Cable: . MaterialPVCLengthL300 mm: . Material: PVC. Length: 300 mm. Mass: 55 g. Dimensions: . Length72.6 mmDiameter18 mm: . Length: 72.6 mm. Diameter: 18 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
