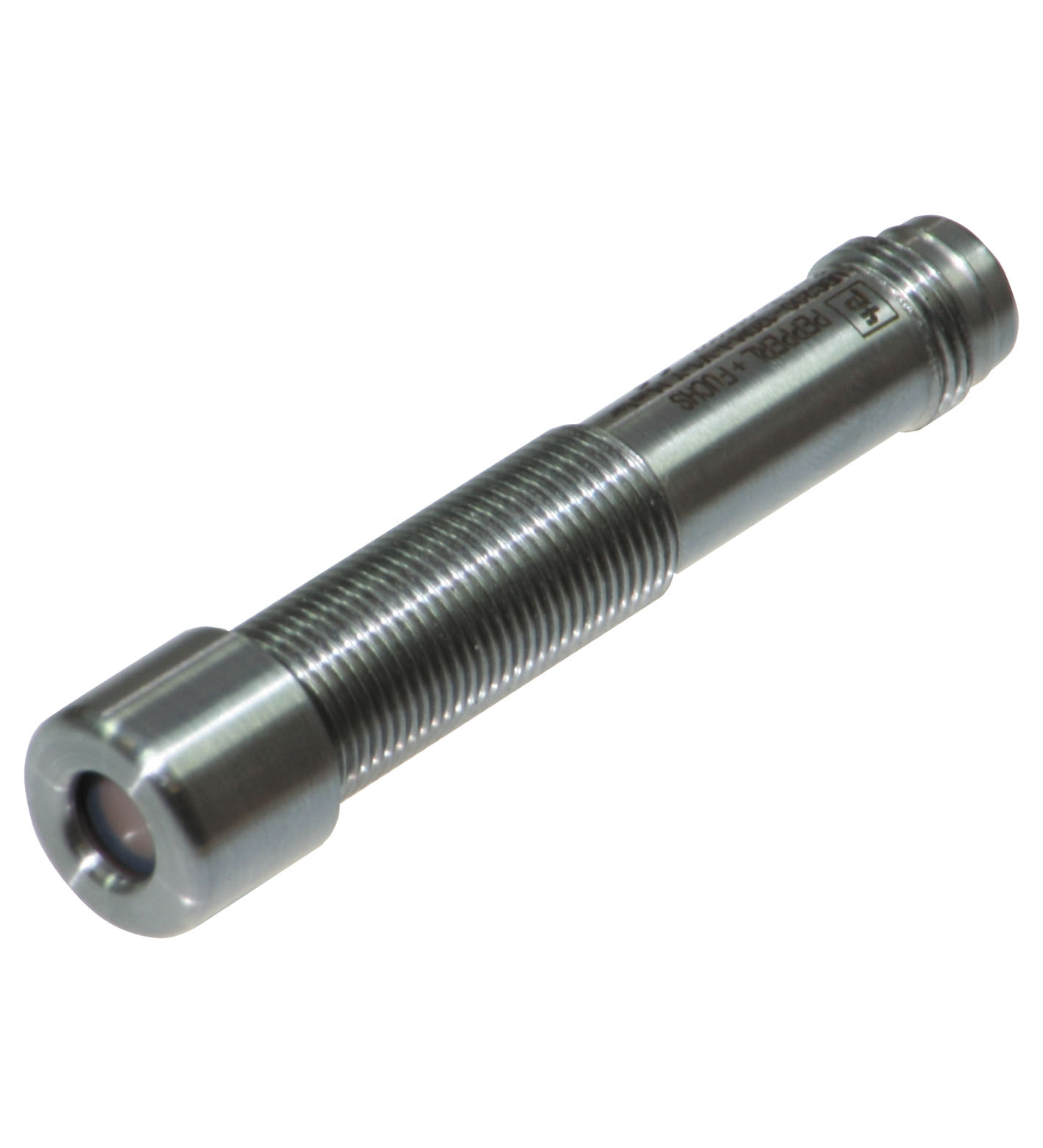

UBC250-12GM-E5-V1
Ultrasonic sensor. High chemical resistance through PTFE coated transducer surface, Stainless Steel enclosure, 1 switch output, Series: UB-12GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS<...
Ultrasonic sensor. High chemical resistance through PTFE coated transducer surface, Stainless Steel enclosure, 1 switch output, Series: UB-12GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 switch output PNP Normally open/closed , programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin. Sensing range: 30 ... 250 mm. Adjustment range: 50 ... 250 mm. Dead band: 0 ... 30 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 310 kHz. Response delay: approx. 50 ms. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 30 mA. Input type: 1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s. Output type: 1 switch output PNP Normally open/closed , programmable. Rated operating current: 100 mA , short-circuit/overload protected. Default setting: Switch point A1: 50 mm Switch point A2: 250 mm. Voltage drop: ≤ 3 V. Repeat accuracy: ≤ 1 %. Switching frequency: ≤ 8 Hz. Range hysteresis: 1 % of the set operating distance. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 4-pin. Degree of protection: IP68 / IP69K. Material: . HousingStainless steel 1.4404 / AISI 316L O-ring for cover seal: VitonTransducerPTFE (diaphragm surface): . Housing: Stainless steel 1.4404 / AISI 316L O-ring for cover seal: Viton. Transducer: PTFE (diaphragm surface). Mass: 35 g. Dimensions: . Length70 mmDiameter12 mm: . Length: 70 mm. Diameter: 12 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
