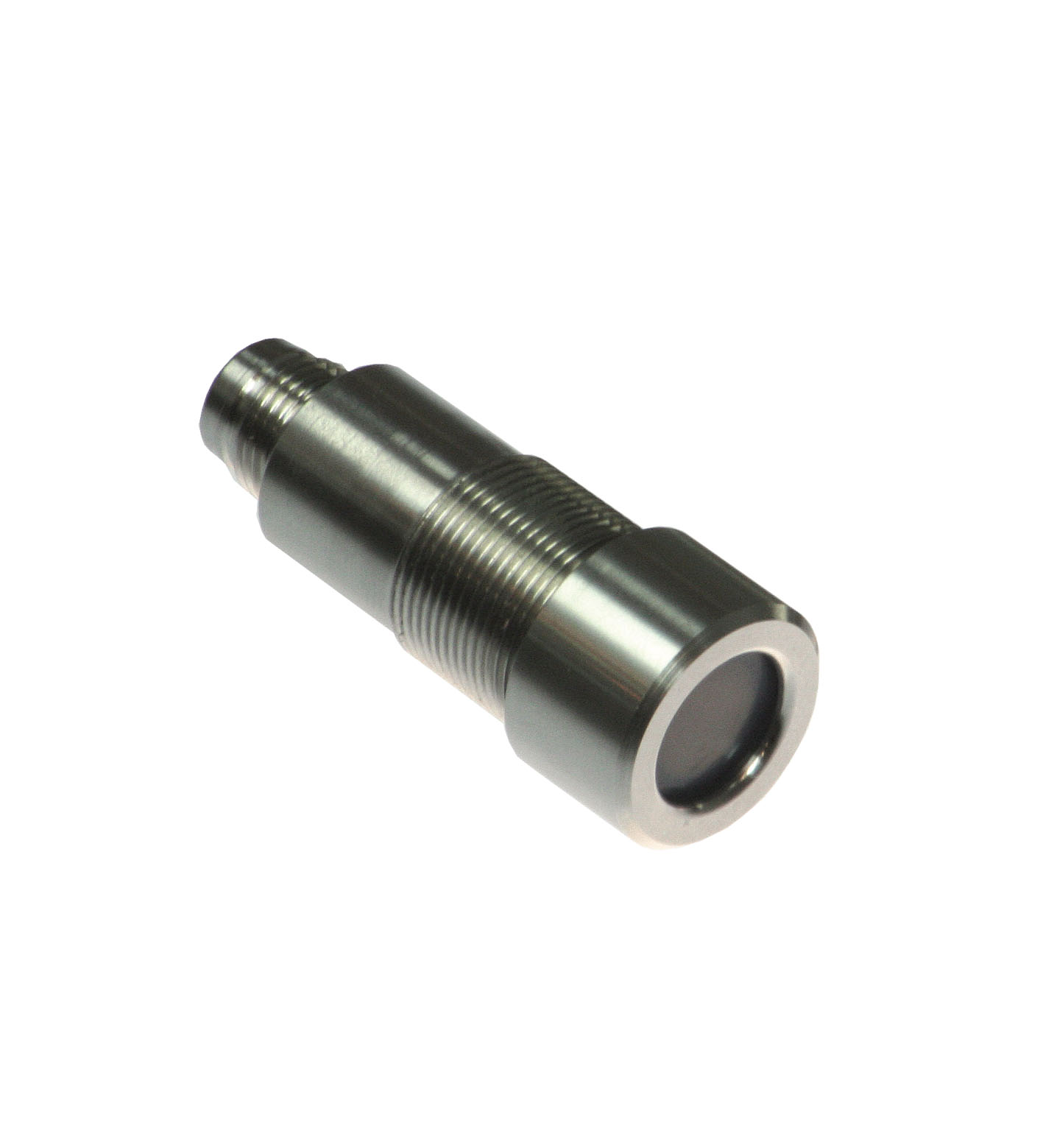

UBC400-18GH40-I-V1
Ultrasonic sensor. Single head system, Short design, 40 mm, Analog output 4 mA ... 20 mA, Measuring window adjustable, Series: UBC-18GH, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, O...
Ultrasonic sensor. Single head system, Short design, 40 mm, Analog output 4 mA ... 20 mA, Measuring window adjustable, Series: UBC-18GH, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 1 analog output 4 ... 20 mA, short-circuit/overload protected, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin. Sensing range: 40 ... 400 mm. Adjustment range: 50 ... 400 mm. Dead band: 0 ... 40 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: approx. 100 ms. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA. Input type: 1 program inputlower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s. Output type: 1 analog output 4 ... 20 mA, short-circuit/overload protected. Resolution: 0.4 mm at max. sensing range. Deviation of the characteristic curve: ± 1 % of full-scale value. Repeat accuracy: ± 0.5 % of full-scale value. Load impedance: 0 ... 300 Ohm. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 70 °C (32 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 4-pin. Degree of protection: IP67. Material: . HousingStainless steel 1.4435 / AISI 316L O-ring for cover seal: VitonTransducerPTFE: . Housing: Stainless steel 1.4435 / AISI 316L O-ring for cover seal: Viton. Transducer: PTFE. Mass: 25 g. Dimensions: . Length40 mmDiameter18 mm: . Length: 40 mm. Diameter: 18 mm. Output: evaluation limit A1: 50 mm evaluation limit A2: 400 mm output behavior: rising ramp
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
