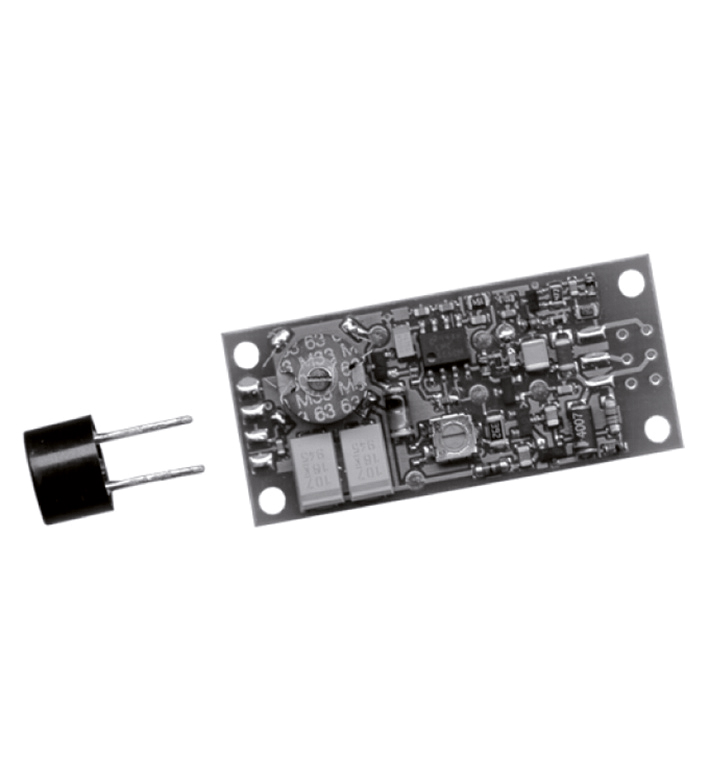

UBE15M-H1

Ultrasonic sensor, transmitter. Multi-head system, Large sensing range, Large possible lateral distance between emitter and receiver, One or two transducers connectable, Sensing range: 0 ... 15000 mm...

Ultrasonic sensor, transmitter. Multi-head system, Large sensing range, Large possible lateral distance between emitter and receiver, One or two transducers connectable, Sensing range: 0 ... 15000 mm , emitter - receiver synchronised, Operating voltage: 16 ... 30 V DC , ripple 10 %_SS <BR>8 V DC with reduced transmitting power, UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection: Contact plugs and soldering surfaces. Sensing range: 0 ... 15000 mm , emitter - receiver synchronised. Transducer frequency: approx. 40 kHz. Opening angle: ± 45 ° at -6 dB. Temperature drift of echo propagation delay: 0.2 %/K. Operating voltage: 16 ... 30 V DC , ripple 10 %SS 8 V DC with reduced transmitting power. No-load supply current: ≤ 10 mA (typ. 6 mA at UB = 24 V DC). Input type: 1 pulse input for transmitter pulse, activation through open collector npn< 1.5 V: emitter active, > 3.5 V: emitter inactive. Pulse length: 100 µs ... 10 ms. Pause length: ≥ 50 x pulse length. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Degree of protection: IP00. Connection: Contact plugs and soldering surfaces. Mass: 20 g. Dimensions: Printed circuit board: 45 mm x 20.2 mm (5 mm separable: 40 mm x 20.2 mm)overall height: 10 mm

Brand	Pepperl Fuchs
Lifecycle status	active
