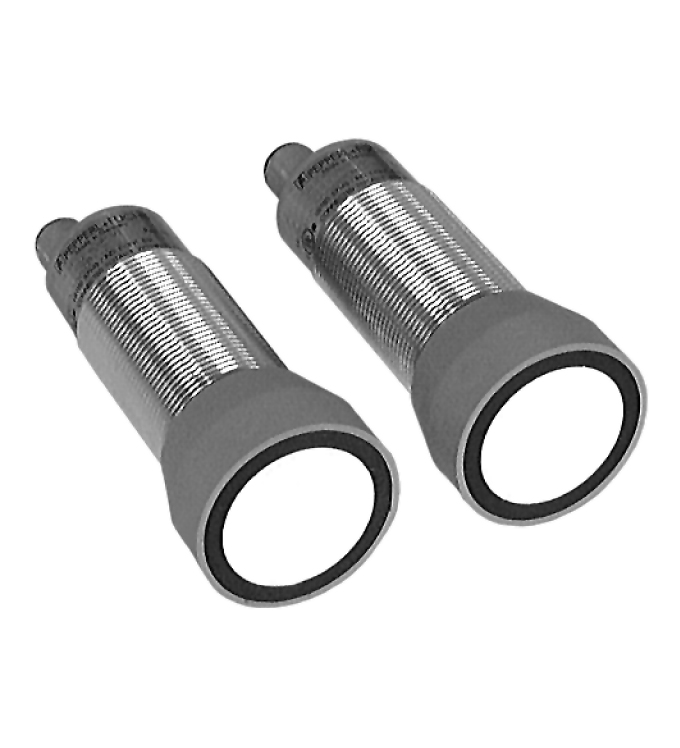

UBE4000-30GM-SA2-V15
Through-beam ultrasonic barrier. Reliable detection of transparent materials, High switching frequency, Adjustable sensitivity, Through-beam mode: Single path ultrasonic switch, Sensing range: 0 ... 4...
Through-beam ultrasonic barrier. Reliable detection of transparent materials, High switching frequency, Adjustable sensitivity, Through-beam mode: Single path ultrasonic switch, Sensing range: 0 ... 4000 mm , distance emitter-receiver 500 mm ... 4000 mm, Series: UB-30GM, Operating voltage: 18 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 2 switch outputs PNP, normally open/closed (complementary), UL approval: cULus Listed, General Purpose, CCC approval: CCC approval / marking not required for products rated ≤36 V. Sensing range: 0 ... 4000 mm , distance emitter-receiver 500 mm ... 4000 mm. Through-beam modeSingle path ultrasonic switch: . Through-beam mode: Single path ultrasonic switch. Reference target: receiver. Transducer frequency: 85 kHz. LED green: alignment aidOFF: no ultrasonic signalflashing: uncertain areaON: positive reception. LED yellow: switching state. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: 35 mA emitter 25 mA receiver. Output type: 2 switch outputs PNP, normally open/closed (complementary). Rated operating current: 200 mA. Voltage drop: ≤ 2.5 V. Switch-on delay: 100 ... 3000 ms. Switching frequency: ≤ 15 Hz. Standard conformity: . StandardsEN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012: . Standards: EN 60947-5-2:2007+A1:2012 IEC 60947-5-2:2007 + A1:2012. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . Housingnickel plated brass; plastic components: PBT: . Housing: nickel plated brass; plastic components: PBT. Mass: 160 g each sensor. Dimensions: . Length90 mmDiameter40 mm: . Length: 90 mm. Diameter: 40 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
