Pepperl Fuchs

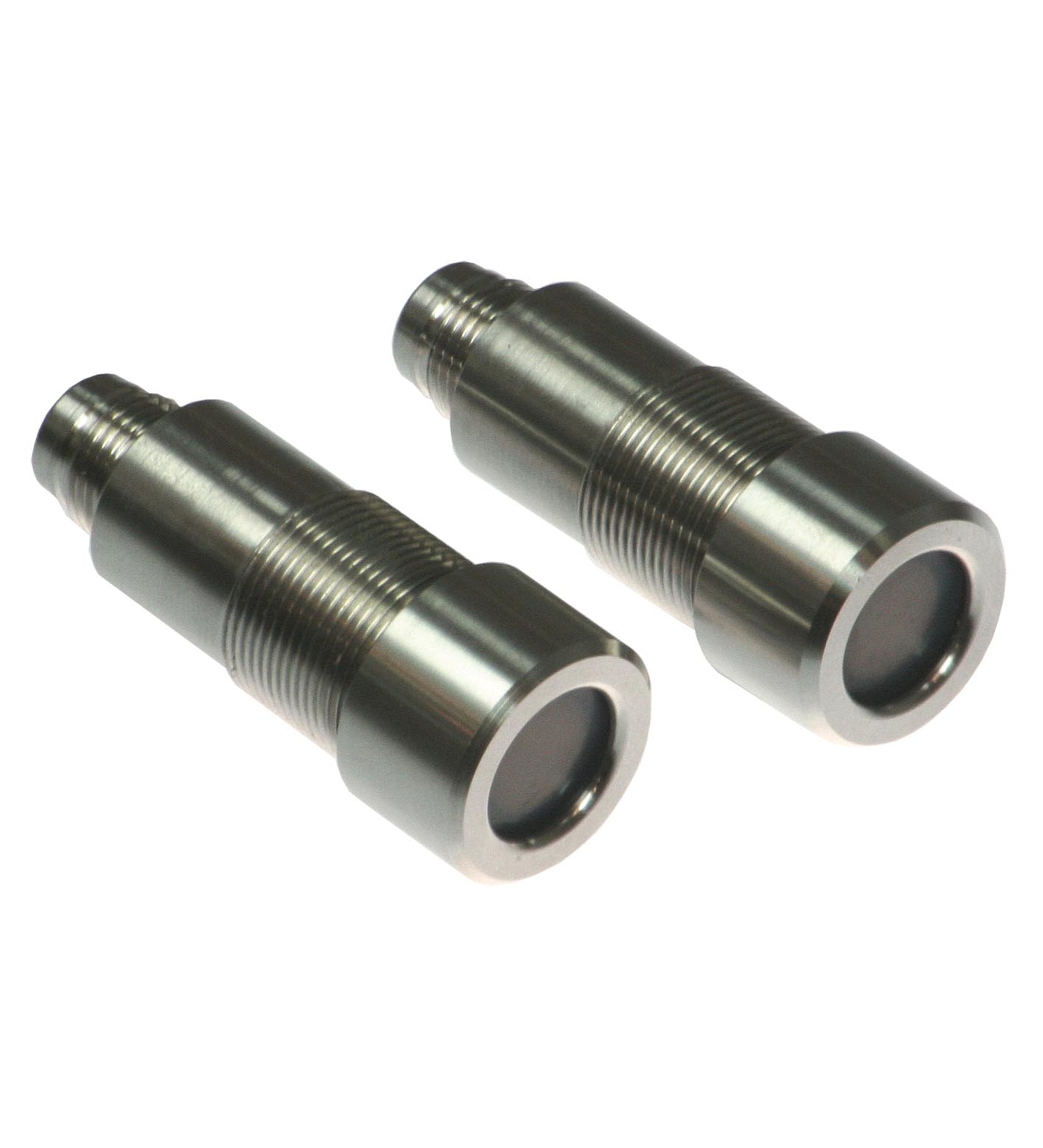

UBEC300-18GH40-SE2-V1

Through-beam ultrasonic barrier. Short design, 40 mm, Stainless steel housing, Chemical-resistant, Series: UB-18GH, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: PNP, NO, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 4-pin, Housing: Stainless steel 1.4435 / AISI 316L <BR>O-ring for cover sealing: EPDM. Sensing range: 100 ... 300 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA. Input type: 1 program input [receiver]switch point 1: -UB ... +1 V, switch point 2: +6 V ... +UB input impedance: > 4.7 kΩ pulse duration: ≥ 1 s 1 test input [emitter]emitter deactivated: +6 V ... +UBinput impedance: > 4.7 kΩ. Output type: PNP, NO. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: < 5 ms. Switching frequency: ≤ 100 Hz. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 4-pin. Degree of protection: IP68 / IP69K. Material: . HousingStainless steel 1.4435 / AISI 316L O-ring for cover sealing: EPDMTransducerPTFE (diaphragm surface): . Housing: Stainless steel 1.4435 / AISI 316L O-ring for cover sealing: EPDM. Transducer: PTFE (diaphragm surface). Mass: 25 g. Dimensions: . Length40 mmDiameter18 mm: . Length: 40 mm. Diameter: 18 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
