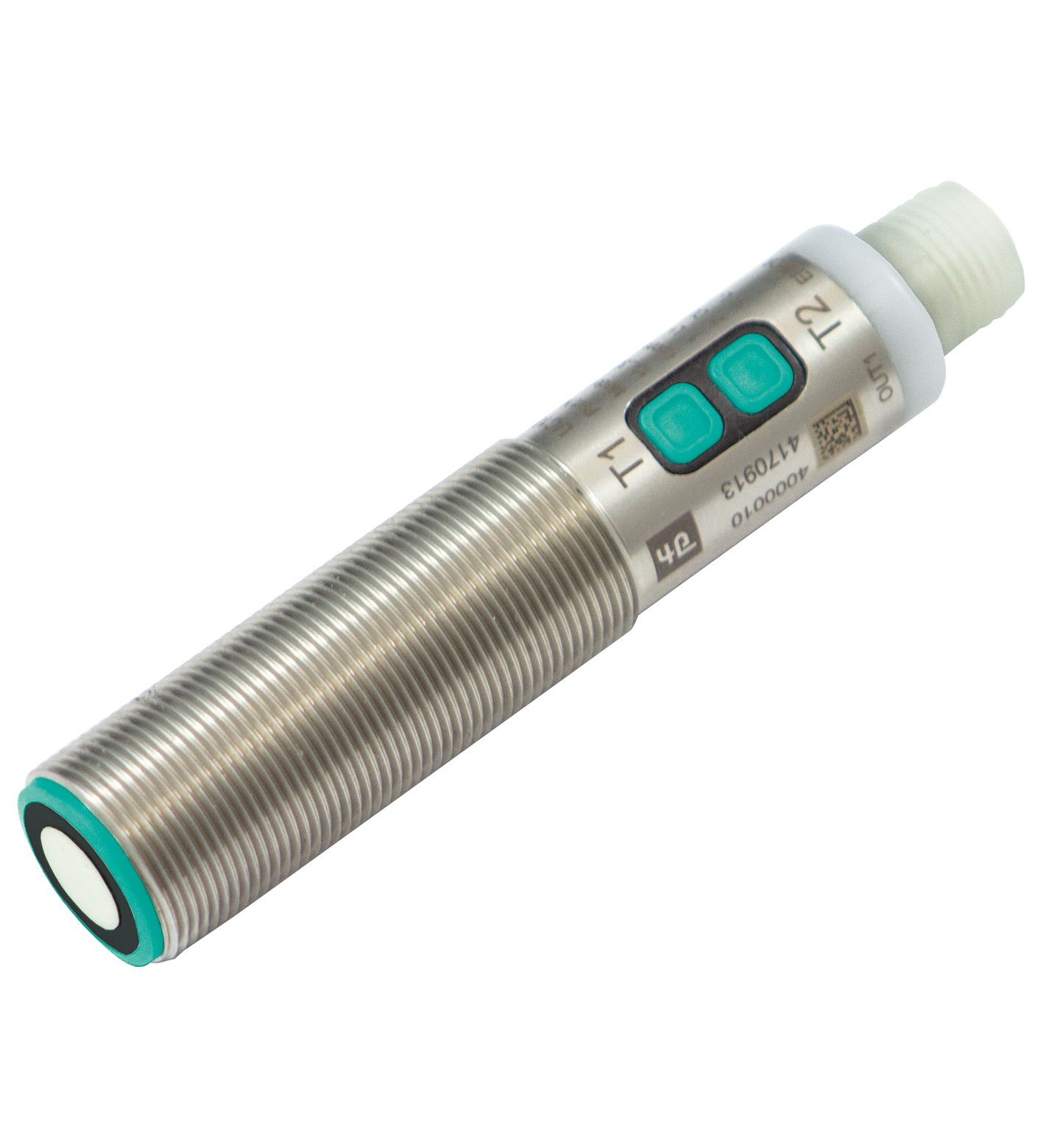

UC1000-18GS-2EP-IO-V15

Ultrasonic sensor. Single head system, IO-Link Interface for process data, parameterization and diagnosis, Programmable via DTM with PACTWARE, Programmable via IrDA (infrared interface), Series: UC-18GS, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Interface type: IO-Link (via C/Q = Pin 4), Interface type: IrDA (infrared interface), Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 70 ... 1000 mm. Adjustment range: 90 ... 1000 mm. Dead band: 0 ... 70 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 255 kHz. Response delay: minimum : 28 ms factory setting: 56 ms. Sensor cycle time: ≥ 14 ms (factory setting) ; programmable to 60 s. Temperature influence: with temperature compensation: ≤ ± 0.75% of the end value 10 min after switching on the sensor (factory setting) with enhanced temperature compensation: ≤ ± 0.75% of the end value 2 min after switching on the sensor without temperature compensation: 0.17 %/K. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: solid: power onflashing: standby mode or IO-Link communication. LED yellow: solid: object in evaluation rangeflashing: switch point programming, object detected. LED red: solid: errorflashing: switch point programming, object not detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Power consumption: ≤ 700 mW. Time delay before availability: ≤ 300 ms. Interface type: IO-Link (via C/Q = Pin 4). IO-Link revision: 1.1. Device profile: Smart Sensor Profile 2. Process data width: 32 bit. Device ID: 0x300603 (3147267). Transfer rate: COM2 (38.4 kBit/s). Min. cycle time: 3 ms. SIO mode support: yes. Compatible master port type: Class A Class B (use 3-pole adapter or 3-wire cable). Interface type: IrDA (infrared interface). Mode: point-to-point connection. Transfer rate: 115.2 kBit/s. Maximum communication distance: 5 cm. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level2.5 V ... UBInput impedance> 22 kΩOutput currentcurrent source < 2.5 mAPulse length≥ 1 ms with external control, low active: . 0 Level: 0 ... 1 V. 1 Level: 2.5 V ... UB. Input impedance: > 22 kΩ. Output current: current source < 2.5 mA. Pulse length: ≥ 1 ms with external control, low active. Synchronization frequency: . Common mode operation≤ 71 HzMultiplex operation≤ 71 Hz / n , n = number of sensors , n ≤ 10: . Common mode operation: ≤ 71 Hz. Multiplex operation: ≤ 71 Hz / n , n = number of sensors , n ≤ 10. Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Rated operating current: 100 mA , short-circuit/overload protected. Switching frequency: factory setting: 10 Hz programmable to 23 Hz. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ ± 0.1 % of full-scale value. Range hysteresis: 1 % of the adjusted operating range (default settings), programmable , min. 1 mm. Off-state current: ≤ 100 µA. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9:2013: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9:2013. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . Housingstainless steel (1.4305 / AISI 303)>BR>PA, PC, POM and PBT plastic partsTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: stainless steel (1.4305 / AISI 303)>BR>PA, PC, POM and PBT plastic parts. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Installation position: any position. Mass: 45 g. Tightening torque, fastening screws: max. 30 Nm. Dimensions: . Length90 mmDiameter18 mm: . Length: 90 mm. Diameter: 18 mm. Output 1: near switch point: 90 mm far switch point: 1000 mm output function: Window mode output behavior: NO contact. Output 2: near switch point: 90 mm far switch point: 500 mm output function: Window mode output behavior: NO contact. Beam width: wide

Brand	Pepperl Fuchs
Lifecycle status	active
