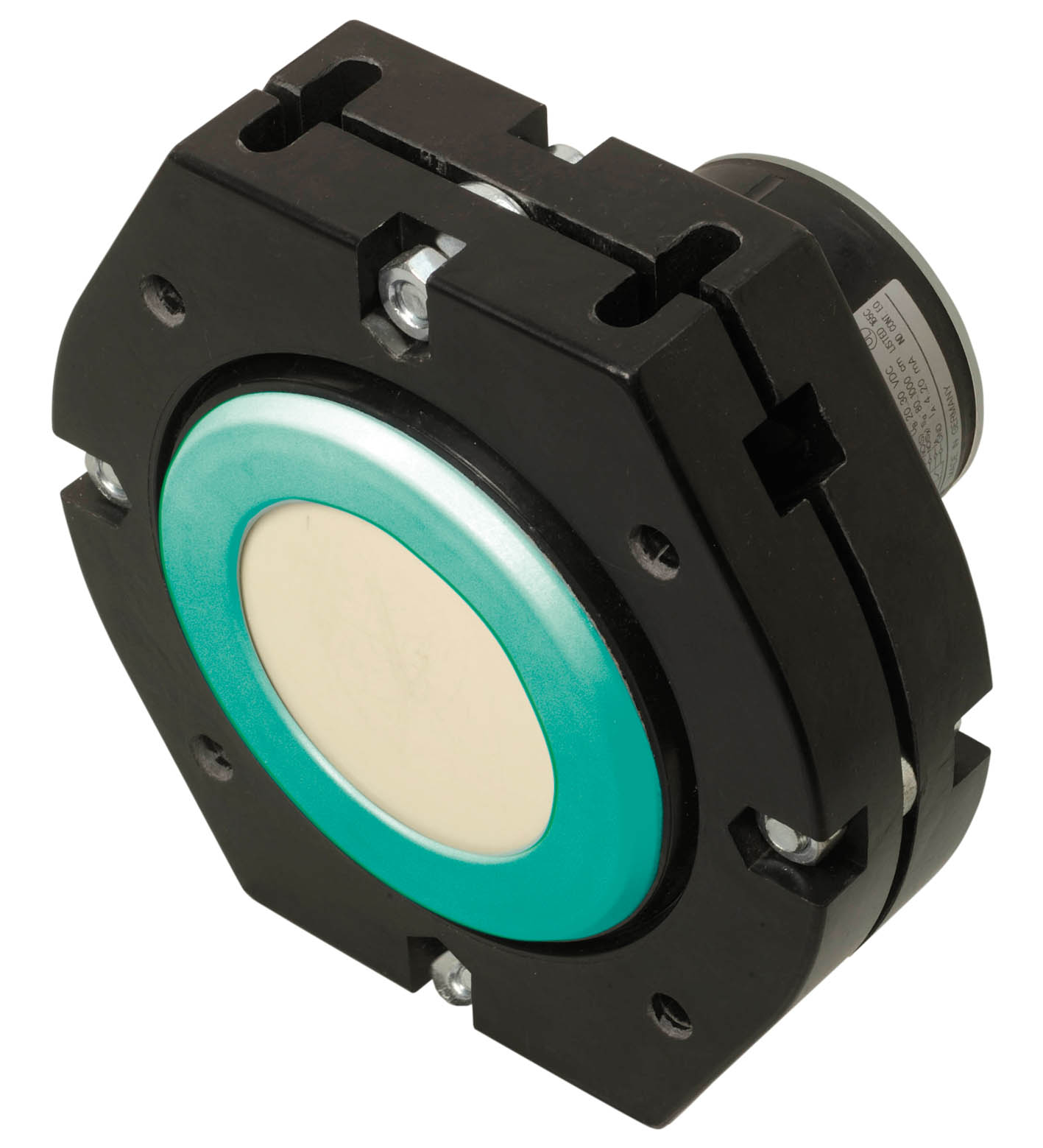

UC10000-F260-IE9R2-Y250793
Ultrasonic sensor. Single head system, Large sensing range, Adjustable Bracket, Programmable by means of Interface (see accessories) and SONPROG, Series: UC-F260, Rated operating voltage: 24 V DC, Ope...
Ultrasonic sensor. Single head system, Large sensing range, Adjustable Bracket, Programmable by means of Interface (see accessories) and SONPROG, Series: UC-F260, Rated operating voltage: 24 V DC, Operating voltage: 15 ... 30 V (including ripple) <BR>In supply voltage interval 15 ... 20 V sensitivity reduced to 20% ... 0%, Output type: 2 switch outputs PNP, NC, Output type: 1 current output 0 ... 20 mA rising ramp , UL approval: cULus Listed, General Purpose. Sensing range: 800 ... 10000 mm. Adjustment range: 800 ... 10000 mm. Dead band: 0 ... 800 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 60 kHz. Time delay before availability: 280 ms. Permissible cable length: max. 300 m. LED yellow: solid: switching state switch outputflashing: misadjustment. Rated operating voltage: 24 V DC. Operating voltage: 15 ... 30 V (including ripple) In supply voltage interval 15 ... 20 V sensitivity reduced to 20% ... 0%. Ripple: ≤ 10 %. No-load supply current: ≤ 75 mA. Input/output type: 1 synchronization connection, bidirectional. 0 Level≤ 3 V1 Level15 ... 30 VInput impedancetyp. 0.9 kΩNumber of sensorsmax. 10: . 0 Level: ≤ 3 V. 1 Level: 15 ... 30 V. Input impedance: typ. 0.9 kΩ. Number of sensors: max. 10. Output type: 2 switch outputs PNP, NC. Repeat accuracy: ± 15 mm. Operating current: 150 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: 800 ms. Output type: 1 current output 0 ... 20 mA rising ramp. Default setting: 800 ... 10000 mm. Linearity error: ≤ 1.5 %. Load resistor: ≤ 300 Ω. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Shock resistance: 30 g , 11 ms period. Vibration resistance: 10 ... 55 Hz , Amplitude ± 1 mm. Connection type: screw terminals , PG 13.5 cable gland. Degree of protection: IP65. Material: . HousingUP 1225 SF/R8Transducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: UP 1225 SF/R8. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Installation position: any position. Mass: 1800 g. Dimensions: . Depth112 mmDiameter160 mm: . Depth: 112 mm. Diameter: 160 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
