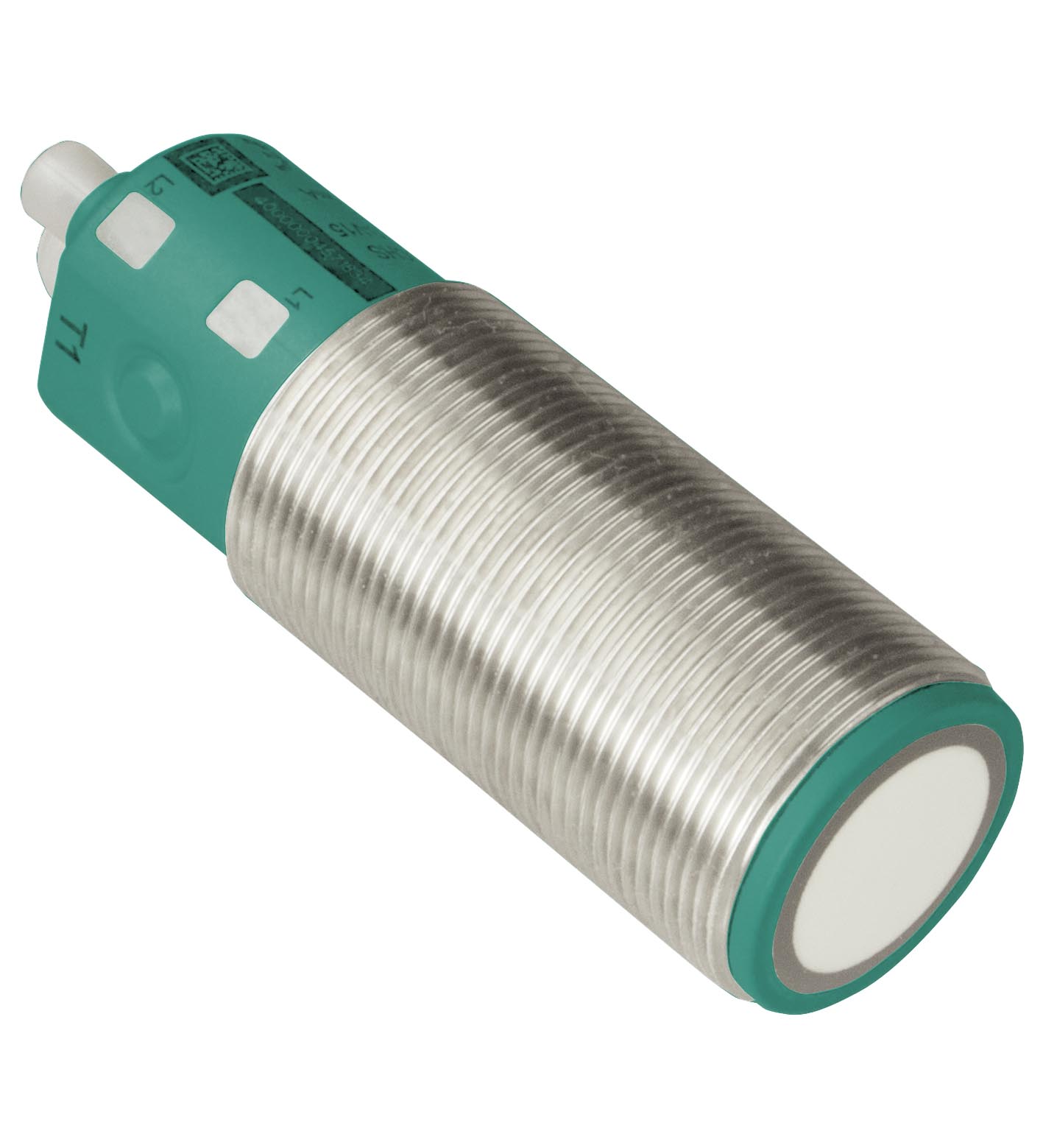

UC2000-30GM-IUEP-IO-V15

Ultrasonic sensor. Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, Switch output and analog output, Series: UC-30GM-IO, Operating voltage: 10 ... 30 V DC , ripple 10 %SS 15 ... 30 V voltage output, Interface type: IO-Link, Output type: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Current output 4 mA ... 20 mA or voltage output 0 V ... 10 V configurable, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 90 ... 2000 mm. Adjustment range: 120 ... 2000 mm. Dead band: 0 ... 90 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 200 kHz. Response delay: minimum : 65 ms factory setting: 125 ms. Non-volatile memory: EEPROM. Write cycles: 100000. LED green: solid: Power onflashing: Standby mode or IO link communication. LED yellow 1: solid: Object in evaluation rangeflashing: Learning function, object detected. LED yellow 2: solid: Object in evaluation rangeflashing: Learning function, object detected. LED red: solid red: Errorred, flashing: program function, object not detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS 15 ... 30 V voltage output. No-load supply current: ≤ 60 mA. Power consumption: ≤ 1 W. Time delay before availability: ≤ 120 ms. Interface type: IO-Link. Protocol: IO-Link V1.0. Transfer rate: Acyclical: typical 95 Bit/s. Cycle time: min. 33.6 ms. Mode: COM2 (38.4 kBit/s). Process data width: 16 bit. SIO mode support: yes. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level4 V ... UBInput impedance> 12 kΩOutput current< 12 mAPulse length0.5 ... 300 ms (level 1)Pulse interval≥ 33 ms (level 0): . 0 Level: 0 ... 1 V. 1 Level: 4 V ... UB. Input impedance: > 12 kΩ. Output current: < 12 mA. Pulse length: 0.5 ... 300 ms (level 1). Pulse interval: ≥ 33 ms (level 0). Synchronization frequency: . Common mode operation≤ 30 HzMultiplex operation≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ): . Common mode operation: ≤ 30 Hz. Multiplex operation: ≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ). Output type: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected Current output 4 mA ... 20 mA or voltage output 0 V ... 10 V configurable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2.5 V. Resolution: current output: evaluation range [mm]/3200 but ≥ 0.35 mmvoltage output: evaluation range [mm]/4000 but ≥ 0.35 mm. Deviation of the characteristic curve: ≤ 0.2 % of full-scale value. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 4 Hz. Range hysteresis: 1 % of the adjusted operating range (default settings), programmable. Load impedance: current output: ≤ 300 Ohm voltage output: ≥ 1000 Ohm. Temperature influence: ≤ 1.5 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . HousingStainless steel 1.4305 / AISI 303 TPU PolyamidesTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: Stainless steel 1.4305 / AISI 303 TPU Polyamides. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 72 g. Dimensions: . Length93 mmDiameter30 mm: . Length: 93 mm. Diameter: 30 mm. Output 1: near switch point: 120 mm far switch point: 2000 mm Output mode: Window mode output behavior: NO contact. Output 2: near limit: 120 mm far limit: 1000 mm Output mode: rising ramp output behavior: Current output 4 mA ... 20 mA. Beam width: wide
