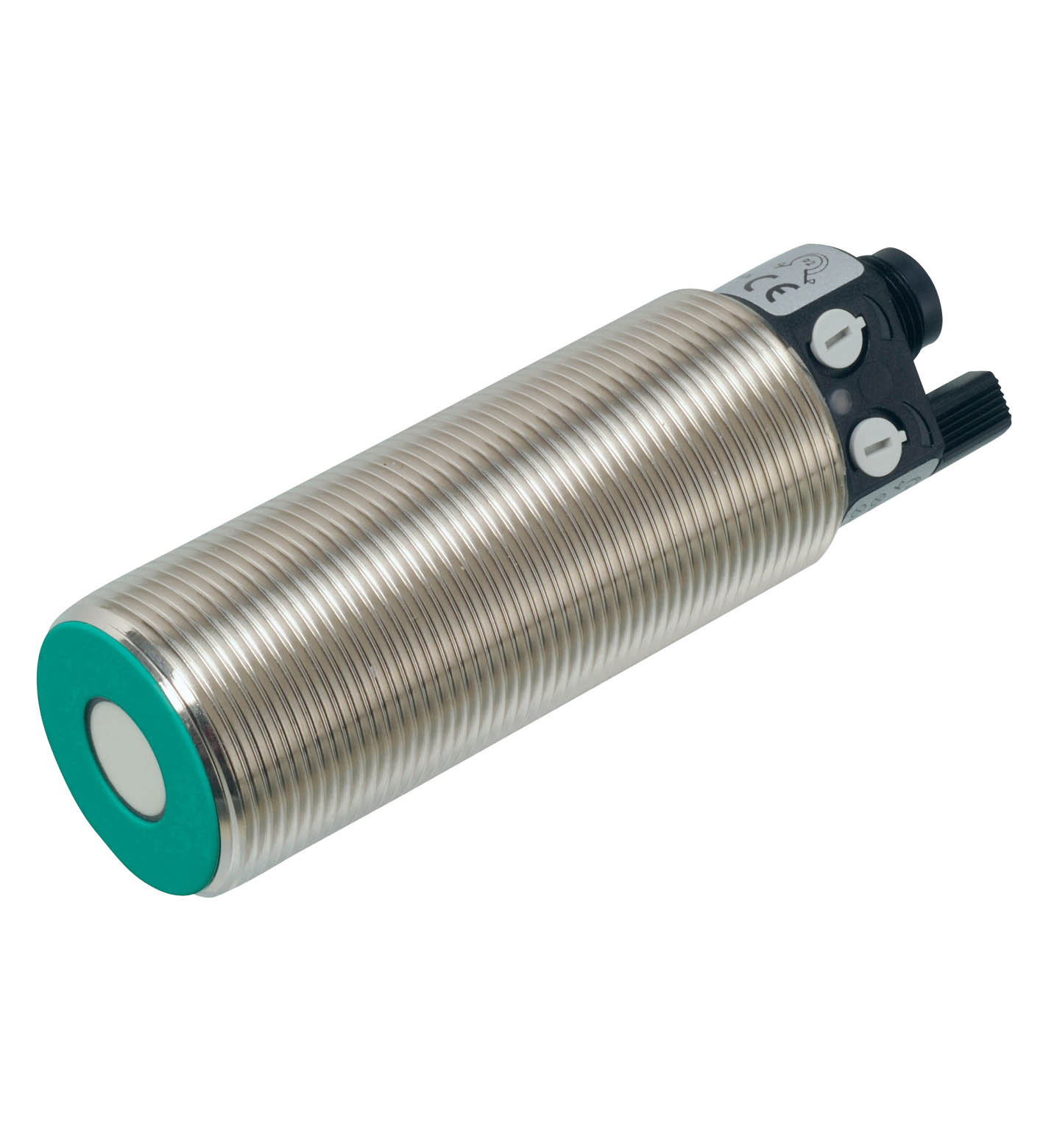

UC2000-30GM70-2E2R2-V15

Ultrasonic sensor. Ultrasonic direct detection sensor, 2 switch outputs, Synchronization options, Temperature compensation, Series: UC-30GM70, Rated operating voltage: 24 V DC, Operating voltage: 12 ....

Ultrasonic sensor. Ultrasonic direct detection sensor, 2 switch outputs, Synchronization options, Temperature compensation, Series: UC-30GM70, Rated operating voltage: 24 V DC, Operating voltage: 12 ... 30 V DC (including ripple), Interface type: Infrared, Output type: 2 switch outputs PNP, NO ( NC contact programmable ), UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: Connector plug M12 x 1 , 5-pin. Sensing range: 100 ... 2000 mm. Adjustment range: 150 ... 2000 mm. Dead band: 0 ... 100 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 200 kHz. Response delay: ≤ 100 ms. Temperature drift: ≤ ± 1.5 % of full-scale value. Time delay before availability: ≤ 125 ms. Permissible cable length: max. 300 m. LED yellow: solid Switching state switch output 1. LED green/yellow: yellow: switching state switch output 2 green: Teach-In. Potentiometer: Switching output 1 and Switching output 2 adjustable. Rated operating voltage: 24 V DC. Operating voltage: 12 ... 30 V DC (including ripple). Ripple: ≤ 10 %. No-load supply current: ≤ 50 mA. Interface type: Infrared. Mode: point-to-point connection. Input/output type: 1 synchronization connection, bidirectional ( Factory setting: synchronized mode ) / Teach-In input. 0 Level≤ 3 V1 Level≥ 15 VInput impedancetyp. 900 ΩNumber of sensorsmax. 10: . 0 Level: ≤ 3 V. 1 Level: ≥ 15 V. Input impedance: typ. 900 Ω. Number of sensors: max. 10. Output type: 2 switch outputs PNP, NO ( NC contact programmable ). Default setting: 150 ... 2000 mm ( adjustable via potentiometer ). Repeat accuracy: ± 3 mm. Operating current: per 150 mA , short-circuit/overload protected. Switching frequency: ≤ 4 Hz. Switching hysteresis: 20 mm ( programmable ). Voltage drop: ≤ 3 V. Off-state current: ≤ 10 µA. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Shock resistance: 30 g , 11 ms period. Vibration resistance: 10 ... 55 Hz , Amplitude ± 1 mm. Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . Housingbrass, nickel-platedTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: brass, nickel-plated. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Installation position: any position. Mass: 140 g. Dimensions: . Length99.3 mmDiameter30 mm: . Length: 99.3 mm. Diameter: 30 mm. Construction type: Cylindrical

Brand	Pepperl Fuchs
Lifecycle status	active
