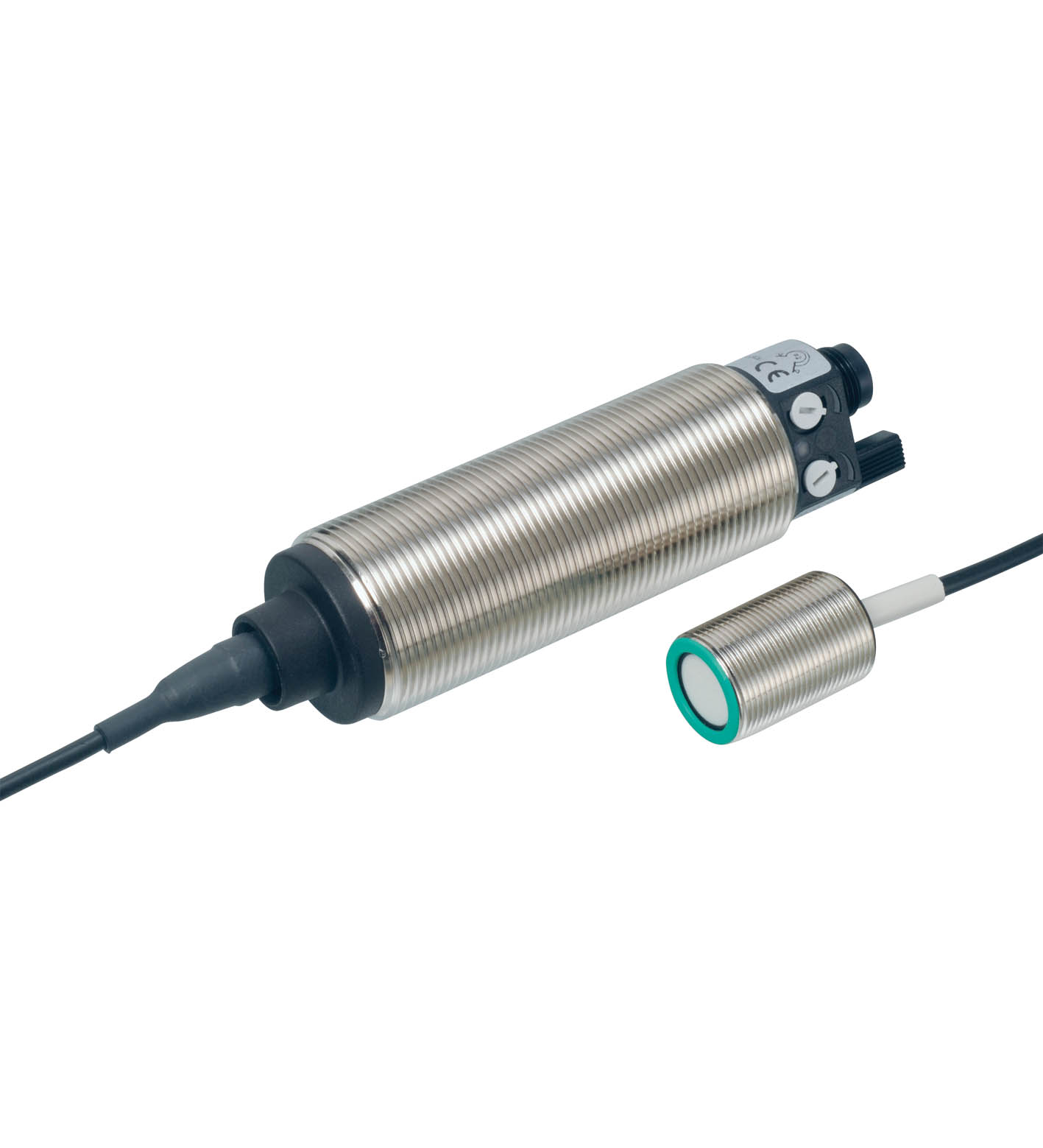

UC2000-30GM70-UE2R2-K-V15

Ultrasonic sensor. Ultrasonic diffuse sensor with separate transducer, Analog output 0 ... 10 V, 1 switch output, Synchronization options, Series: UC-30GM70, Rated operating voltage: 24 V DC, Operatin...

Ultrasonic sensor. Ultrasonic diffuse sensor with separate transducer, Analog output 0 ... 10 V, 1 switch output, Synchronization options, Series: UC-30GM70, Rated operating voltage: 24 V DC, Operating voltage: 20 ... 30 V DC (including ripple), Interface type: Infrared, Output type: 1 switch output PNP, NO ( NC contact programmable ), Output type: 1 voltage output 0 ... 10 V , ascending/descending programmable, UL approval: cULus Listed, Class 2 Power Source. Sensing range: 100 ... 2000 mm. Adjustment range: 150 ... 2000 mm. Dead band: 0 ... 100 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 200 kHz. Response delay: ≤ 100 ms. Temperature drift: ≤ ± 1.5 % of full-scale value. Time delay before availability: ≤ 125 ms. Permissible cable length: max. 300 m. LED yellow: switching state switch output. LED green/yellow: yellow: object in evaluation range green: Teach-In. Potentiometer: switching output adjustable. Rated operating voltage: 24 V DC. Operating voltage: 20 ... 30 V DC (including ripple). Ripple: ≤ 10 %. No-load supply current: ≤ 50 mA. Interface type: Infrared. Mode: point-to-point connection. Input/output type: 1 synchronization connection, bidirectional ( Factory setting: synchronized mode ) / Teach-In input. 0 Level≤ 3 V1 Level≥ 15 VInput impedancetyp. 900 ΩNumber of sensorsmax. 10: . 0 Level: ≤ 3 V. 1 Level: ≥ 15 V. Input impedance: typ. 900 Ω. Number of sensors: max. 10. Output type: 1 switch output PNP, NO ( NC contact programmable ). Default setting: 150 ... 2000 mm ( adjustable via potentiometer ). Repeat accuracy: ± 3 mm. Operating current: 300 mA , short-circuit/overload protected. Switching frequency: ≤ 4 Hz. Switching hysteresis: 20 mm ( programmable ). Voltage drop: ≤ 3 V. Off-state current: ≤ 10 µA. Output type: 1 voltage output 0 ... 10 V , ascending/descending programmable. Default setting: rising ramp ; evaluation limit A1: 150 mm ; evaluation limit A2: 2000 mm. Load resistor: ≥ 2 kΩ. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Shock resistance: 30 g , 11 ms period. Vibration resistance: 10 ... 55 Hz , Amplitude ± 1 mm. Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . Housingbrass, nickel-platedCablePVCTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: brass, nickel-plated. Cable: PVC. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Installation position: any position. Mass: 190 g. Dimensions: . Length111.3 mmDiameter30 mm: . Length: 111.3 mm. Diameter: 30 mm. Construction type: Cylindrical. Cable length: 165 cm

Brand	Pepperl Fuchs
Lifecycle status	active
