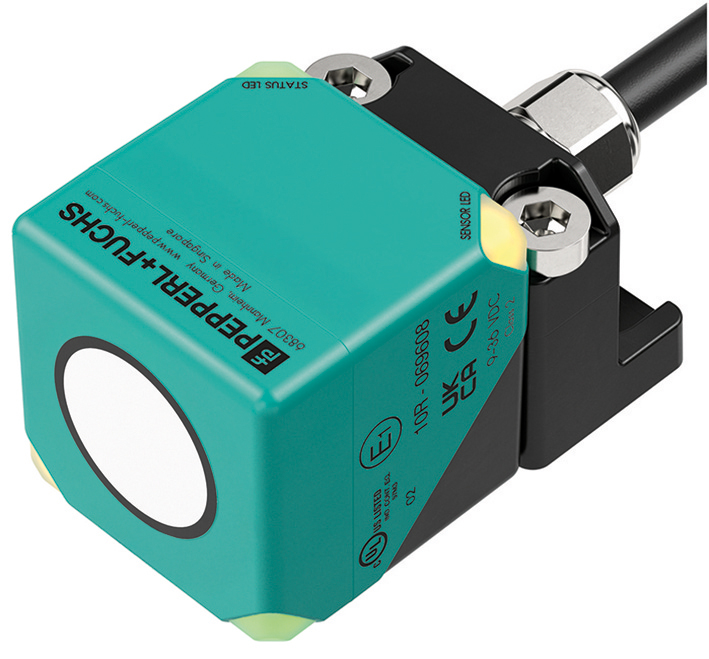

UC2000-L2M-B16-0,3M-APS5P-M

Ultrasonic sensor. Single head system, CANopen interface, E1-Type approval, High EMC resistance, Series: UC-L2, Interface type: CAN, Communication protocol: CANopen, UL approval: cULus Listed, Class 2...

Ultrasonic sensor. Single head system, CANopen interface, E1-Type approval, High EMC resistance, Series: UC-L2, Interface type: CAN, Communication protocol: CANopen, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, UN/ECE Regulation No. 10 (E1): Type-approval number: 10R-069608, Connection type: fixed cable with plug, Housing: PA-GF35, Connection assembly: AMP connector Superseal 282107-1 <BR>AMP contact Superseal 282109-1. Sensing range: 80 ... 2000 mm. Adjustment range: 120 ... 2000 mm. Dead band: 0 ... 80 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Linearity error: < 20 mm. Temperature drift: < +/- 20 mm. Time delay before availability: ≤ 700 ms. MTTFd: 421 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. LED yellow: object in evaluation range. LED red/green: CANopen status display. Operating voltage: 9 ... 30 V. No-load supply current: ≤ 50 mA. Power consumption: typ. 0.6 W. Interface type: CAN. Communication protocol: CANopen. Process data: Input: 48 Bit - measured value (distance value) 16 Bit - signal quality 8 Bit - counter-1 16 Bit or counter-2 8 Bit - status register 8 Bit. Node ID: programmable. Vendor ID: 173 (0xAD). Product code: 50331650 (0x03000002). Transfer rate: 250 kBit/s , programmable 125 ... 1000 kBit/s. Termination: external. Cycle time: 28.5 ms preset , programmable. Min. cycle time: 28.5 ms. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019Communication interfaceCiA 310, Ver. 4.2.0: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. Communication interface: CiA 310, Ver. 4.2.0. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. UN/ECE Regulation No. 10 (E1): Type-approval number: 10R-069608. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP68. Material: . HousingPA-GF35: . Housing: PA-GF35. Connector: . Number of pins5Connection assemblyAMP connector Superseal 282107-1 AMP contact Superseal 282109-1: . Number of pins: 5. Connection assembly: AMP connector Superseal 282107-1 AMP contact Superseal 282109-1. Cable: . Cable diameter7.25 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblackNumber of cores5Core cross section0.8 mm2LengthL345 mm ± 5 mm: . Cable diameter: 7.25 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: black. Number of cores: 5. Core cross section: 0.8 mm2. Length: 345 mm ± 5 mm. Mass: 245 g. Dimensions: . Height40 mmWidth40 mmLength67 mm: . Height: 40 mm. Width: 40 mm. Length: 67 mm. Default setting: measured value "distance", signal quality, counter-2 (object 0x2000). Beam width: wide (object 0x4000). Synchronization: deactivated (object 0x2020). Node ID: 16. Transfer rate: 250 kBit/s

Brand	Pepperl Fuchs
Lifecycle status	active
