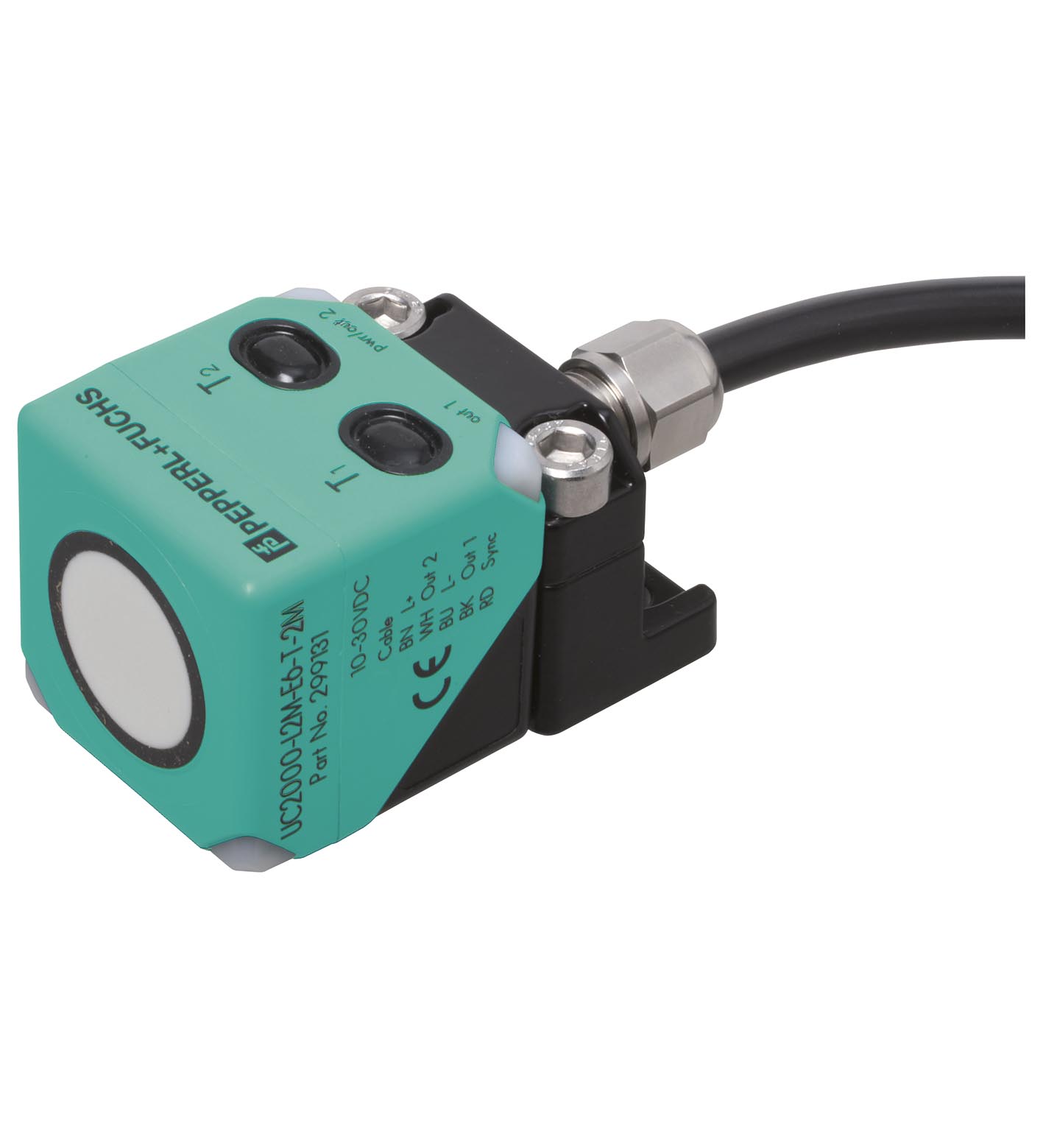

UC2000-L2M-E6-T-2M

Ultrasonic sensor. Single head system, Extended temperature range, Cable connection, Rugged metal base, Series: UC-L2, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Interface type: Ser...

Ultrasonic sensor. Single head system, Extended temperature range, Cable connection, Rugged metal base, Series: UC-L2, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Interface type: Serial interface (programming adapter required) <BR>9600 BPS, no parity, 8 data bits, 1 stop bit, Output type: 2 switch outputs PNP, NO/NC, programmable, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable , 5-pin. Sensing range: 60 ... 2000 mm. Adjustment range: 80 ... 2000 mm. Dead band: 0 ... 60 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Response delay: minimum: 60 ms factory setting: 120 ms. Time delay before availability: ≤ 1600 ms. LED green: Operating display. LED yellow 1: switching state switch output 1. LED yellow 2: switching state switch output 2. LED red: error. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Interface type: Serial interface (programming adapter required) 9600 BPS, no parity, 8 data bits, 1 stop bit. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level4 V ... UBInput impedance> 12 kΩOutput current< 12 mAPulse length0.5 ... 300 ms (level 1)Pulse interval≥ 33 ms (level 0): . 0 Level: 0 ... 1 V. 1 Level: 4 V ... UB. Input impedance: > 12 kΩ. Output current: < 12 mA. Pulse length: 0.5 ... 300 ms (level 1). Pulse interval: ≥ 33 ms (level 0). Synchronization frequency: . Common mode operation≤ 30 HzMultiplex operation≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ): . Common mode operation: ≤ 30 Hz. Multiplex operation: ≤ 33 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ). Output type: 2 switch outputs PNP, NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2 V. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 5 Hz. Range hysteresis: programmable , preset to 1 mm. Temperature influence: < 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable , 5-pin. Degree of protection: IP67. Material: . HousingPA-GF35CablePURTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: PA-GF35. Cable: PUR. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Cable: . Sheath diameter7.25 mmBending radius> 37.3 mm , fixed installation > 74.7 mm , movable installationCore cross section5 x 0.82 mm2LengthL2 m: . Sheath diameter: 7.25 mm. Bending radius: > 37.3 mm , fixed installation > 74.7 mm , movable installation. Core cross section: 5 x 0.82 mm2. Length: 2 m. Mass: 345 g. Dimensions: . Height40 mmWidth40 mmLength40 mm: . Height: 40 mm. Width: 40 mm. Length: 40 mm. Output 1: near switch point: 80 mm far switch point: 2000 mm Output mode: Window mode output behavior: NO contact. Output 2: near switch point: 150 mm far switch point: 1000 mm Output mode: Window mode output behavior: NO contact. Beam width: wide. Evaluation procedure: averaging (MxN)M = 5N = 2. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv

Brand	Pepperl Fuchs
Lifecycle status	active
