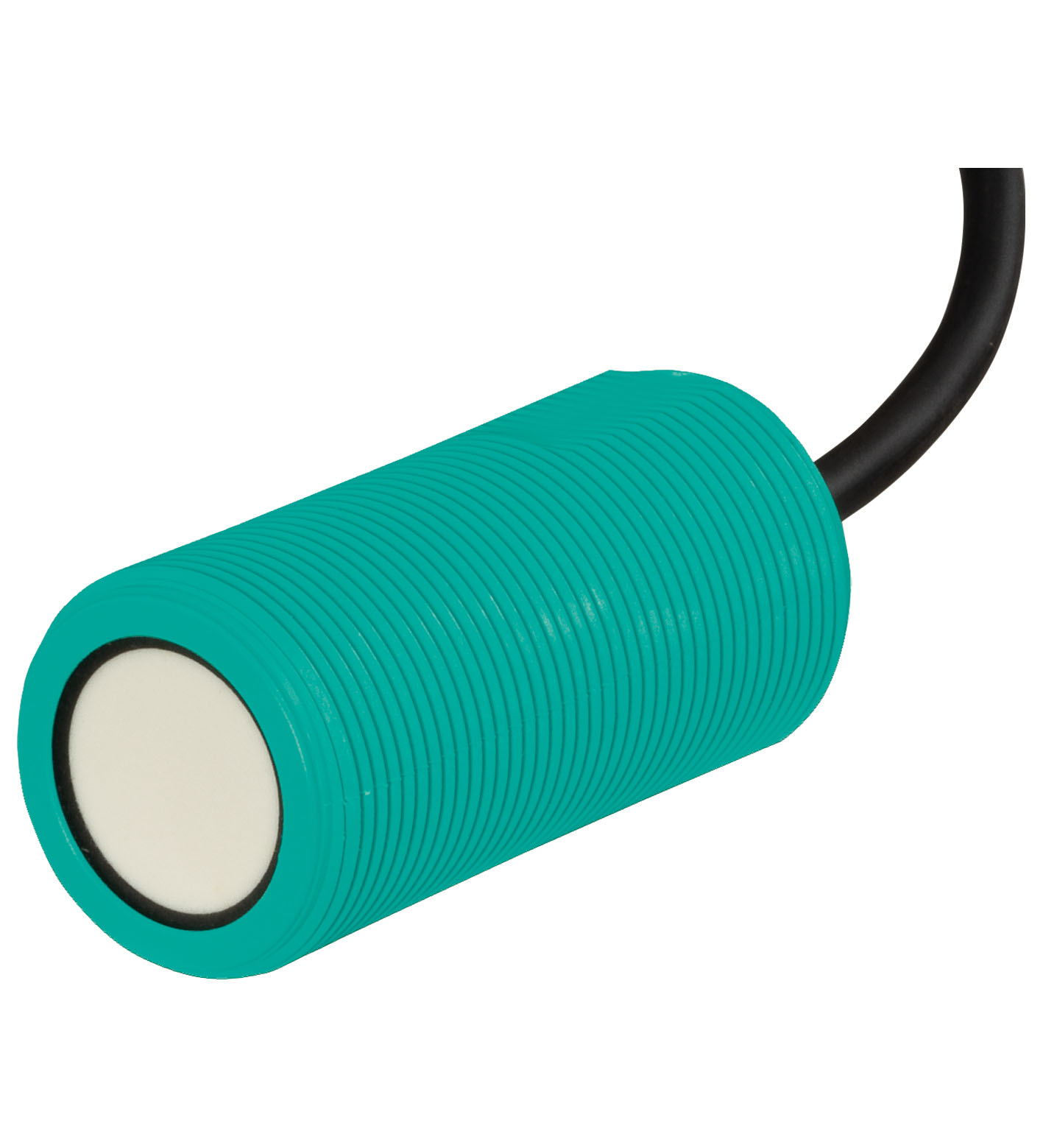

UC2500-30GK-B26-Y70151851
Ultrasonic sensor. Single head system, Physical LIN interface, Temperature compensation, M30 plastic housing, Series: ultrasonic module, Operating voltage: 8 ... 18 V DC , ripple 10 %<sub>SS</sub>, In...
Ultrasonic sensor. Single head system, Physical LIN interface, Temperature compensation, M30 plastic housing, Series: ultrasonic module, Operating voltage: 8 ... 18 V DC , ripple 10 %<sub>SS</sub>, Interface type: Physical LIN interface, UL approval: UL Recognized , General purpose , Class 2 power source, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable, Housing: plastic , PBT. Sensing range: 150 ... 2500 mm. Dead band: 0 ... 150 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 120 kHz. Operating voltage: 8 ... 18 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA at 12 V DC. Power consumption: ≤ 250 mW in the measurement operating mode. Time delay before availability: ≤ 70 ms. Interface type: Physical LIN interface. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 55 ms. Resolution: 10 mm (corresponding to 1 LSB). Repeat accuracy: 10 mm (corresponding to 1 LSB). Temperature influence: 3 % of full-scale value over the entire temperature range. Electromagnetic compatibility: . Directive 2014/30/EUEN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.: . Directive 2014/30/EU: EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.. UL approval: UL Recognized , General purpose , Class 2 power source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable. Degree of protection: IP65. Material: . Housingplastic , PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: plastic , PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Cable: . Cable diameter3 mmMaterialPURCore cross section0.34 mm2LengthL1 m: . Cable diameter: 3 mm. Material: PUR. Core cross section: 0.34 mm2. Length: 1 m. Mass: 65 g. Dimensions: . Diameter30 mm: . Diameter: 30 mm. Default setting: Temperature compensation Address setting 7. Synchronization: Firmware. Scope of delivery: 2 nuts plastic
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
