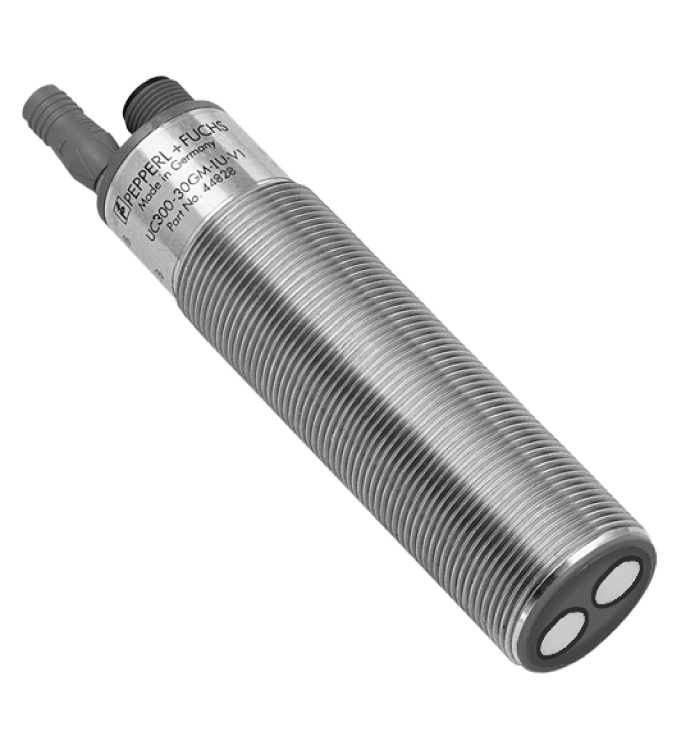

UC300-30GM-IUR2-V15
Ultrasonic sensor. Twin-head system, Very small unusable area, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog curre...
Ultrasonic sensor. Twin-head system, Very small unusable area, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, Series: UC-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit, Output type: 1 current output 4 ... 20 mA<BR>1 voltage output 0 ... 10 V, UL approval: cULus Listed, General Purpose. Sensing range: 15 ... 300 mm. Adjustment range: 15 ... 300 mm. Dead band: 0 ... 15 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 380 kHz. Response delay: 21 ms minimum63 ms factory setting. LED green: solid: Power-onflashing: Standby mode or program function object detected. LED yellow 1: solid: object in evaluation rangeflashing: program function. LED yellow 2: solid: object in detection rangeflashing: program function. LED red: solid: temperature/program plug not connectedflashing: fault or program function object not detected. Temperature/teach-in connector: Temperature compensation , Evaluation range programming , output function setting. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. Power consumption: ≤ 900 mW. Time delay before availability: ≤ 500 ms. Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit. Synchronization: bi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 95 HzMultiplex operation≤ 95 Hz / n , n = number of sensors , n ≤ 5: . Common mode operation: max. 95 Hz. Multiplex operation: ≤ 95 Hz / n , n = number of sensors , n ≤ 5. Output type: 1 current output 4 ... 20 mA1 voltage output 0 ... 10 V. Resolution: evaluation range [mm]/4000, but ≥ 0.05 mm. Deviation of the characteristic curve: ≤ 0.2 % of full-scale value. Repeat accuracy: ≤ 0.1 % of full-scale value. Load impedance: current output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm. Temperature influence: ≤ 2 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 70 °C (32 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . Housingstainless steel (1.4305 / AISI 303)PBT plastic partsTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: stainless steel (1.4305 / AISI 303)PBT plastic parts. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 170 g. Dimensions: . Length114 mmDiameter30 mm: . Length: 114 mm. Diameter: 30 mm. Output: evaluation limit A1: 15 mm evaluation limit A2: 300 mm rising ramp
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
