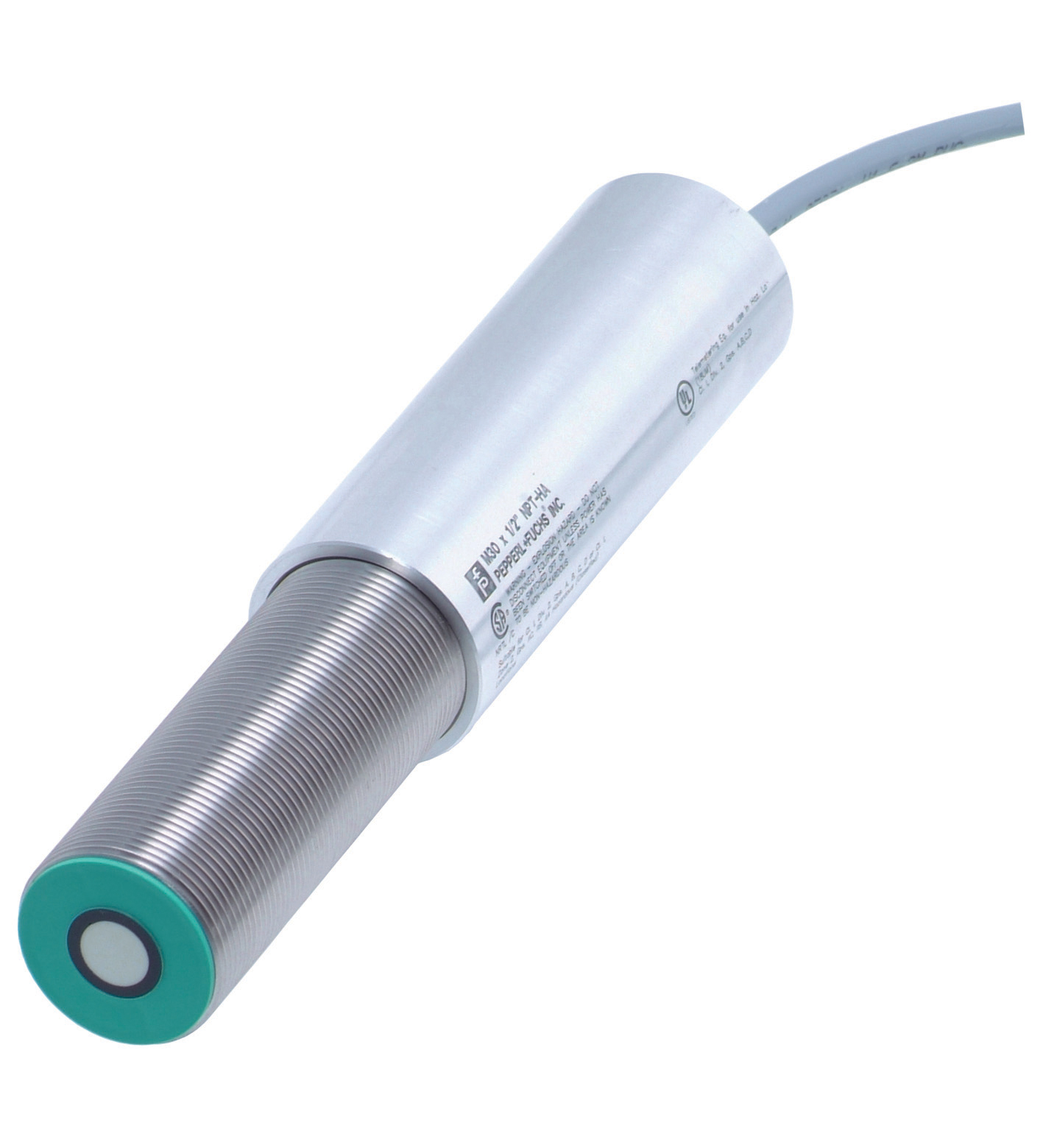

UC500-30GM-IU-V1-HA
Ultrasonic sensor. Single head system, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, A...
Ultrasonic sensor. Single head system, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, Analog current and voltage output, Adjustable acoustic power and sensitivity, Series: UC-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %<sub>SS</sub>, Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit, Output type: 1 current output 4 ... 20 mA<BR>1 voltage output 0 ... 10 V. Sensing range: 30 ... 500 mm. Adjustment range: 50 ... 500 mm. Dead band: 0 ... 30 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 380 kHz. Response delay: 21 ms minimum63 ms factory setting. LED green: solid: Power-onflashing: Standby mode or program function object detected. LED yellow 1: solid: object in evaluation rangeflashing: program function. LED yellow 2: solid: object in detection rangeflashing: program function. LED red: solid: temperature/program plug not connectedflashing: fault or program function object not detected. Temperature/teach-in connector: Temperature compensation , Evaluation range programming , output function setting. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. Power consumption: ≤ 900 mW. Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit. Synchronization frequency: . Common mode operationmax. 95 HzMultiplex operation≤ 95/n Hz, n = number of sensors: . Common mode operation: max. 95 Hz. Multiplex operation: ≤ 95/n Hz, n = number of sensors. Output type: 1 current output 4 ... 20 mA1 voltage output 0 ... 10 V. Resolution: evaluation range [mm]/4000, but ≥ 0.05 mm. Deviation of the characteristic curve: ≤ 0.2 % of full-scale value. Repeat accuracy: ≤ 0.1 % of full-scale value. Load impedance: current output: ≤ 500 Ohm voltage output: ≥ 1000 Ohm. Temperature influence: ≤ 2 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003. UL approval: . Ordinary LocationE87056Hazardous LocationE199034Control drawing116-0168: . Ordinary Location: E87056. Hazardous Location: E199034. Control drawing: 116-0168. CSA approval: . Ordinary Location1007121: . Ordinary Location: 1007121. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Female cordset , M12 x 1 , 5-pin , 4-wire. Degree of protection: IP65. Connection: Female cordset , M12 x 1 , 5-pin , 4-wire. Material: . Housing1.4303 stainless steelplastic parts PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: 1.4303 stainless steelplastic parts PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 391 g. Dimensions: . Length184 mmDiameter35 mm: . Length: 184 mm. Diameter: 35 mm. Note: Individual components: UC-500-30GM-IUR2-V15; V1-G-2M-PVC; ADAPT-ALUM*-M30X1/2" NPT/HB****
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
