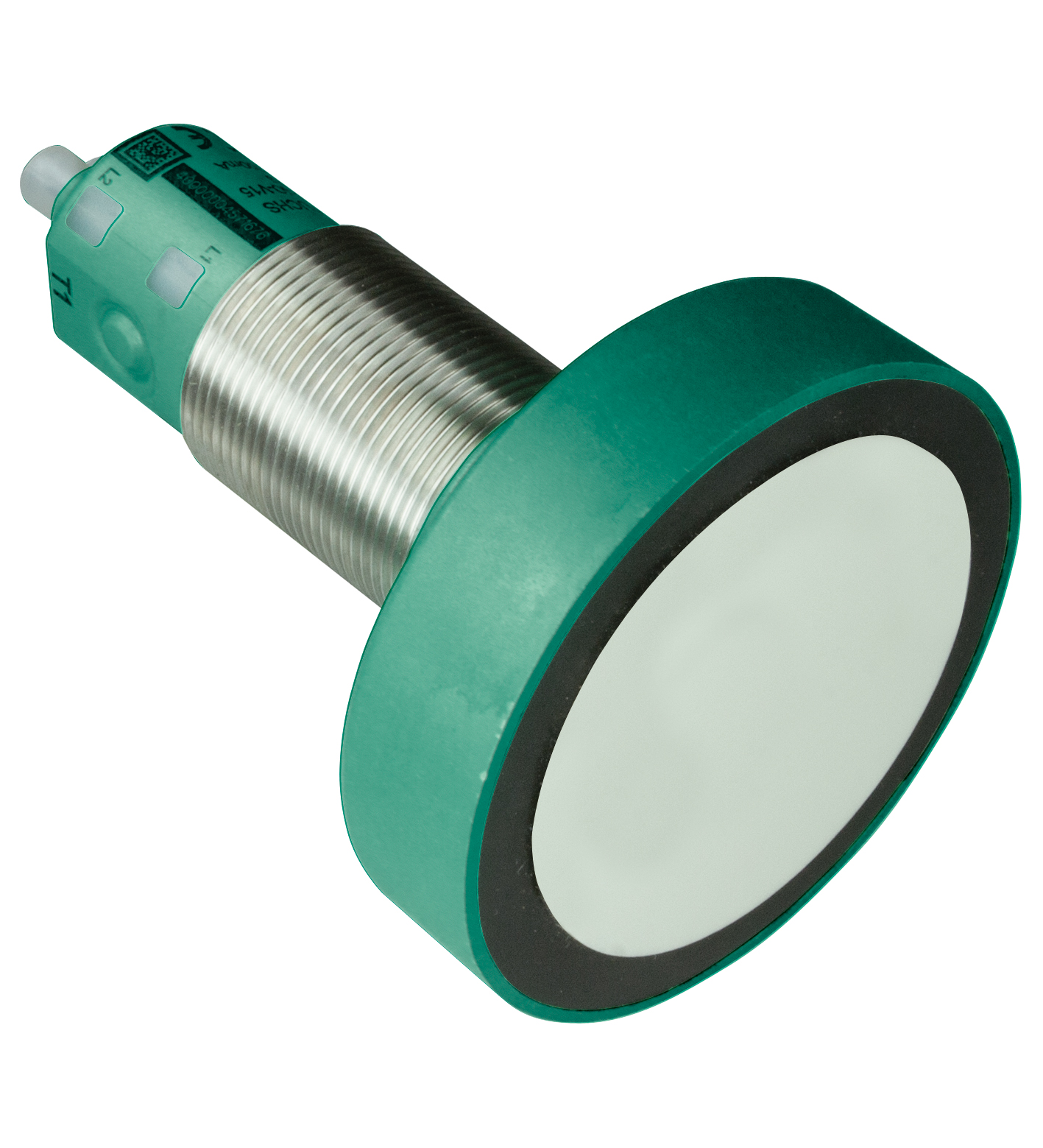

UC6000-30GM-2EP-IO-V15

Ultrasonic sensor. Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, 2 programmable switch outputs, Series: UC-30GM-IO, Operating voltage: 10 ......

Ultrasonic sensor. Single head system, IO-Link interface for service and process data, Programmable via DTM with PACTWARE, 2 programmable switch outputs, Series: UC-30GM-IO, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Interface type: IO-Link, Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, UL approval: cULus Listed, Class 2 Power Source, CCC approval: CCC approval / marking not required for products rated ≤36 V. Sensing range: 350 ... 6000 mm. Adjustment range: 400 ... 6000 mm. Dead band: 0 ... 350 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 65 kHz. Response delay: minimum : 140 ms factory setting: 280 ms. Non-volatile memory: EEPROM. Write cycles: 100000. LED green: solid: Power onflashing: Standby mode or IO link communication. LED yellow 1: solid: Object in evaluation rangeflashing: Learning function, object detected. LED yellow 2: solid: Object in evaluation rangeflashing: Learning function, object detected. LED red: solid red: Errorred, flashing: program function, object not detected. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 60 mA. Power consumption: ≤ 1 W. Time delay before availability: ≤ 200 ms. Interface type: IO-Link. Protocol: IO-Link V1.0. Transfer rate: Acyclical: typical 44 Bit/s. Cycle time: min. 72 ms. Mode: COM2 (38.4 kBit/s). Process data width: 16 bit. SIO mode support: yes. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level4 V ... UBInput impedance> 12 kΩOutput current< 12 mAPulse length0.5 ... 300 ms (level 1)Pulse interval≥ 74 ms (level 0): . 0 Level: 0 ... 1 V. 1 Level: 4 V ... UB. Input impedance: > 12 kΩ. Output current: < 12 mA. Pulse length: 0.5 ... 300 ms (level 1). Pulse interval: ≥ 74 ms (level 0). Synchronization frequency: . Common mode operation≤ 13 HzMultiplex operation≤ 14 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ): . Common mode operation: ≤ 13 Hz. Multiplex operation: ≤ 14 Hz / n , n = number of sensors , n ≤ 10 (factory setting: n = 5 ). Output type: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 1.5 Hz. Range hysteresis: 1 % of the adjusted operating range (default settings), programmable. Temperature influence: ≤ 1.5 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP67. Material: . HousingStainless steel 1.4305 / AISI 303 TPU PolyamidesTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: Stainless steel 1.4305 / AISI 303 TPU Polyamides. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 165 g. Dimensions: . Length112 mmDiameter73 mm: . Length: 112 mm. Diameter: 73 mm. Output 1: near switch point: 400 mm far switch point: 6000 mm output function: Window mode output behavior: NO contact. Output 2: near switch point: 500 mm far switch point: 3000 mm output function: Window mode output behavior: NO contact. Beam width: wide

Brand	Pepperl Fuchs
Lifecycle status	active
