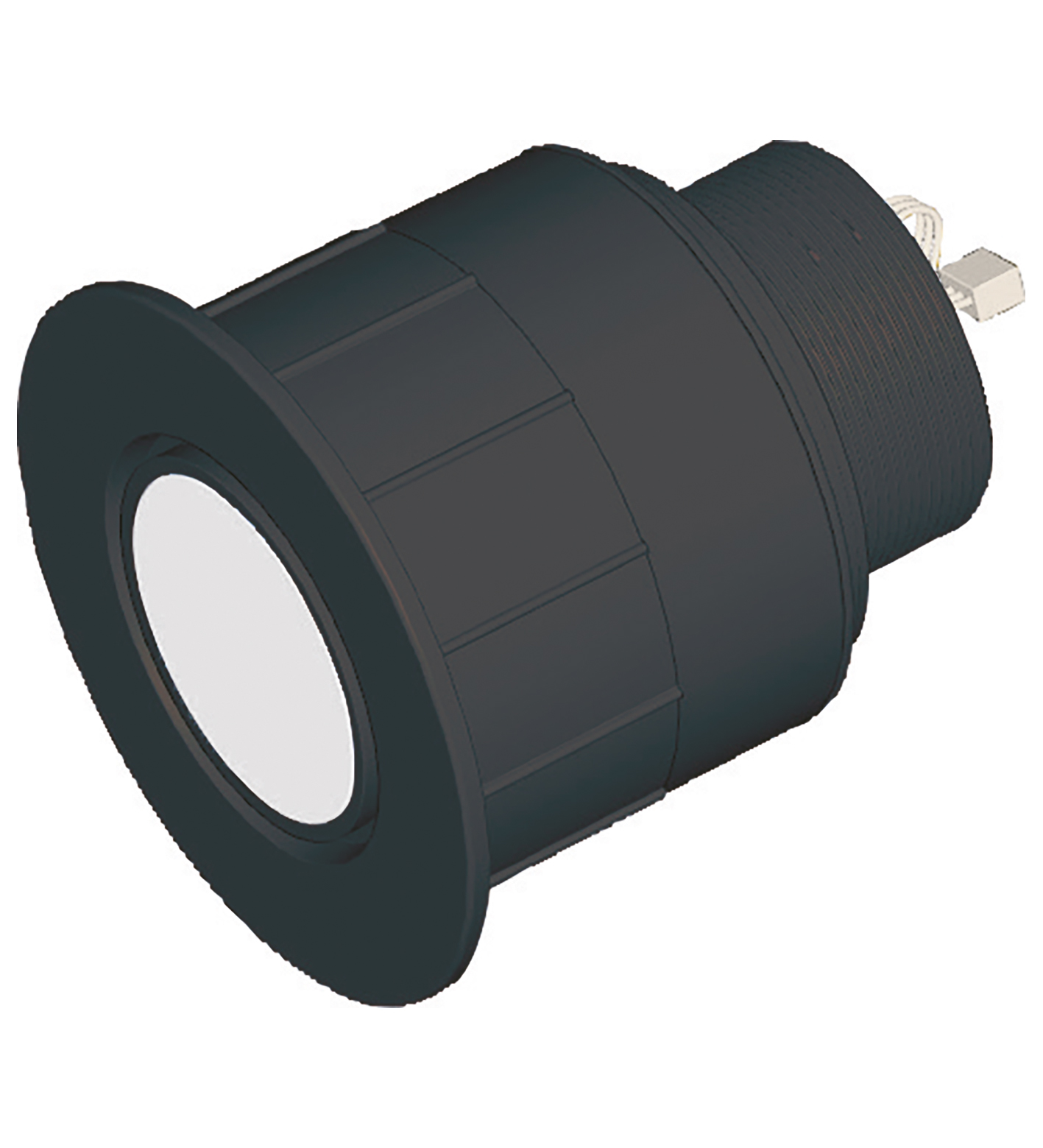

UC7000-50GK-B26-0,15M-Y
Ultrasonic sensor. Single head system, Thread M50, Physical LIN interface, Temperature compensation, Series: ultrasonic module, Operating voltage: 8 ... 18 V DC , ripple 10 %<sub>SS</sub>, Interface t...
Ultrasonic sensor. Single head system, Thread M50, Physical LIN interface, Temperature compensation, Series: ultrasonic module, Operating voltage: 8 ... 18 V DC , ripple 10 %<sub>SS</sub>, Interface type: Physical LIN interface, Connection type: fixed cable with plug, Housing: Polyester (GRP). Sensing range: 500 ... 7000 mm. Dead band: 0 ... 500 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 50 kHz. Operating voltage: 8 ... 18 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA at 12 V DC. Power consumption: ≤ 250 mW in the measurement operating mode. Time delay before availability: ≤ 165 ms. Interface type: Physical LIN interface. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 150 ms. Resolution: 4 mm. Repeat accuracy: ≤ 0.1 % of full-scale value. Temperature influence: 3 % of full-scale value over the entire temperature range. Electromagnetic compatibility: . Directive 2014/30/EUEN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.: . Directive 2014/30/EU: EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP66 / IP67 ( connector excluded ). Material: . HousingPolyester (GRP)Enclosure coverPBTTransducerepoxy resin/hollow glass sphere mixture: . Housing: Polyester (GRP). Enclosure cover: PBT. Transducer: epoxy resin/hollow glass sphere mixture. Connector: . TypeJST connector: PHR-3Number of pins3Connection assembly: . Type: JST connector: PHR-3. Number of pins: 3. Connection assembly: . Cable: . Cable diameter3 x 0.25 mm2MaterialPVCLengthL150 mm: . Cable diameter: 3 x 0.25 mm2. Material: PVC. Length: 150 mm. Mass: 380 g. Dimensions: . Height90 mmWidth92.5 mmLength92.5 mm: . Height: 90 mm. Width: 92.5 mm. Length: 92.5 mm. Output: Temperature compensation Address setting 7. Scope of delivery: 1 Nut plastic
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
