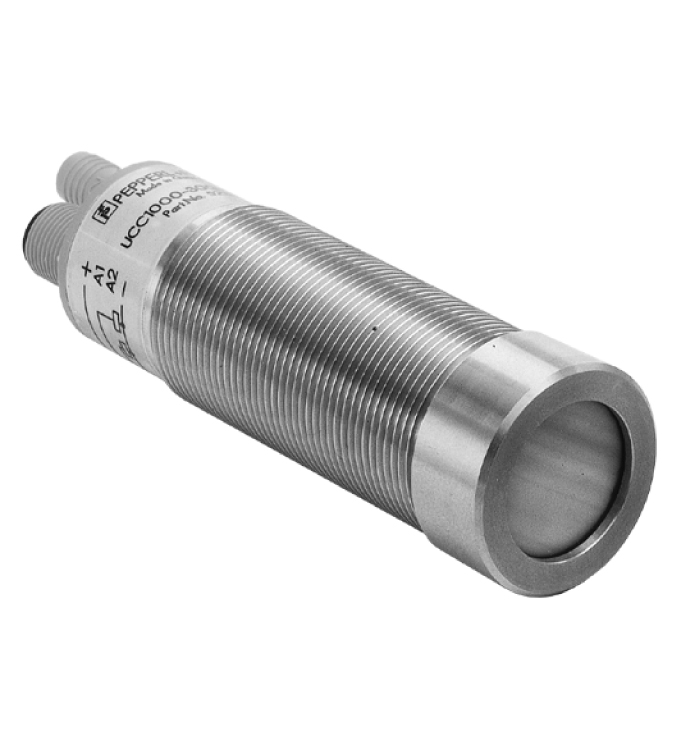

UCC1000-30GM-E6R2-V15

Ultrasonic sensor. Single head system, High chemical resistance through PTFE coated transducer surface, Parameterization interface for the application-specific adjustment of the sensor setting via the...

Ultrasonic sensor. Single head system, High chemical resistance through PTFE coated transducer surface, Parameterization interface for the application-specific adjustment of the sensor setting via the service program ULTRA 3000, 2 programmable switch outputs, Series: UCC-30GM, Operating voltage: 10 ... 30 V DC , ripple 10 %_SS, Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit, Output type: 2 switch outputs PNP, NO/NC, programmable, UL approval: cULus Listed, General Purpose. Sensing range: 80 ... 1000 mm. Adjustment range: 120 ... 1000 mm. Dead band: 0 ... 80 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 175 kHz. Response delay: 65 ms minimum195 ms factory setting. LED green: solid: Power-onflashing: Standby mode or program function object detected. LED yellow 1: solid: switching state switch output 1flashing: program function. LED yellow 2: solid: switching state switch output 2flashing: program function. LED red: solid: temperature/program plug not connectedflashing: fault or program function object not detected. Temperature/teach-in connector: Temperature compensation , Switch points programming , output function setting. Operating voltage: 10 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 50 mA. Time delay before availability: ≤ 600 ms. Interface type: RS 232, 9600 Bit/s , no parity, 8 data bits, 1 stop bit. Synchronization: bi-directional0 level -UB...+1 V1 level: +4 V...+UB input impedance: > 12 KOhmsynchronization pulse: ≥ 100 µs, synchronization interpulse period: ≥ 2 ms. Synchronization frequency: . Common mode operationmax. 30 HzMultiplex operation≤ 30 Hz / n , n = number of sensors , n ≤ 5: . Common mode operation: max. 30 Hz. Multiplex operation: ≤ 30 Hz / n , n = number of sensors , n ≤ 5. Output type: 2 switch outputs PNP, NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2.5 V. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 2.5 Hz. Range hysteresis: 1 % of the adjusted operating range (default settings), programmable. Temperature influence: ≤ 2 % from full-scale value (with temperature compensation)≤ 0.2 %/K (without temperature compensation). Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 70 °C (32 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug M12 x 1 , 5-pin. Degree of protection: IP65. Material: . HousingStainless steel 1.4305 / AISI 303 O-ring for cover seal: VitonTransducerPTFE (diaphragm surface): . Housing: Stainless steel 1.4305 / AISI 303 O-ring for cover seal: Viton. Transducer: PTFE (diaphragm surface). Mass: 140 g. Dimensions: . Length96 mmDiameter30 mm: . Length: 96 mm. Diameter: 30 mm. Output 1: Switching point: 120 mm output function: Switch point operation mode output behavior: NO contact. Output 2: Switching point: 1000 mm output function: Switch point operation mode output behavior: NO contact

Brand	Pepperl Fuchs
Lifecycle status	active
