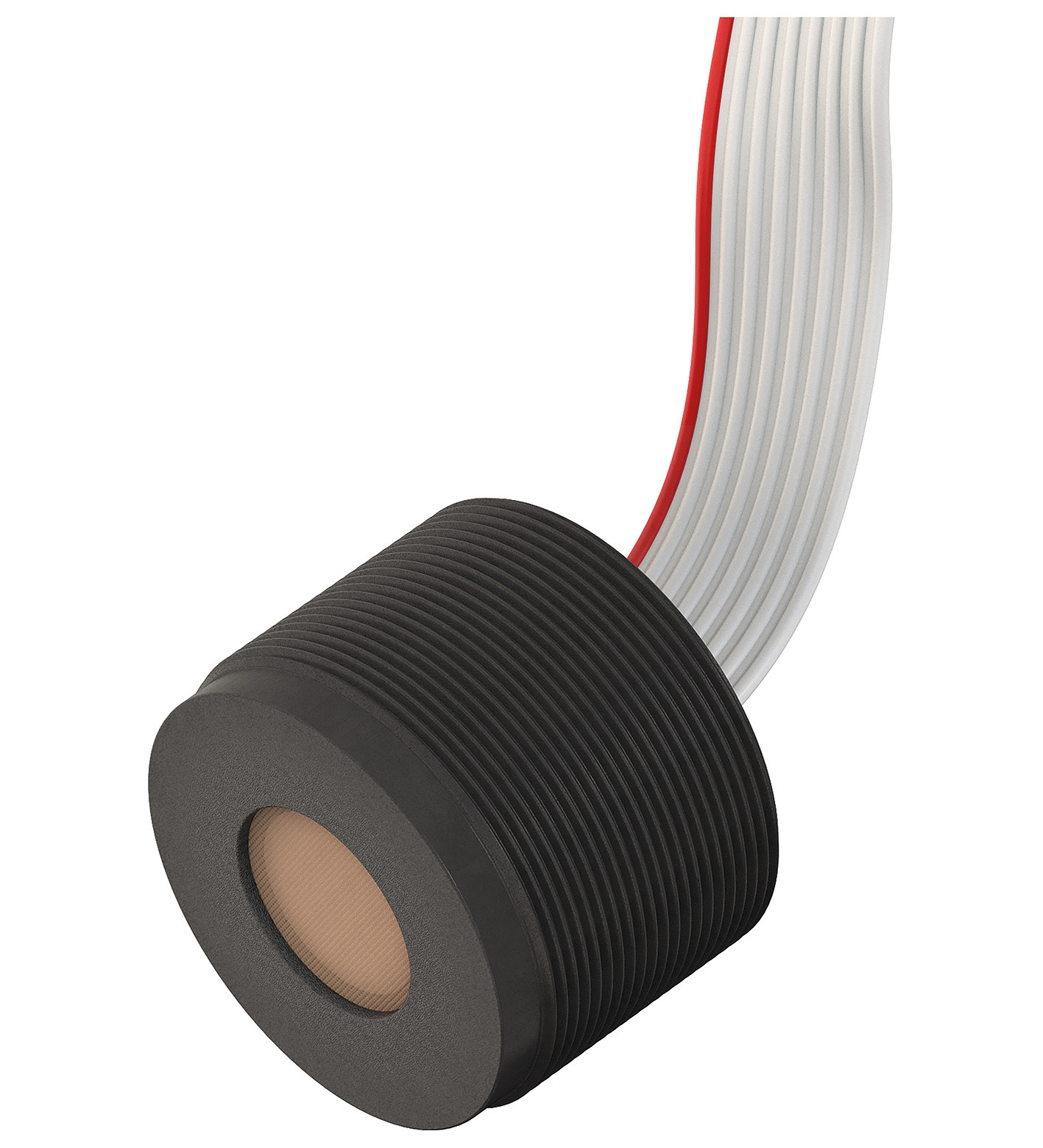

UCC2500-50GK-B26-8MOL-Y
Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, Power save mode, Series: ultrasonic module, Operating voltage: for UART and PWM operation: <BR>U<sub>UART/PWM</sub> = 2.5 ......
Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, Power save mode, Series: ultrasonic module, Operating voltage: for UART and PWM operation: <BR>U<sub>UART/PWM</sub> = 2.5 ... 5 V DC, typical 3.3 V <BR>for LIN operation: <BR>U<sub>LIN</sub> = 8 ... 18 V DC, typical 12 V, Interface type: Physical LIN interface, Interface type: UART 3.3V, Output type: PWM output (PNP) , deactivated, Connection type: fixed cable with plug, Housing: PBT, Connector: Molex connector 70107-0007. Sensing range: 150 ... 2500 mm. Dead band: 0 ... 150 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 120 kHz. Operating voltage: for UART and PWM operation: UUART/PWM = 2.5 ... 5 V DC, typical 3.3 V for LIN operation: ULIN = 8 ... 18 V DC, typical 12 V. No-load supply current: ≤ 60 mA at 3.3 V DC ≤ 20 mA at 12 V DC. Quiescent current indication: < 3 µA during standby mode at UART- and PWM operation. Power consumption: ≤ 250 mW in the measurement operating mode. Time delay before availability: ≤ 70 ms. Interface type: Physical LIN interface. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 55 ms. Resolution: 10 mm (corresponding to 1 LSB). Interface type: UART 3.3V. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 55 ms. Resolution: 10 mm (corresponding to 1 LSB). Input type: Standby active. Signal level: low: 0 ... 0.8 V. Output type: PWM output (PNP) , deactivated. Electromagnetic compatibility: . Directive 2014/30/EUEN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.: . Directive 2014/30/EU: EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP66 / IP67 ( connector excluded ). Material: . HousingPBTTransducerepoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated: . Housing: PBT. Transducer: epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated. Connector: Molex connector 70107-0007. Number of pins8: . Number of pins: 8. Cable: . LengthL3000 mm ± 50 mm: L. Length: 3000 mm ± 50 mm. Mass: 142 g. Dimensions: . Height37 mmWidth50 mmLength50 mm: . Height: 37 mm. Width: 50 mm. Length: 50 mm. Default setting: Address setting 7 Temperature compensation active. Output: PWM output (PNP) , deactivated. Beam width: wide. Scope of delivery: 2 nuts plastic
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
