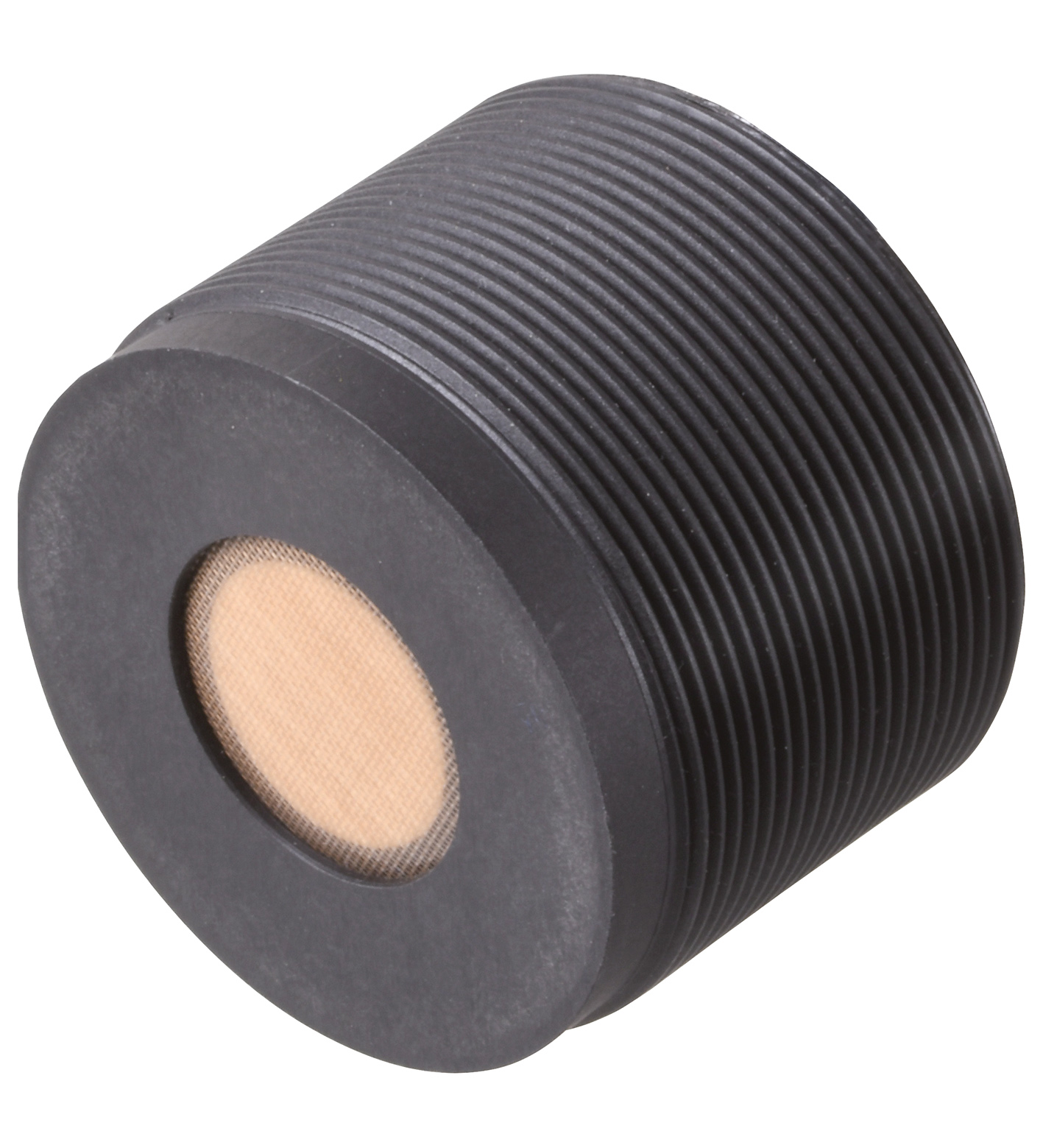

UCC4000-50GK-B26-0,15M-Y

Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, Physical LIN interface, Series: -50GK, Operating voltage: 8 ... 18 V DC , ripple 10 %_SS, Interface type: Physical...

Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, Physical LIN interface, Series: -50GK, Operating voltage: 8 ... 18 V DC , ripple 10 %_SS, Interface type: Physical LIN interface, Connection type: fixed cable with plug, Housing: PBT. Sensing range: 250 ... 4000 mm. Dead band: 0 ... 250 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 75 kHz. Operating voltage: 8 ... 18 V DC , ripple 10 %SS. No-load supply current: ≤ 20 mA at 12 V DC. Power consumption: ≤ 250 mW in the measurement operating mode. Time delay before availability: ≤ 95 ms. Interface type: Physical LIN interface. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 80 ms. Resolution: 2.5 mm. Repeat accuracy: ≤ 0.1 % of full-scale value. Temperature influence: 3 % of full-scale value over the entire temperature range. Electromagnetic compatibility: . Directive 2014/30/EUEN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.: . Directive 2014/30/EU: EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP66 / IP67 ( connector excluded ). Material: . HousingPBTTransducerepoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated: . Housing: PBT. Transducer: epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated. Connector: . TypeJST connector: PHR-3Number of pins3: . Type: JST connector: PHR-3. Number of pins: 3. Cable: . Cable diameter3 x 0.25 mm2MaterialPVCLengthL150 mm: . Cable diameter: 3 x 0.25 mm2. Material: PVC. Length: 150 mm. Mass: 100 g. Dimensions: . Height37 mmWidth50 mmLength50 mm: . Height: 37 mm. Width: 50 mm. Length: 50 mm. Output: Temperature compensation Address setting 7. Scope of delivery: 1 Nut plastic

Brand	Pepperl Fuchs
Lifecycle status	active
