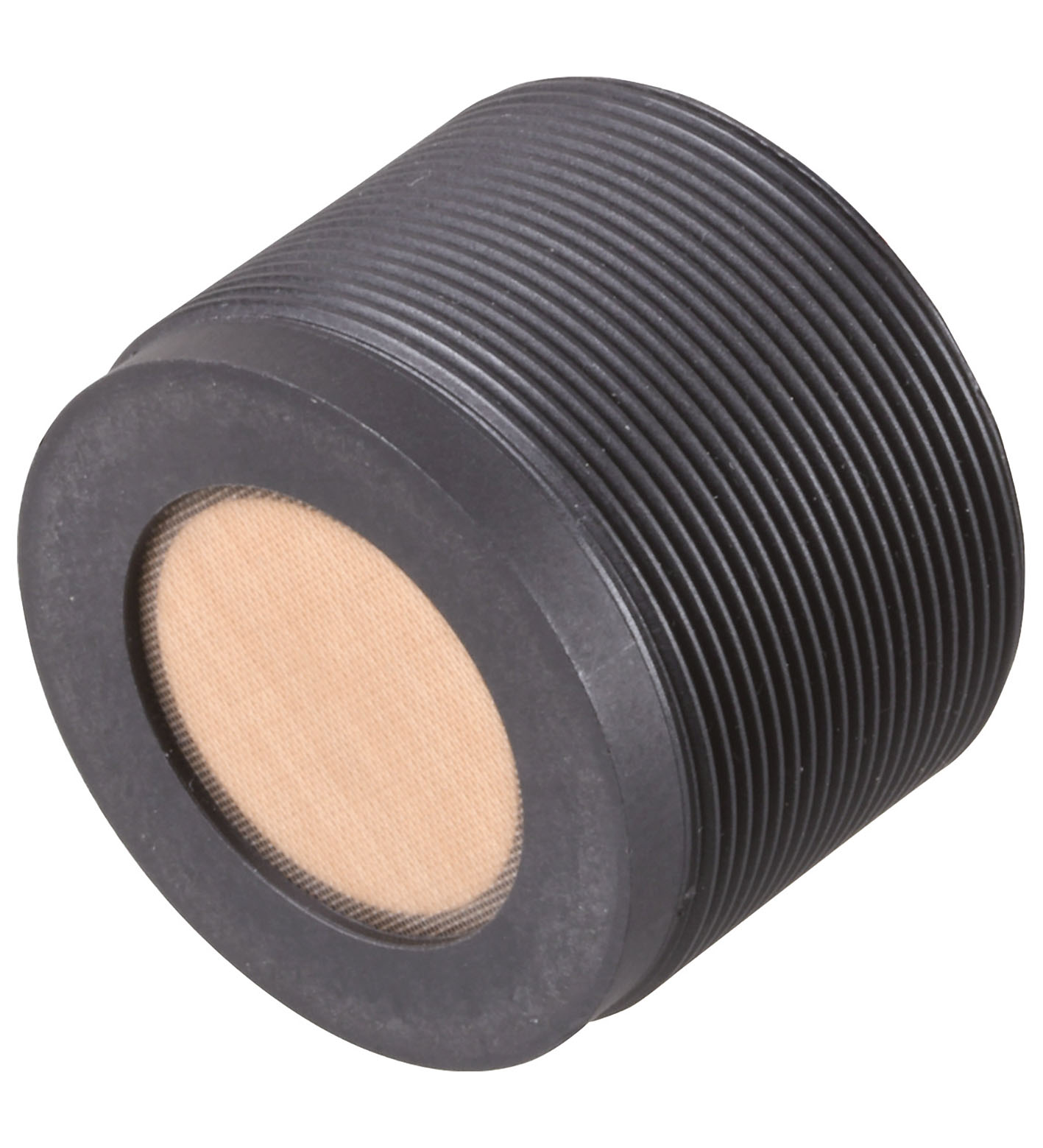

UCC4000-50GK-B26-V15-Y70169750
Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, M12 male connector, Series: ultrasonic module, Operating voltage: 2.5 ... 5 V DC <br>, Interface type: Physical LIN interface...
Ultrasonic sensor. Single head system, Thread M50, PTFE coated transducer, M12 male connector, Series: ultrasonic module, Operating voltage: 2.5 ... 5 V DC <br>, Interface type: Physical LIN interface, Output type: PWM output (PNP) , not short-circuit protected, UL approval: UL Recognized , General purpose , Class 2 power source, Connection type: Connector plug, Housing: PBT, Threading: M12 x 1. Sensing range: 250 ... 4000 mm. Dead band: 0 ... 250 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 75 kHz. Operating voltage: 2.5 ... 5 V DC. No-load supply current: ≤ 60 mA at 3.3 V DC. Quiescent current indication: < 3 µA In standby mode. Power consumption: ≤ 250 mW in the measurement operating mode. Time delay before availability: ≤ 95 ms. Interface type: Physical LIN interface. Transfer rate: 19.2 kBit/s (8N1). Cycle time: 80 ms. Resolution: 16 mm (corresponding to 1 LSB). Input type: Standby active. Signal level: low: 0 ... 0.8 V. Output type: PWM output (PNP) , not short-circuit protected. Resolution: pulse length 10 µs /cm. Output current: max. 10 mA. Temperature influence: 3 % of full-scale value over the entire temperature range. Electromagnetic compatibility: . Directive 2014/30/EUEN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.: . Directive 2014/30/EU: EN IEC 60947-5-2:2020 : chapter 8.2.6.2.2, 8.2.6.2.3, 8.2.6.3 The sensor is designed to be supplied by a battery. The sensor signals are further processed in a control unit, which is also responsible for EMC protection.. UL approval: UL Recognized , General purpose , Class 2 power source. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP67. Material: . HousingPBTTransducerepoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated: . Housing: PBT. Transducer: epoxy resin/hollow glass bead mixture; Polyurethane foam, PTFE coated. Connector: . ThreadingM12 x 1Number of pins5: . Threading: M12 x 1. Number of pins: 5. Mass: 115 g. Dimensions: . Height54 mmWidth50 mmLength50 mm: . Height: 54 mm. Width: 50 mm. Length: 50 mm. Default setting: Temperature compensation Address setting 7. Beam width: wide. Scope of delivery: 2 nuts plastic
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
