UDC-18GM-400-3E2

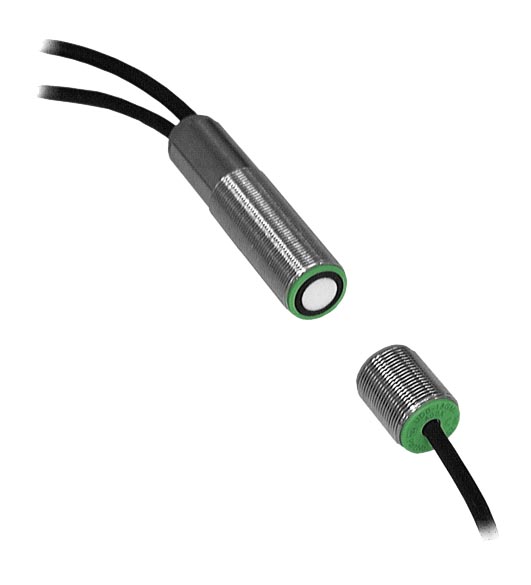

Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, No teach-in required, Function indicators visible from all directions,...
Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, preferably papers, No teach-in required, Function indicators visible from all directions, Sensing range: 20 ... 60 mm , optimal distance: 45 mm, Thread mold: M18, Construction type: Cylindrical, thread, Series: UDC-18GM, Operating voltage: 18 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 3 switch outputs PNP, NO, UL approval: cULus Listed, General Purpose, Class 2 Power Source. Sensing range: 20 ... 60 mm , optimal distance: 45 mm. Transducer frequency: 395 kHz. LED green: indication: single sheet detected. LED yellow: indication: no sheet detected (Air). LED red: indication: double sheet detected. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: < 80 mA. Time delay before availability: < 500 ms. Input type: Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB. Pulse length: ≥ 100 ms. Impedance: ≥ 4 kΩ. Output type: 3 switch outputs PNP, NO. Rated operating current: 3 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 2 V. Switch-on delay: approx. 15 ms (shorter response time on request). Switch-off delay: approx. 15 ms (shorter response time on request). Pulse extension: min. 120 ms programmable. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP67. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 150 g. Dimensions: . Length74 mmDiameter18 mm: . Length: 74 mm. Diameter: 18 mm. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
