UDC-30GM-085-3E3

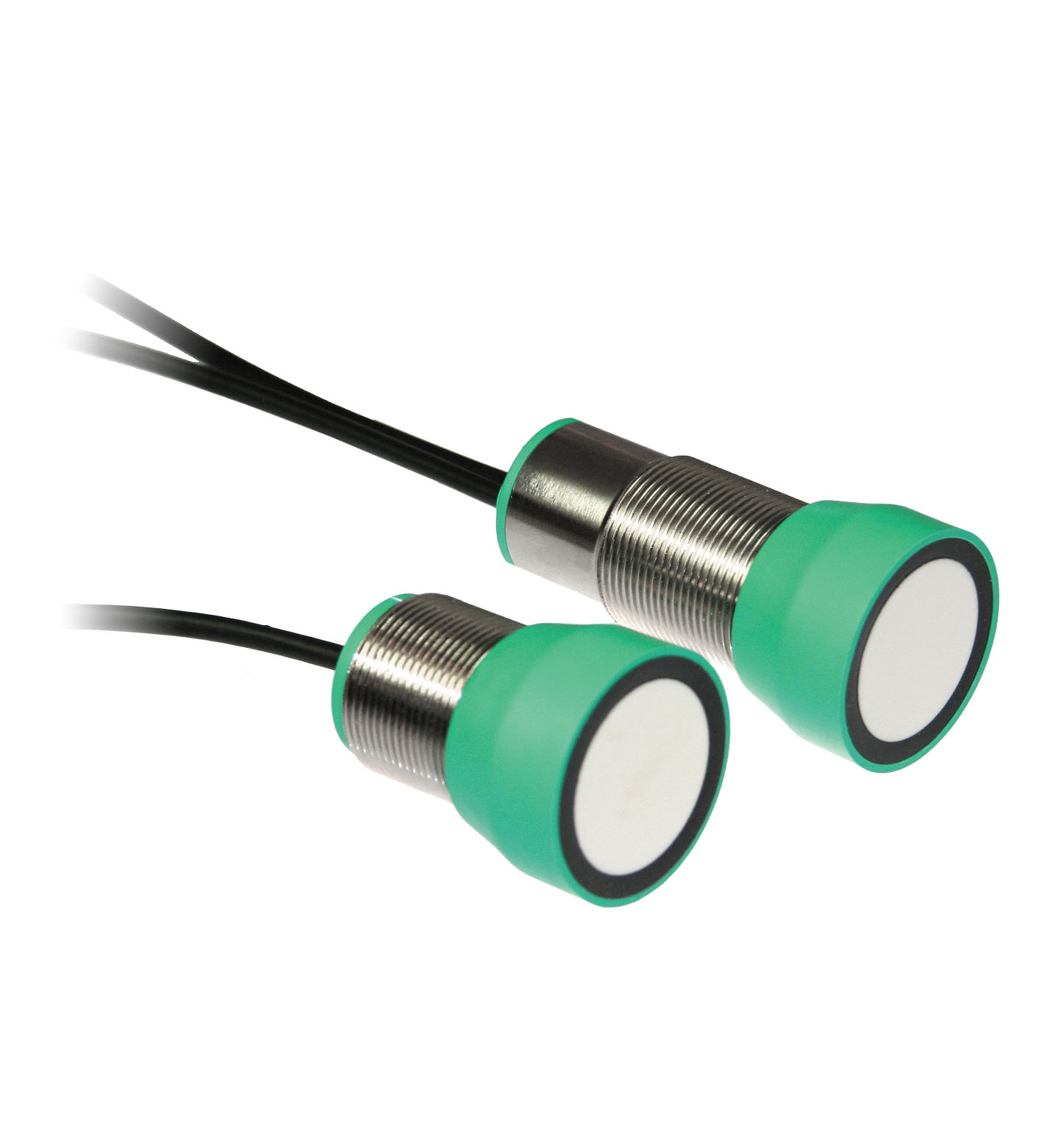

Double material sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, No teach-in required, Insensitive to printing, colors, and shining surfaces, Sensing ra...
Double material sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, No teach-in required, Insensitive to printing, colors, and shining surfaces, Sensing range: 50 ... 150 mm , optimal distance: 80 mm, Thread mold: M30, Construction type: Cylindrical, thread, Series: UDC-30GM, Operating voltage: 18 ... 30 V DC , ripple 10 %<sub>SS</sub>, Output type: 3 switch outputs PNP, NC, UL approval: cULus Listed, General Purpose, Class 2 Power Source. Sensing range: 50 ... 150 mm , optimal distance: 80 mm. Transducer frequency: 85 kHz. LED green: Display: single-layer material detected. LED yellow: Display: no material (air). LED red: Display: 2-layer or multi-layer material detected. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: < 200 mA. Time delay before availability: < 500 ms. Input type: Function input 0-level: -UB ... -UB + 1V1-level: +UB - 1 V ... +UB. Pulse length: ≥ 100 ms. Function: in normal operation mode, the function input has to be connected with UB+ or UB-. Impedance: ≥ 4 kΩ. Output type: 3 switch outputs PNP, NC. Rated operating current: 3 x 100 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Switch-on delay: approx. 30 ms. Switch-off delay: approx. 30 ms. Pulse extension: min. 120 ms programmable. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: cable PVC , 2 m. Core cross section: 0.14 mm2. Degree of protection: IP65. Material: . Housingnickel plated brass; plastic components: PBTTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: nickel plated brass; plastic components: PBT. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Mass: 300 g. Dimensions: . Length90 mmDiameter40 mm: . Length: 90 mm. Diameter: 40 mm. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
