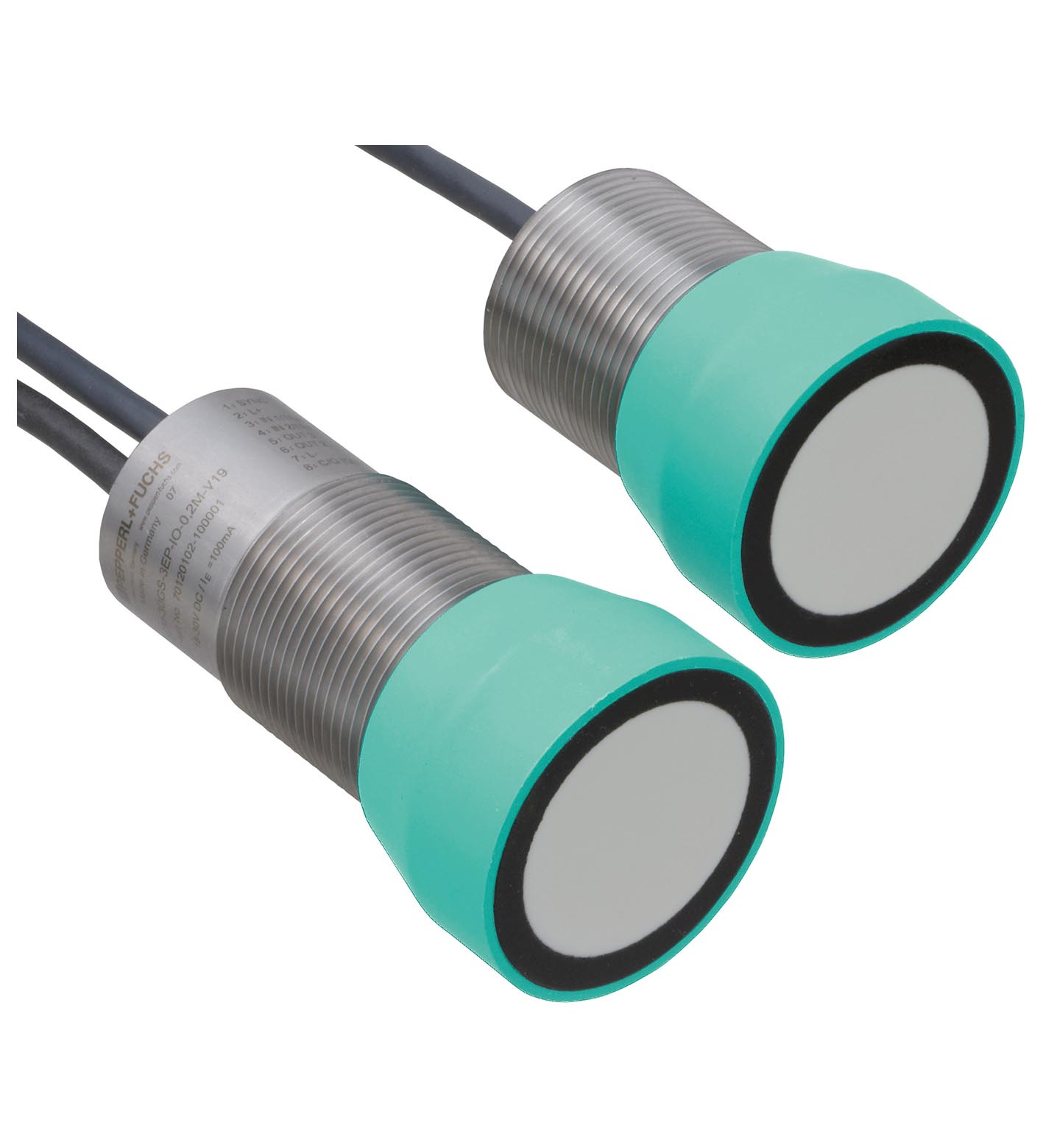

UDC-30GS-3EP-IO-0,2M-V19

Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, Insensitive to printing, colors, and shining surfaces, Perpendicular or inclined sensor mo...

Double sheet sensor. Ultrasonic system for reliable detection of no, one, or two overlapping sheet materials, Insensitive to printing, colors, and shining surfaces, Perpendicular or inclined sensor mounting relative to the sheet plane possible, Sensing range: 50 ... 150 mm , optimal distance: 80 mm, Thread mold: M30, Construction type: Cylindrical, thread, Series: UDC-30GS, Operating voltage: 18 ... 30 V DC , ripple 10 %_SS, Interface type: IO-Link. Sensing range: 50 ... 150 mm , optimal distance: 80 mm. Transducer frequency: approx. 85 kHz. Non-volatile memory: EEPROM. Write cycles: 300000. LED green: indication: single sheet detected flashing (1 Hz) - standby mode flashing with short break (1 Hz) - IO-Link mode. LED yellow: indication: no sheet detected (Air). LED red: indication: double sheet detected flashing: device error. Operating voltage: 18 ... 30 V DC , ripple 10 %SS. No-load supply current: ≤ 100 mA. Power consumption: ≤ 1500 mW. Time delay before availability: ≤ 300 ms. Interface type: IO-Link. IO-Link revision: 1.1. Device profile: Identification and Diagnosis - I&D. Process data: Input: 16 Bit - measurement value 8 Bit - selected threshold set 2 Bit - switching signals 3 Bit output: 8 Bit - threshold set 2 Bit - disable transducer 1 Bit. Vendor ID: 1 (0x0001). Device ID: 3148293 (0x300A05). Transfer rate: COM1 (4.8 kbits/s). Min. cycle time: 22.4 ms. SIO mode support: yes. Compatible master port type: Class A (use adapter cable listed in accesories) Class B (use 3-pole adapter or 3-wire cable). Designation: SYNC. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level2.5 V ... UBInput impedance> 22 kΩOutput currentcurrent source < 2.5 mAPulse length0.4 ... 6 ms with external control, low active: . 0 Level: 0 ... 1 V. 1 Level: 2.5 V ... UB. Input impedance: > 22 kΩ. Output current: current source < 2.5 mA. Pulse length: 0.4 ... 6 ms with external control, low active. Synchronization frequency: . Common mode operation≤ 140 HzMultiplex operation≤ 140 Hz /n, n = number of sensors , n ≤ 10: . Common mode operation: ≤ 140 Hz. Multiplex operation: ≤ 140 Hz /n, n = number of sensors , n ≤ 10. Designation: IN2/FEEDBACK. Input/output type: input or output programmable via IO-Link : input for selection of a threshold set (factory default) output as feedback output. Input type: digital input. Signal0-level: 0 ... + 1V1-level: +UB - 1 V ... +UBInput impedance≥ 60 kΩPulse length≥ 100 ms: . Signal: 0-level: 0 ... + 1V1-level: +UB - 1 V ... +UB. Input impedance: ≥ 60 kΩ. Pulse length: ≥ 100 ms. Output type: PNP. Rated operating currentIe8 mAVoltage drop< 3 VFusingreverse polarity protected , overload and short-circuit protected: Ie. Rated operating current: 8 mA. Voltage drop: < 3 V. Fusing: reverse polarity protected , overload and short-circuit protected. Designation: IN1/TEACH. Input type: 0-level: 0 ... + 1V1-level: +UB - 1 V ... +UB. Pulse length: ≥ 100 ms. Impedance: ≥ 60 kΩ. Designation: OUT 1 ... 3. Number: 3. Output function: OUT 1: single sheet detected OUT 2: double sheet detected OUT 3: no sheet detected (air). Output type: Push-pull (4 in 1) output ( Normally open/closed programmable ) output is HIGH when event is detected: NPN = open / PNP = closed. Rated operating current: 100 mA per output. Voltage drop: ≤ 3 V. Switch-on delay: 30 ms (programmable). Switch-off delay: 30 ms (programmable). Pulse extension: can be activated (100 ms or IO-Link cycle time). Fusing: reverse polarity protected , overload and short-circuit resistant. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9 / IO-Link V1.1.3: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9 / IO-Link V1.1.3. UL approval: cULus Listed, General Purpose, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: 0 ... 60 °C (32 ... 140 °F). Storage temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: fixed cable with plug. Housing length ultrasonic: . Ultrasonic transmitter56 mmUltrasonic receiver78 mm: . Ultrasonic transmitter: 56 mm. Ultrasonic receiver: 78 mm. Housing diameter ultrasonic: . Ultrasonic transmitter30 mmUltrasonic receiver30 mm: . Ultrasonic transmitter: 30 mm. Ultrasonic receiver: 30 mm. Degree of protection: IP65. Material: . HousingStainless steel 1.4305/AISI 303, polyamide plastic partsTransducerepoxy resin/hollow glass sphere mixture; polyurethane foam: . Housing: Stainless steel 1.4305/AISI 303, polyamide plastic parts. Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam. Connector: . ThreadingM12 x 1Number of pins8: . Threading: M12 x 1. Number of pins: 8. Cable: . Cable diameter4.3 mmBending radius5 x diameter , fixed installationMaterialPURColorblackLengthLapprox. 200 mm: . Cable diameter: 4.3 mm. Bending radius: 5 x diameter , fixed installation. Material: PUR. Color: black. Length: approx. 200 mm. Mass: 300 g. Tightening torque, fastening screws: max. 30 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
