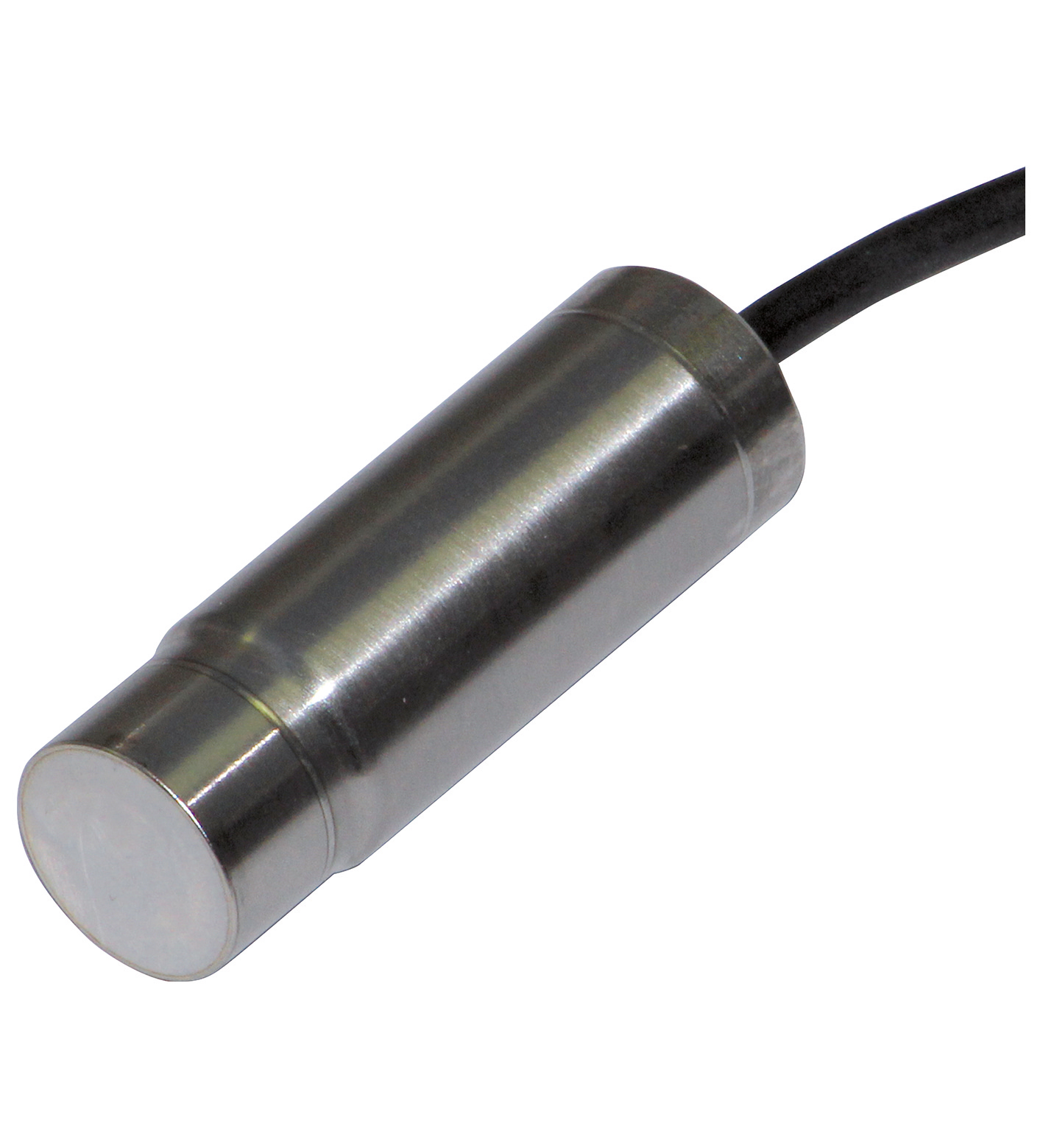

UMB800-18H40-E5-2M

Ultrasonic sensor. Single head system, Front of transducer and housing manufactured entirely from stainless steel, Degree of protection IP68 / IP69K, Short version: 55 mm, Series: UMB-18H, Operating v...

Ultrasonic sensor. Single head system, Front of transducer and housing manufactured entirely from stainless steel, Degree of protection IP68 / IP69K, Short version: 55 mm, Series: UMB-18H, Operating voltage: 10 ... 30 V DC, Output type: 1 switching output E5, PNP NO/NC, programmable, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PUR , 2 m , Polyether based, Housing: Stainless steel 1.4404 / AISI 316L. Sensing range: 70 ... 800 mm. Adjustment range: 90 ... 800 mm. Dead band: 0 ... 70 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 170 kHz. Response delay: approx. 100 ms. Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 15 mA. Input type: 1 program inputoperating distance 1: -UB ... +1 V, operating distance 2: +6 V ... +UB input impedance: > 4,7 kΩ program pulse: ≥ 1 s. Output type: 1 switching output E5, PNP NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 3 V. Repeat accuracy: ± 0.5 % of full-scale value. Switching frequency: ≤ 4 Hz. Range hysteresis: 1 % of the set operating distance. Temperature influence: ± 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable PUR , 2 m , Polyether based. Core cross section: 4 x 0.19 mm2. Degree of protection: IP68 / IP69K. Material: . HousingStainless steel 1.4404 / AISI 316LTransducerStainless steel 1.4435 / AISI 316LSealCable seal : TPU , Elastollan 1185 A10: . Housing: Stainless steel 1.4404 / AISI 316L. Transducer: Stainless steel 1.4435 / AISI 316L. Seal: Cable seal : TPU , Elastollan 1185 A10. Mass: 90 g. Dimensions: . Length55 mmDiameter18 mm: . Length: 55 mm. Diameter: 18 mm. Output: Switch point A1: 90 mm Switch point A2: 800 mm Output mode: Window mode Output logic: normally open

Brand	Pepperl Fuchs
Lifecycle status	active
