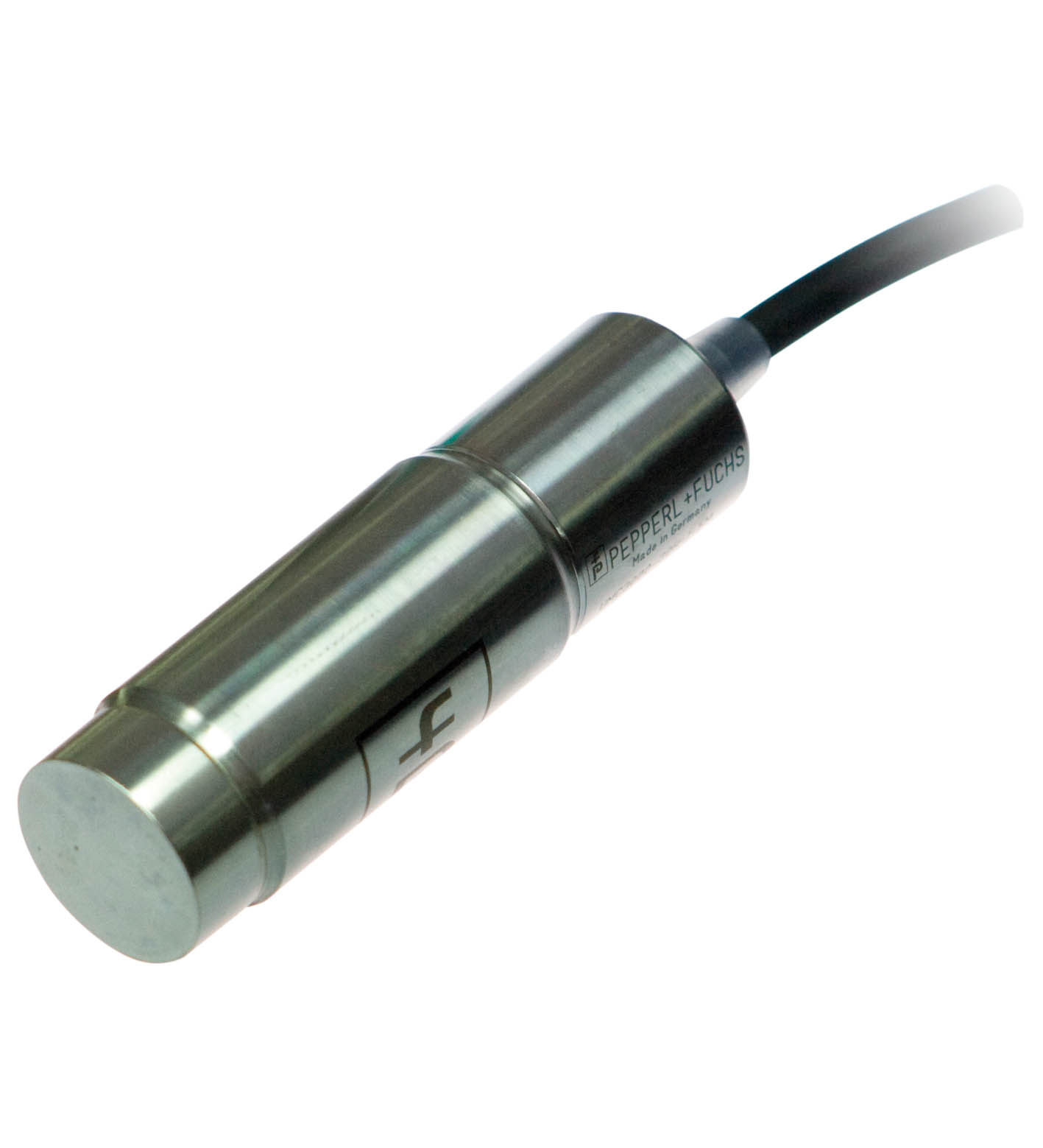

UMC3000-30H-E5-5M

Ultrasonic sensor. Single head system, Front of transducer and housing manufactured entirely from stainless steel, Degree of protection IP68 / IP69K, Programmable via DTM with PACTWARE, Series: UMC-30...

Ultrasonic sensor. Single head system, Front of transducer and housing manufactured entirely from stainless steel, Degree of protection IP68 / IP69K, Programmable via DTM with PACTWARE, Series: UMC-30H, Operating voltage: 10 ... 30 V DC, Output type: 1 switching output E5, PNP NO/NC, programmable, CCC approval: CCC approval / marking not required for products rated ≤36 V, Connection type: cable PUR , 5 m, Housing: Stainless steel 1.4404 / AISI 316L <BR>LED window: VMQ Elastosil LR 3003/Shore 50 A. Sensing range: 200 ... 3000 mm. Adjustment range: 240 ... 3000 mm. Dead band: 0 ... 200 mm. Standard target plate: 100 mm x 100 mm. Transducer frequency: approx. 100 kHz. Response delay: ≤ 200 ms. LED green: Operating display. LED yellow: switching state. LED red: error. Operating voltage: 10 ... 30 V DC. No-load supply current: ≤ 50 mA. Input/output type: 1 synchronization connection, bidirectional. 0 Level0 ... 1 V1 Level4 V ... UBInput impedance> 12 kΩOutput current< 12 mAPulse length≥ 200 µsPulse interval≥ 2 ms: . 0 Level: 0 ... 1 V. 1 Level: 4 V ... UB. Input impedance: > 12 kΩ. Output current: < 12 mA. Pulse length: ≥ 200 µs. Pulse interval: ≥ 2 ms. Synchronization frequency: . Common mode operation≤ 20 HzMultiplex operation≤ 20/n Hz, n = number of sensors n ≤ 10 (factory setting: 5 ): . Common mode operation: ≤ 20 Hz. Multiplex operation: ≤ 20/n Hz, n = number of sensors n ≤ 10 (factory setting: 5 ). Input type: 1 program input. Level (switch point 1): 0 ... 1 V. Level (switch point 2): 4 V ... UB. Input impedance: > 10 kΩ. Pulse length: 2 ... 5 s. Output type: 1 switching output E5, PNP NO/NC, programmable. Rated operating current: 200 mA , short-circuit/overload protected. Voltage drop: ≤ 2 V. Repeat accuracy: ≤ 0.1 % of full-scale value. Switching frequency: ≤ 2.8 Hz. Range hysteresis: programmable , preset to 1 mm. Temperature influence: < 1.5 % of full-scale value. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: cable PUR , 5 m. Core cross section: 5 x 0.5 mm2. Degree of protection: IP68 / IP69K. Material: . HousingStainless steel 1.4404 / AISI 316L LED window: VMQ Elastosil LR 3003/Shore 50 ATransducerStainless steel 1.4435 / AISI 316L: . Housing: Stainless steel 1.4404 / AISI 316L LED window: VMQ Elastosil LR 3003/Shore 50 A. Transducer: Stainless steel 1.4435 / AISI 316L. Mass: 425 g. Dimensions: . Length100 mmDiameter30 mm: . Length: 100 mm. Diameter: 30 mm. Output: near switch point: 240 mm far switch point: 3000 mm output function: Window mode output behavior: NO contact. Supplementary information: Switch settings of the external programming adapter: "output load": pull-down "output logic": inv

Brand	Pepperl Fuchs
Lifecycle status	active
