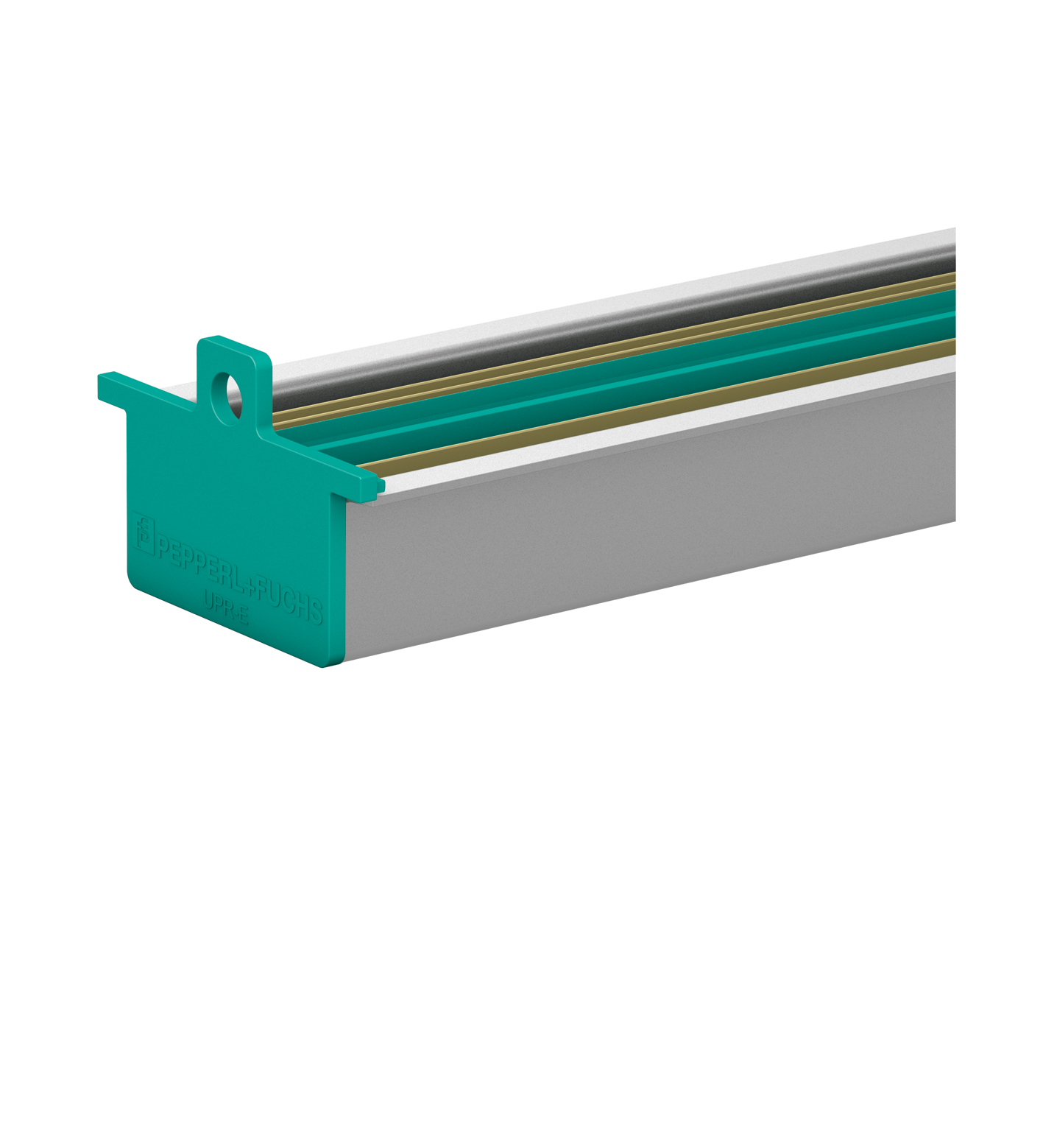

UPR-03

Universal Power Rail. 35 mm DIN mounting rail with 3-conductor insert, Provides DC supply voltage to all equipped K-System modules, Standard length 2 m (6 foot), simple to customize to application spa...

Universal Power Rail. 35 mm DIN mounting rail with 3-conductor insert, Provides DC supply voltage to all equipped K-System modules, Standard length 2 m (6 foot), simple to customize to application space, Eliminates daisy-chains. Rated voltage: 24 V DC. Rated current: 4 A. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Connection: 3 conductors. Supply2 ConductorsFault output1 Conductors: . Supply: 2 Conductors. Fault output: 1 Conductors. Dimensions: 35 x 15 x 2000 mm (1.4 x 0.6 x 78.7 inch) (W x H x L). Height15 mmWidth35 mmLength2000 mm: . Height: 15 mm. Width: 35 mm. Length: 2000 mm. Scope of delivery: - DIN mounting rail UPR-MR- insert UPR-INS-03- cover UPR-COVER - end cap UPR-E

Brand	Pepperl Fuchs
Lifecycle status	active
