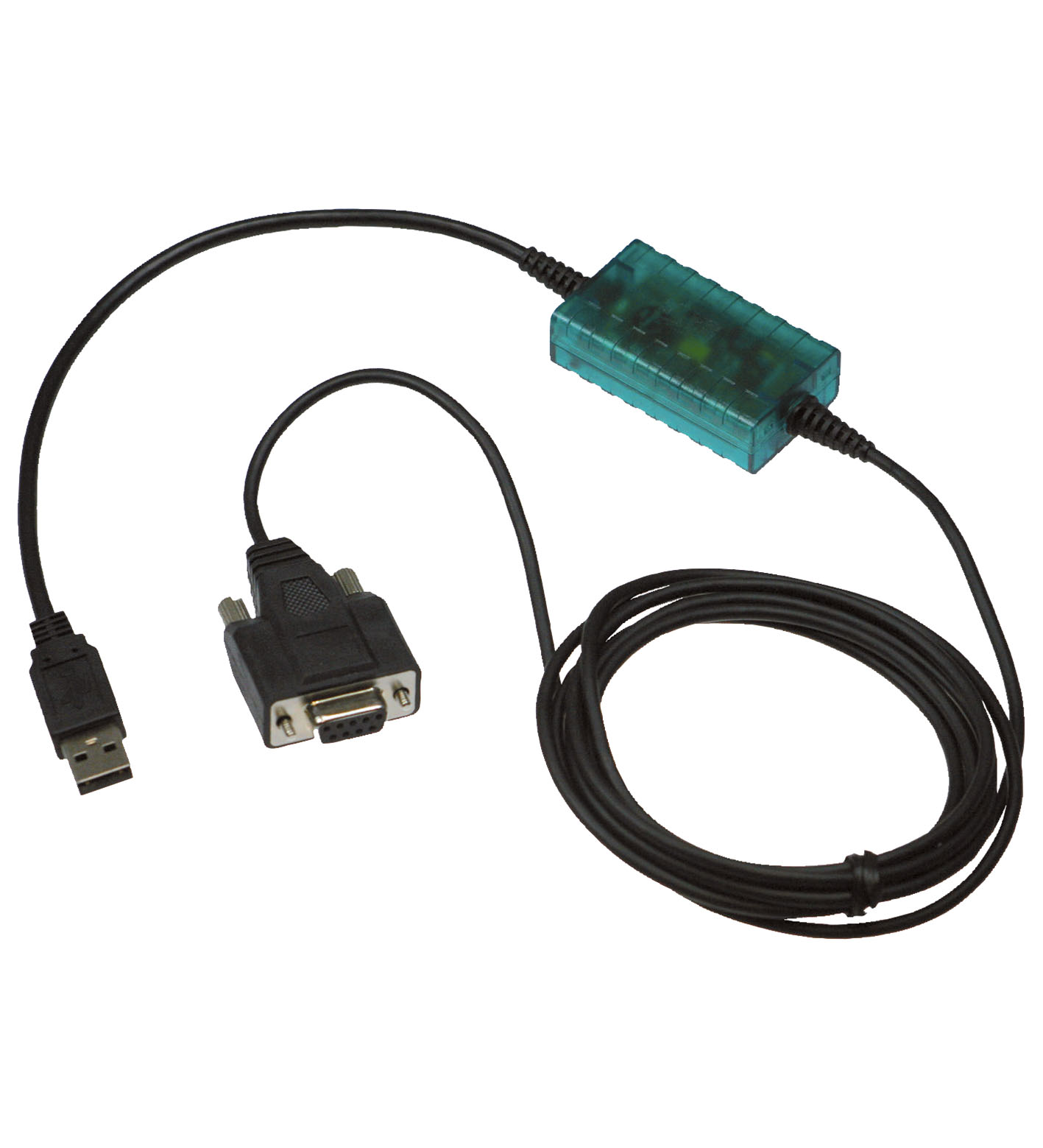

USB-FBPS-1.11.45.NI

USB Fieldbus Power Supply. USB fieldbus power supply for 1 or 2 field devices with D-sub socket for connecting to National Instruments NI PCMCIA FBUS card, Output: min. 11 V/45 mA, For 1...2 devices/t...

USB Fieldbus Power Supply. USB fieldbus power supply for 1 or 2 field devices with D-sub socket for connecting to National Instruments NI PCMCIA FBUS card, Output: min. 11 V/45 mA, For 1...2 devices/test setups, In conjunction with NI PCMCIA-FBUS card, Permitted for Zone 2 operation, For FOUNDATION Fieldbus H1, Device coupler location: non-explosion hazardous area, Instrument location / spur protection: non-explosion hazardous area, Function: Fieldbus Power Supply, Design / Mounting: Handheld/mobile. Design / Mounting: Handheld/mobile. Installation in hazardous area: Zone 2. Connection: USB-Male Connector Typ A (Standard). Rated voltage: typ. 5 V. Rated current: max. 350 mA. Power dissipation: typ. 250 mW. Connection: D-Sub socket 9-pin ; pin 6: Bus + , pin 7: Bus -. Rated voltage: min. 11 V. Rated current: 45 mA. Short-circuit current: typ. 60 mA. Terminating resistor: 50 Ω. LED ERR: red flashing: short-circuit or undervoltage at output. LED PWR: green: Interface Power ON/OK. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: IEC/EN 60529. Fieldbus standard: IEC 61158-2. Ambient temperature: -10 ... 50 °C (14 ... 122 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Pollution degree: max. 2, according to IEC 60664. Connection type: USB-Male Connector Typ A (Standard). Housing: 56 x 32 x 17 mm. Housing material: Polycarbonate. Degree of protection: IP20. Mass: approx. 105 g. Outputs: . VoltageUo17.5 V: Uo. Voltage: 17.5 V. Certificate: PF 08 CERT 1303 X. Marking II 3G Ex nA II T4: . Marking: II 3G Ex nA II T4. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-11:2012 , EN 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
