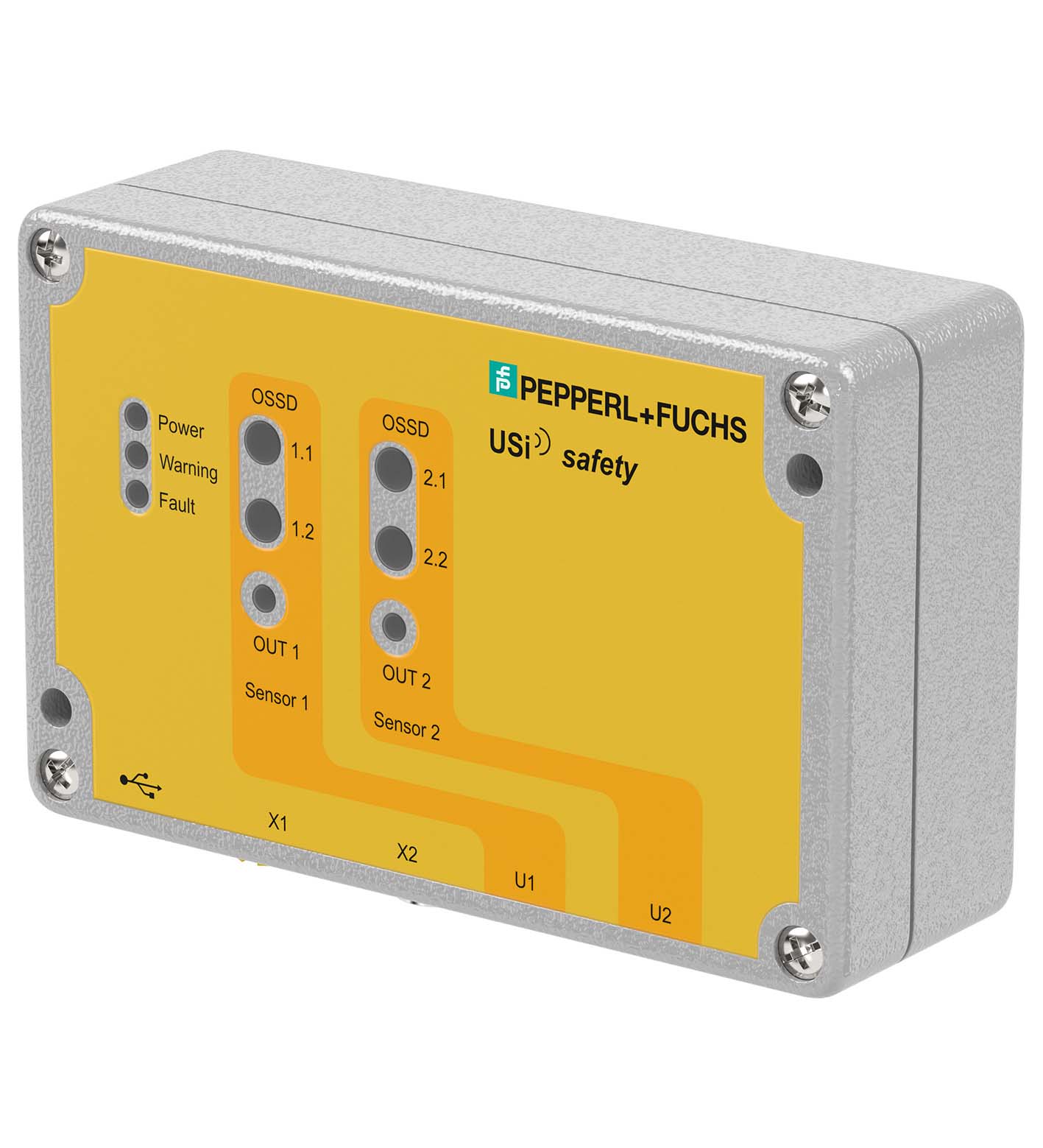

USI-F262-2E5-V19-S2D3

USi-safety evaluation unit. Evaluation unit exclusively for the ultrasonic sensor system USi-safety, Categorie 3 PL d (EN ISO 13849) for each ultrasonic transducer without redundancy, Multiple device...

USi-safety evaluation unit. Evaluation unit exclusively for the ultrasonic sensor system USi-safety, Categorie 3 PL d (EN ISO 13849) for each ultrasonic transducer without redundancy, Multiple device installation possible, no mutual interference (no cross-talk), Safety outputs OSSD, Sensing range: 1 ... 250 cm <BR>typ. 200 cm, Series: USi-safety, Performance level (PL): PL d, Operating voltage: 21 ... 28 V DC <BR>typ. 24 V DC, Interface type: USB 2.0. Type: USi-safety evaluation unit. Sensing range: 1 ... 250 cm typ. 200 cm. Adjustment range: 1 ... 250 cm. Dead band: 1 cm. Object size: typ. ∅ 1 cm. Transducer frequency: typ. 103 kHz. Resolution: 1 cm. Target velocity: axial (max.): typ. 2 m/s (up to 2.5 m/s). Repeat accuracy: ± 0 cm. Hysteresis: typ. 0 cm (0 up to SP1/10). Temperature influence: automatic or manual temperature compensation available , without temperature compensation: 0.17 %/K. Performance level (PL): PL d. Category: Cat. 3. Reaction time: typ. 100 ms ( 99 ... 660 ms ). Recovery time: typ. 990 ms ( 330 ... 3300 ms ). MTTFd: 316 a. Diagnostic Coverage (DC): 87 %. Fusing: 2 A , slow. Operating voltage: 21 ... 28 V DC typ. 24 V DC. No-load supply current: ≤ 150 mA. Power consumption: max. 3.6 W. Interface type: USB 2.0. Input type: 2 inputs for ultrasonic transducers 1 input for temperature sensor. Output type: safety output OSSD Normally closed, Power FET PNP OSSD 1.1 and OSSD 1.2. Switching voltage: max. UB. Switching current: 150 mA per output. Output type: safety output OSSD Normally closed, Power FET PNP OSSD 2.1 and OSSD 2.2. Switching current: 150 mA per output. Output type: Normally open/normally closed switchable, Power FET PNP signal output OUT1. Switching voltage: max. UB. Switching current: 150 mA. Output type: Normally open/normally closed switchable, Power FET PNP signal output OUT2. Switching voltage: max. UB. Switching current: 150 mA. Standard conformity: . StandardsIEC 60947-5-2 IEC 60204-1 EN ISO 13849 IEC 61326-3-1:2007 IEC/CISPR 11 group 1, class A: . Standards: IEC 60947-5-2 IEC 60204-1 EN ISO 13849 IEC 61326-3-1:2007 IEC/CISPR 11 group 1, class A. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 50 °C (-22 ... 122 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP65. Connection: for power supply and outputs: connector plug M12, 8-pin, connection line max. 30 m for temperature sensor: socket M8, 6-pin for ultrasonic transducer: for each socket M8, 3-pin for parameterization: socket Mini USB. Material: . Housingdiecast aluminum: . Housing: diecast aluminum. Mass: 450 g. Dimensions: . Height41 mmWidth91 mmLength125 mm: . Height: 41 mm. Width: 91 mm. Length: 125 mm. Default setting: See the original instructions

Brand	Pepperl Fuchs
Lifecycle status	active
