USI-MH-27X13-H-01

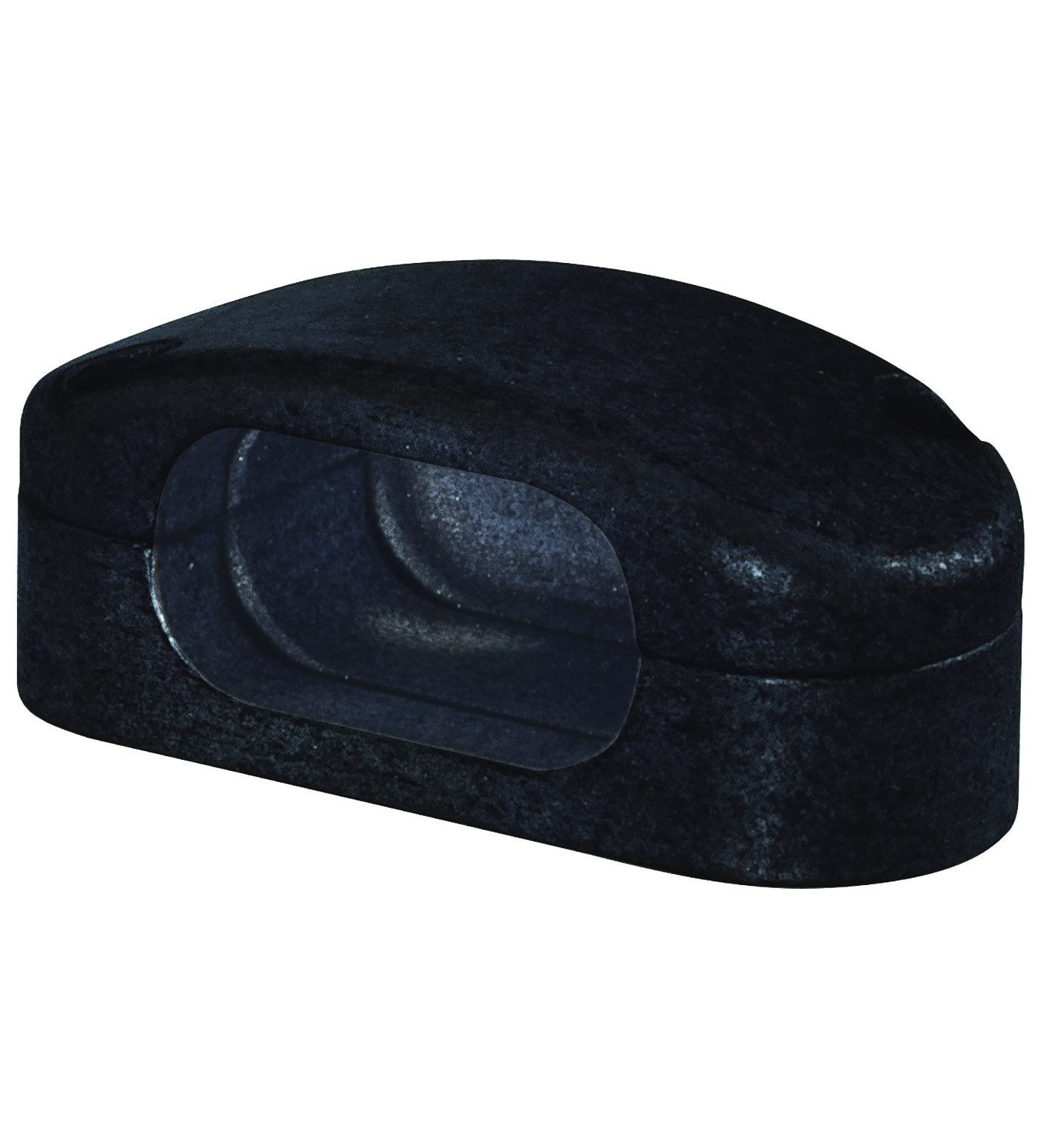

Mounting bracket. Horizontal mounting bracket exclusively for ultrasonic transducers of the USi ultrasonic sensor systems, Screw mounting for simple installation, Robust construction. Ambient temperat...

Mounting bracket. Horizontal mounting bracket exclusively for ultrasonic transducers of the USi ultrasonic sensor systems, Screw mounting for simple installation, Robust construction. Ambient temperature: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Material: . HousingPA12Mounting materials2 x cylinder head screw M5x12 (included with delivery) 2 x cylinder head screw M3x8 (included with delivery): . Housing: PA12. Mounting materials: 2 x cylinder head screw M5x12 (included with delivery) 2 x cylinder head screw M3x8 (included with delivery). Tightening torque, fastening screws: for screw M5 : max. 1.5 Nm for screw M3 : max. 0.5 Nm. Dimensions: 25 mm x 54.3 mm x 22 mm. Height22 mmWidth54.3 mmLength25 mm: . Height: 22 mm. Width: 54.3 mm. Length: 25 mm

Brand	Pepperl Fuchs
Lifecycle status	active
