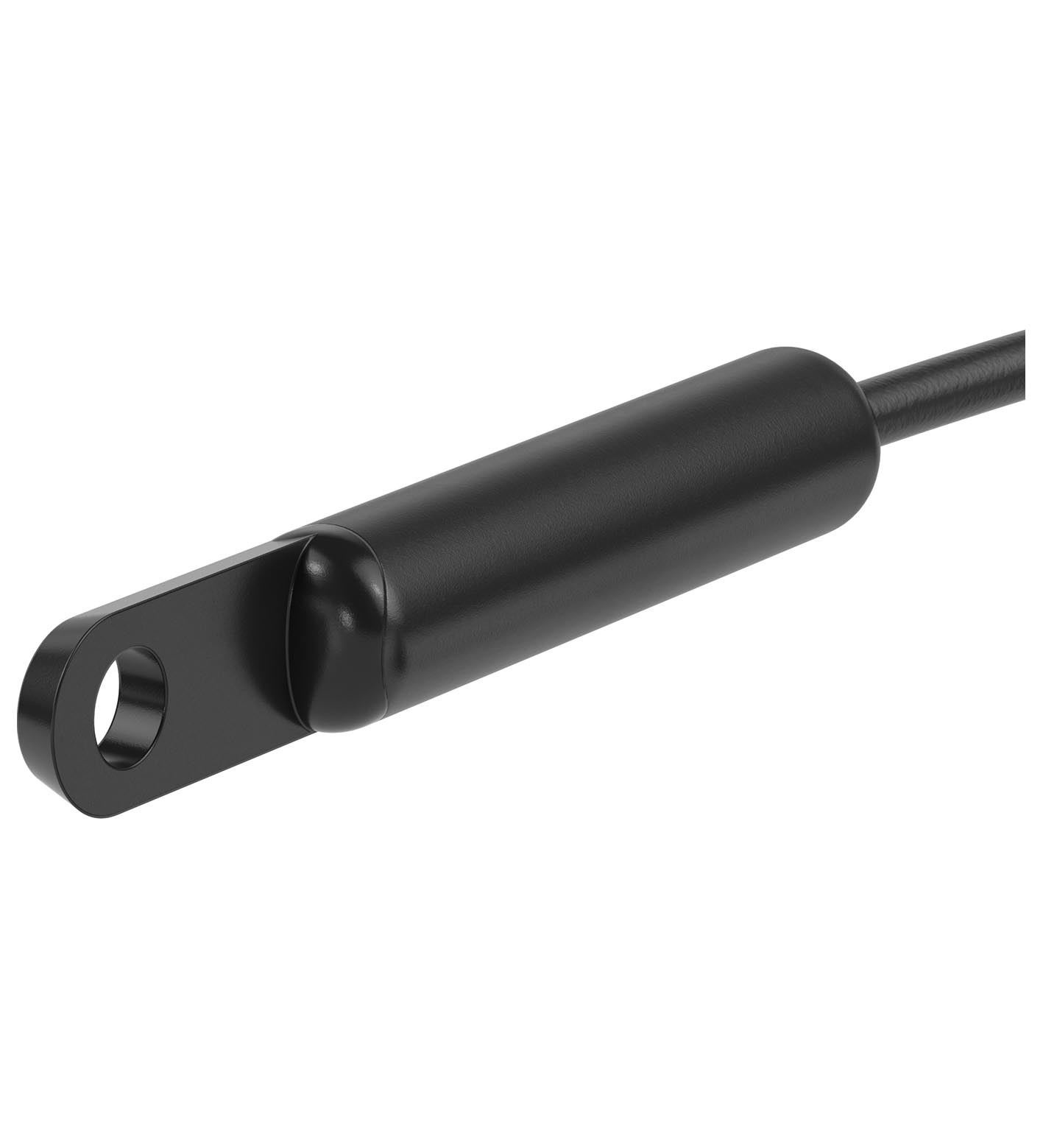

USI-TEMP-1,5M-V312
Temperature sensor. Temperature sensor exclusively for the USi-safety evaluation unit, Compact design, Universal orientation, Mounting holes for simple installation, Ambient temperature: movabl...
Temperature sensor. Temperature sensor exclusively for the USi-safety evaluation unit, Compact design, Universal orientation, Mounting holes for simple installation, Ambient temperature: movable cable: -25 ... 80 °C (-13 ... 176 °F) <BR>cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F), Connection type: fixed cable with plug, Housing: TPU, Threading: M8 x 1. Type: Temperature sensor. Measuring resistor: NTC resistor 4.7 kΩ at 25 °C B value (B25/100) = 3980 K ±3%. Ambient temperature: movable cable: -25 ... 80 °C (-13 ... 176 °F) cable, fixed installation: -40 ... 80 °C (-40 ... 176 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: fixed cable with plug. Degree of protection: IP67. Material: . HousingTPU: . Housing: TPU. Connector: . ThreadingM8 x 1Number of pins6MaterialPUR: . Threading: M8 x 1. Number of pins: 6. Material: PUR. Cable: . Cable diameter3 mmBending radiuscable, fixed installation: > 5 x cable diameter movable cable: > 10 x cable diameterMaterialPURColorblackLengthL1.5 m ± max. 40 mm: . Cable diameter: 3 mm. Bending radius: cable, fixed installation: > 5 x cable diameter movable cable: > 10 x cable diameter. Material: PUR. Color: black. Length: 1.5 m ± max. 40 mm. Mass: 22 g. Dimensions: . Length40 mmDiameter6.5 mm: . Length: 40 mm. Diameter: 6.5 mm
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
