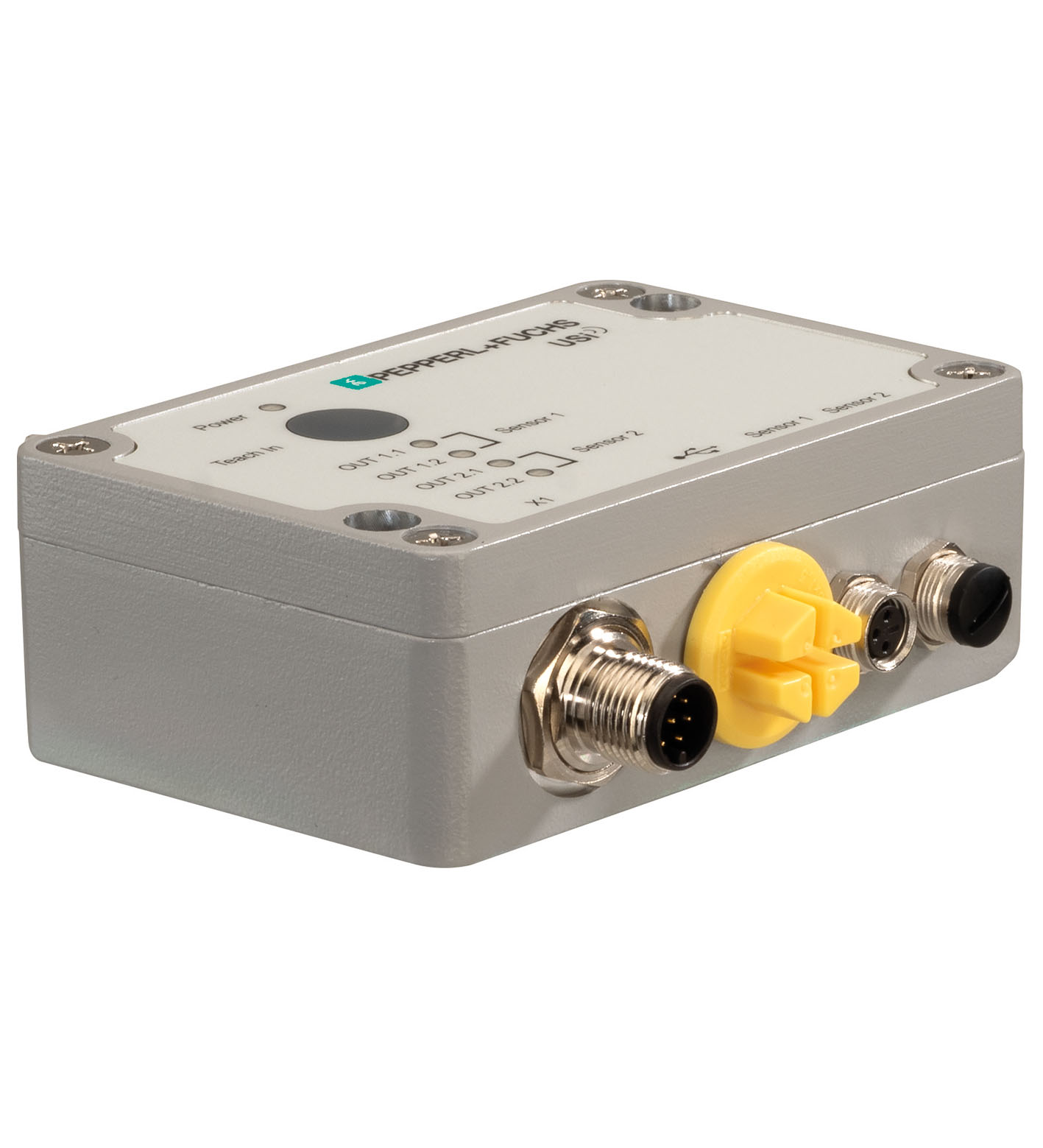

USIS-F264-4E5-V19

USi-industry evaluation unit. Evaluation unit for the ultrasonic sensor system USi-industry with switching outputs (stand-alone device/secondary device), Evaluation unit for ultrasonic transducers wit...

USi-industry evaluation unit. Evaluation unit for the ultrasonic sensor system USi-industry with switching outputs (stand-alone device/secondary device), Evaluation unit for ultrasonic transducers with eliptic sound field, Object detection in the near range, Multiple device installation possible, no mutual interference (no cross-talk), Sensing range: 10 ... 2500 mm <BR>factory setting: 2000 mm, Series: USi-industry, Operating voltage: 9 ... 30 V DC <BR>, Interface type: USB 2.0. Type: USi-industry evaluation unit. Sensing range: 10 ... 2500 mm factory setting: 2000 mm. Adjustment range: 150 ... 2500 mm. Dead band: 0 ... 10 mm. Object size: typ. ∅ 10 mm. Transducer frequency: approx. 103 kHz. Response delay: 10 ... 20000 ms factory setting: 150 ms. Sensor cycle time: 10 ... 200 ms factory setting: 50 ms. Resolution: 1 mm. Target velocity: axial (max.): typ. 2 m/s (up to 2.5 m/s). Repeat accuracy: ± 0.1 % of full-scale value. Temperature influence: automatic or manual temperature compensation available , without temperature compensation: 0.17 %/K. LED green: supply voltage/device status. LED yellow: output states. Button: Teach-in. Operating voltage: 9 ... 30 V DC. No-load supply current: ≤ 160 mA. Power consumption: < 2.5 W. Time delay before availability: ≤ 300 ms. Interface type: USB 2.0. Input type: 2 inputs for ultrasonic transducers 1 digital input. Designation: OUT 1.1. Output type: switching output: PNP Normally open/closed (NO/NC) parameterizable. Voltage drop: ≤ 2.5 V. Switching frequency: 0.05 Hz ... 100 Hz. Off-state current: ≤ 100 µA. Switching voltage: max. UB. Switching current: 100 mA. Designation: OUT 1.2. Output type: switching output: PNP Normally open/closed (NO/NC) parameterizable. Voltage drop: ≤ 2.5 V. Switching frequency: 0.05 Hz ... 100 Hz. Off-state current: ≤ 100 µA. Switching voltage: max. UB. Switching current: 100 mA. Designation: OUT 2.1. Output type: switching output: PNP Normally open/closed (NO/NC) parameterizable. Voltage drop: ≤ 2.5 V. Switching frequency: 0.05 Hz ... 100 Hz. Off-state current: ≤ 100 µA. Switching voltage: max. UB. Switching current: 100 mA. Designation: OUT 2.2. Output type: switching output: PNP Normally open/closed (NO/NC) parameterizable. Voltage drop: ≤ 2.5 V. Switching frequency: 0.05 Hz ... 100 Hz. Off-state current: ≤ 100 µA. Switching voltage: max. UB. Switching current: 100 mA. Standard conformity: . StandardsEN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 55011:2016-04: . Standards: EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 55011:2016-04. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -30 ... 70 °C (-22 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Connection type: Connector plug. Degree of protection: IP65. Connection: for power supply and outputs: connector plug M12, 8-pin, connection line max. 30 m for ultrasonic transducer: for each socket M8, 3-pin for parameterization: socket Mini USB. Material: . Housingdiecast aluminum: . Housing: diecast aluminum. Mass: 250 g. Dimensions: . Height35 mmWidth77 mmLength98 mm: . Height: 35 mm. Width: 77 mm. Length: 98 mm

Brand	Pepperl Fuchs
Lifecycle status	active
