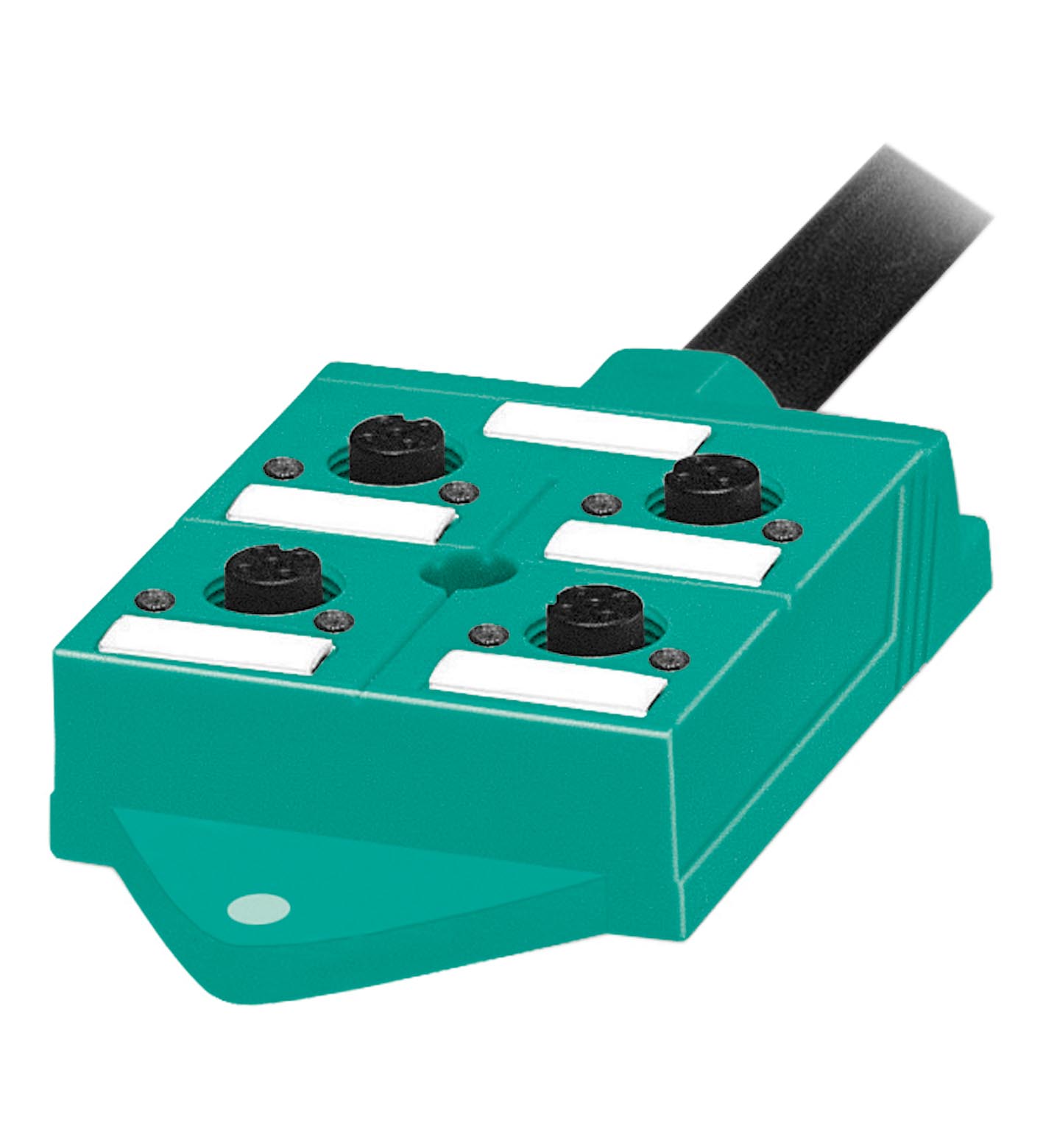

V1-4A-E-5M-PUR

Splitter boxes. Quadruple splitter box with M12 connector with basic cable, NPN. Number of pins: 4. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indication. O...

Splitter boxes. Quadruple splitter box with M12 connector with basic cable, NPN. Number of pins: 4. UL File Number: E191152. LED green: supply voltage each module. LED yellow: I/O status indication. Operating voltage: 24 V DC, max. 30 V DC. Operating current: ≤ 5 mA per channel indication element. Current loading capacity: ≤ 2 A per channel,≤ 4 A per plug-in station,≤ 12 A total current per separator. Number/Type: 4. Standard conformity: . Degree of protectionEN 60529FlammabilityDIN EN 50265-2-1: . Degree of protection: EN 60529. Flammability: DIN EN 50265-2-1. Ambient temperature: -25 ... 75 °C (-13 ... 167 °F) cable, movable installation: -5 ... 80 °C (23 ... 176 °F) cable, fixed installation: -40 ... 90 °C (-40 ... 194 °F). Connection type: 4 x socket M12 x 1 4-pin Master cable. Degree of protection: IP65 / IP67. Material: . ContactsCuSnContact surfaceNi/AuHousingPACablePURSealO-ring: NBR: . Contacts: CuSn. Contact surface: Ni/Au. Housing: PA. Cable: PUR. Seal: O-ring: NBR. Cable: flexible. Sheath diameter8.7 mmBending radius> 10 x cable diameter, movable installationColorblackCoresSignal line (4): 4 x 0.34 mm2 (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm2 (AWG 18)Conductor construction42 x 0.1 mm ∅96 x 0.1 mm ∅LengthL5 m: . Sheath diameter: 8.7 mm. Bending radius: > 10 x cable diameter, movable installation. Color: black. Cores: Signal line (4): 4 x 0.34 mm2 (AWG 22) Supply line (1, 3), PE (5): 3 x 0.75 mm2 (AWG 18). Conductor construction: 42 x 0.1 mm ∅96 x 0.1 mm ∅. Length: 5 m. Mass: approx. 609 g. Flammability: 94 V-0

Brand	Pepperl Fuchs
Lifecycle status	active
